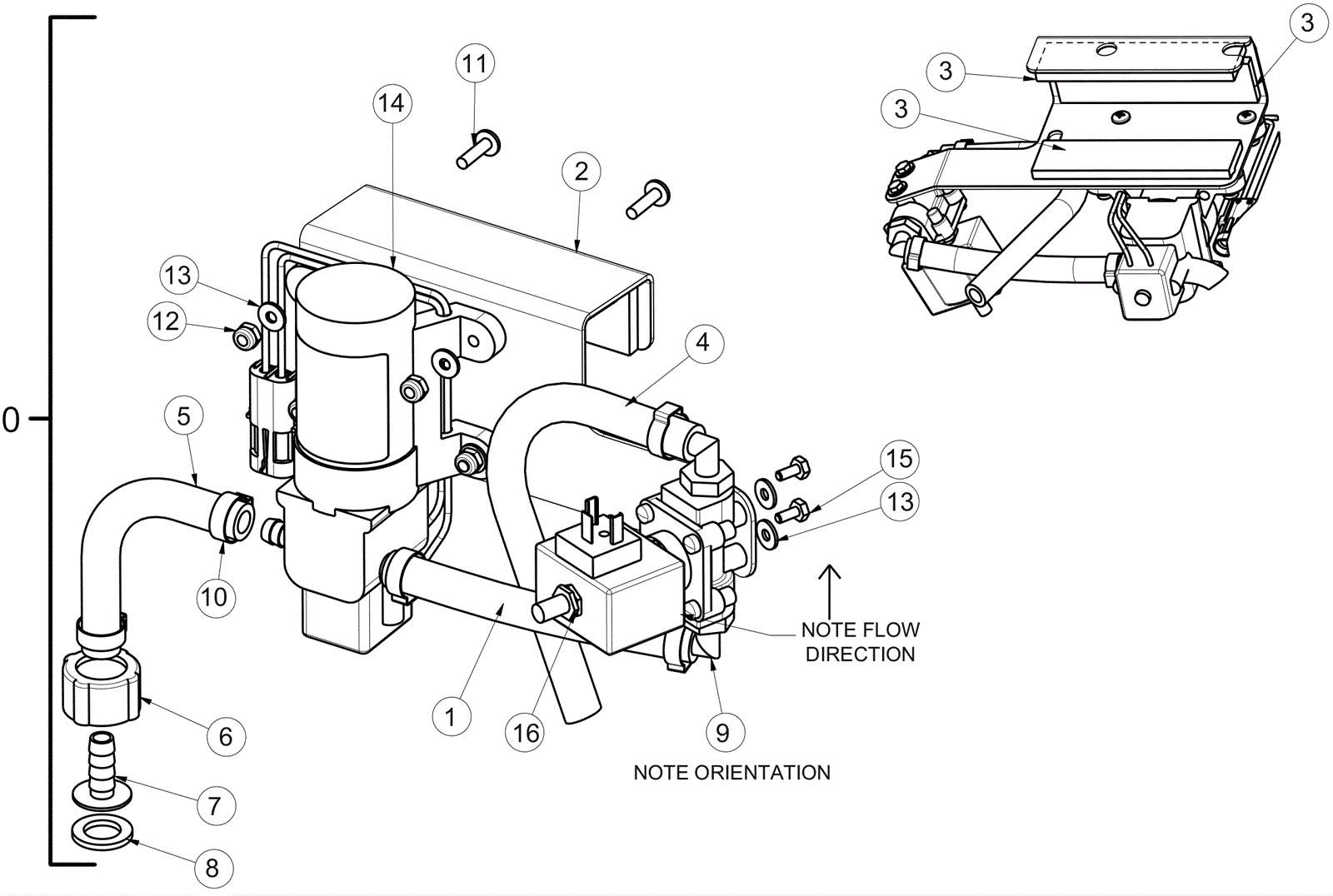

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
174-7235
|
Pump assembly |
1 |
(includes 1-16) |
|
1 |
374-2299
|
Wiire reinforced hose 3/8 X 5.5 inch |
1 |
|
|
2 |
174-7240
|
Pump mount bracket |
1 |
|
|
3 |
174-7241
|
Foam 1/4 x 1 1/4 x 5 inch |
3 |
|
|
4 |
174-8803
|
Wire reinforced hose 3/8 x 31 |
1 |
|
|
5 |
174-0229
|
Hose |
1 |
|
|
6 |
374-2226
|
Fitting |
1 |
|
|
7 |
374-2227
|
Fitting |
1 |
|
|
8 |
374-2228
|
Mesh screen filter |
1 |
|
|
9 |
174-0083
|
90 degree elbow barb |
2 |
(use teflon tape) |
|
10 |
997-2001
|
Hose clamp |
5 |
|
|
12 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
4 |
|
|
13 |
999-0998
|
Washer #10 flat stainless steel |
6 |
|
|
14 |
274-7416
|
24v pump |
1 |
|
|
15 |
999-9104
|
Screw M4-.7 x 10mm hex head stainless steel |
2 |
(apply loctite) |
|
16 |
174-9633
|
24V solenoid valve |
1 |
|
|
