| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

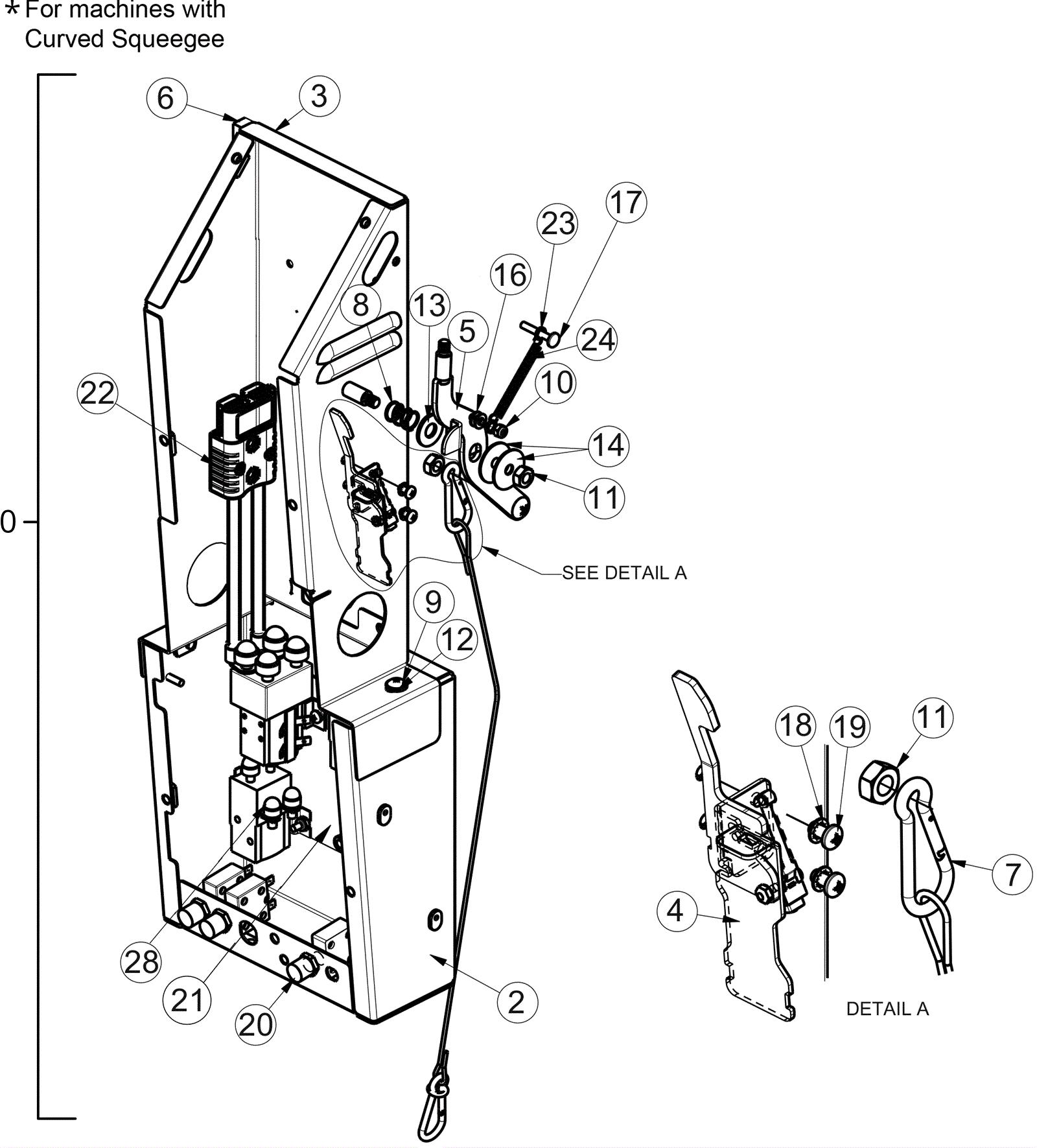

174-3871
|
Electric box assembly |
1 |
(includes 2-28) |
|
2 |
174-8283
|
Bottom electrical box weldment |
1 |
|
|
3 |
174-8284
|
Upper electrical box weldment |
1 |
|
|
4 |
174-8287
|
Vac switch assembly |
1 |
|
|
5 |
174-8128
|
Lever |
1 |
|
|
6 |
174-8288
|
Foam tape 1/2 x 16 1/2 inch |
1 |
|
|
7 |
274-4152
|
Squeegee cable assembly |
1 |
(curved squeegee only) (gromment is NLA) |
|
8 |
174-5749
|
Compression spring |
1 |
|
|
9 |
999-0113
|
Screw 1/4-20 x 1/2 truss head slotted |
3 |
|
|
10 |
999-0151
|
Nut 8-32 nylon insert lock zinc plated |
1 |
|
|
11 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
12 |
999-0016
|
Washer 1/4 flat plain finish |
9 |
|
|
13 |
999-0328
|
Washer 7/16 USS flat |
1 |
|
|
14 |
174-2255
|
Washer 5/16 x 7/8 x 3/64 flat |
2 |
|
|
16 |
174-0532
|
Washer 7/32 x 3/64 nylon |
2 |
|
|
17 |
174-5072
|
Screw 10-24 x 1-1/4 |
1 |
|
|
18 |
999-0089
|
Washer #10 internal star lock zinc plated |
6 |
|
|
19 |
999-0817
|
Screw 10-24 x 5/8 round head zinc plated |
6 |
|
|
20 |
174-5824
|
Circuit breaker boot |
3 |
|
|
21 |
174-8289
|
Electrical panel assembly |
1 |
|
|
22 |
174-8290
|
Wire assembly |
1 |
|
|
23 |
374-2258
|
Mount ring |
2 |
|
|
24 |
174-5235
|
Spring |
1 |
|
|
28 |
174-8291
|
Nut cover safety cap M8 |
2 |
|
|
