| # | Part | Description |
Req | Notes | Availability |
|---|

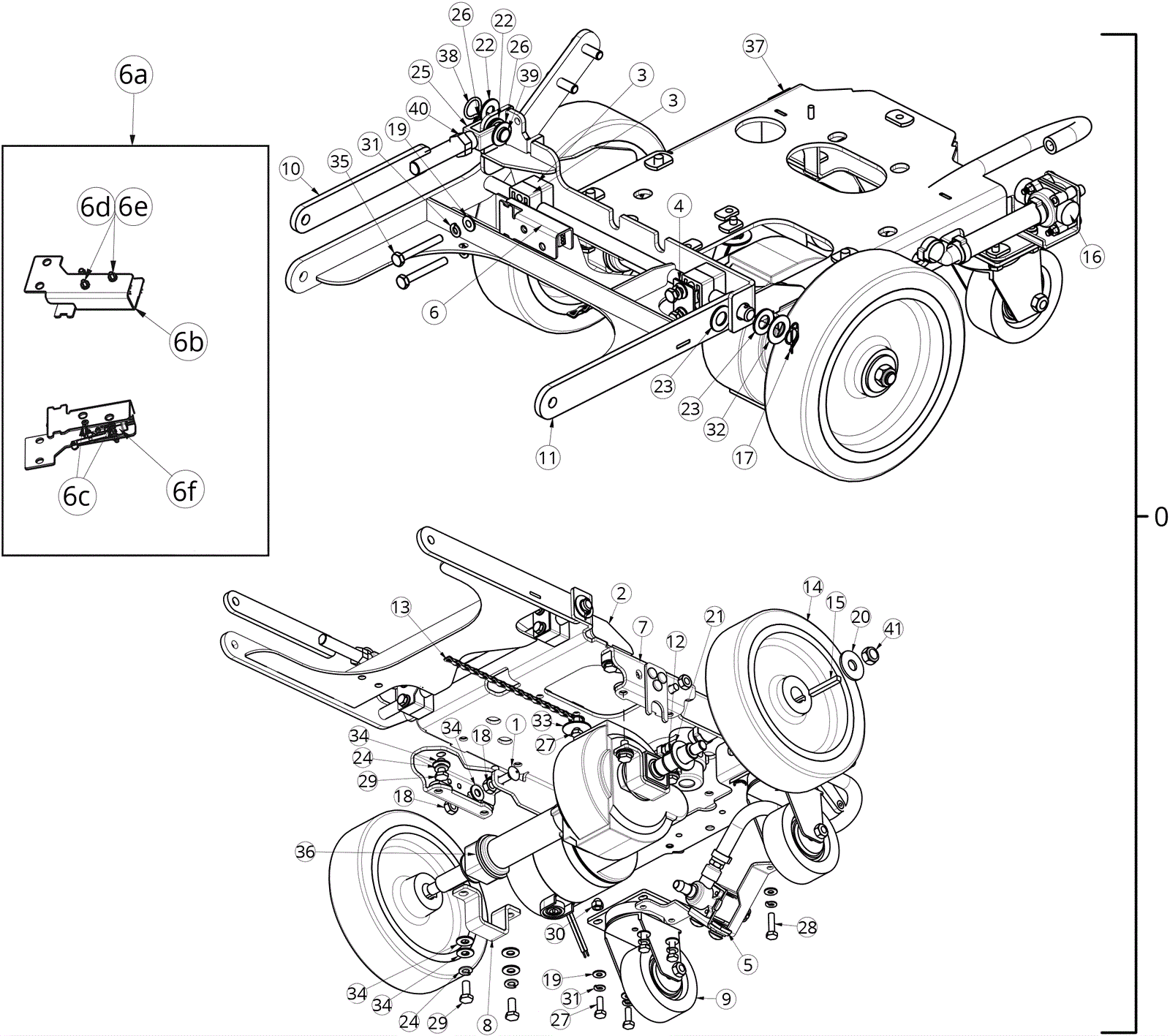

0 |
374-0116
|
Chassis assembly |
1 |
(includes 1-41) |
|
1 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
2 |
|
|
2 |
174-8238
|
Main frame weldment |
1 |
|
|
3 |
174-8243
|
Bearing block |
4 |
|
|
4 |
174-8244
|
Bearing block plate |
1 |
|
|
5 |
274-7151
|
Solenoid mount assembly |
1 |
|
|
6a |
174-8246
|
Deck switch assembly |
1 |
(includes 6b-6f) |
|
6b |
274-2017
|
BEARING BLOCK/SWITCH PLATE |
1 |
|
|
6c |
999-1059
|
Screw 4-40 x 3/4 pan head phillips zinc plated |
2 |
|
|
6d |
999-0408
|
Nut 4-40 plain machine screw |
2 |
|
|
6e |
999-0479
|
Washer #4 internal star lock zinc plated |
2 |
|
|
6f |
174-8264
|
Switch assembly (with pack conduit) |
1 |
|
|
7 |
274-6110
|
Transaxle base mount bracket |
2 |
|
|
8 |
274-1704
|
Transaxle mount bracket |
2 |
|
|
9 |
274-9979
|
3 1/2 inch caster |
2 |
|
|
10 |
174-7156
|
Upper lifting arm |
1 |
|
|
11 |
274-7650
|
Deck lift weldment |
1 |
|
|
12 |
174-7157
|
Retaining ring |
2 |
|
|
13 |
174-7158
|
8 inch drag chain stainless steel |
1 |
|
|
14 |
274-7909
|
8.5 inch tire foam filled |
2 |
|
|
15 |
174-7160
|
Square keyway |
2 |
|
|
16 |
174-3885
|
Solution valve assembly |
1 |
|
|
17 |
174-7161
|
Cotter pin |
1 |
|
|
18 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
|
19 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
12 |
|
|
20 |
999-0187
|
Washer 1/2 flat plain finish |
2 |
|
|
21 |
999-0588
|
Washer 7/8 flat stainless steel |
2 |
|
|
22 |
174-8193
|
Washer .390 x .880 x .062 flat |
3 |
|
|
23 |
999-0566
|
Washer 1/2 flat nylon |
2 |
|
|
24 |
174-8250
|
Washer helical 5/16 stainless steel |
8 |
|
|
25 |
174-7162
|
Yoke clevis with pin |
1 |
|
|
26 |
999-1363
|
Washer 7/8 flat stainless steel |
2 |
|
|
27 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
8 |
|
|
28 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
1 |
|
|
29 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
8 |
|
|
30 |
999-1344
|
Nut 1/4-20 acorn stainless steel |
2 |
|
|
31 |
999-0632
|
Washer 1/4 split lock stainless steel |
12 |
|
|
32 |
174-0588
|
Washer 9/16 x 1-1/16 x 3/64 flat pleated |
1 |
|
|
33 |
174-1167
|
Washer 9/32 x 19/32 flat stainless steel |
1 |
|
|
34 |
174-8251
|
Washer flat stainless steel |
14 |
|
|
35 |
999-0258
|
Bolt 1/4-20 x 2 hex head grade 5 zinc plated |
4 |
|
|
36 |
274-9506
|
24v transaxle |
1 |
|
|
37 |
174-2234
|
Cord clip |
1 |
|
|
38 |
174-0200
|
Cotter pin |
1 |
|
|
39 |
174-5862
|
Clevis pin |
1 |
|
|
40 |
999-0714
|
Nut 1/2-20 hex jam stainless steel |
1 |
|
|
41 |
999-1122
|
Nut M12-1.75 hex nylon insert lock stainless steel |
2 |
|
|
