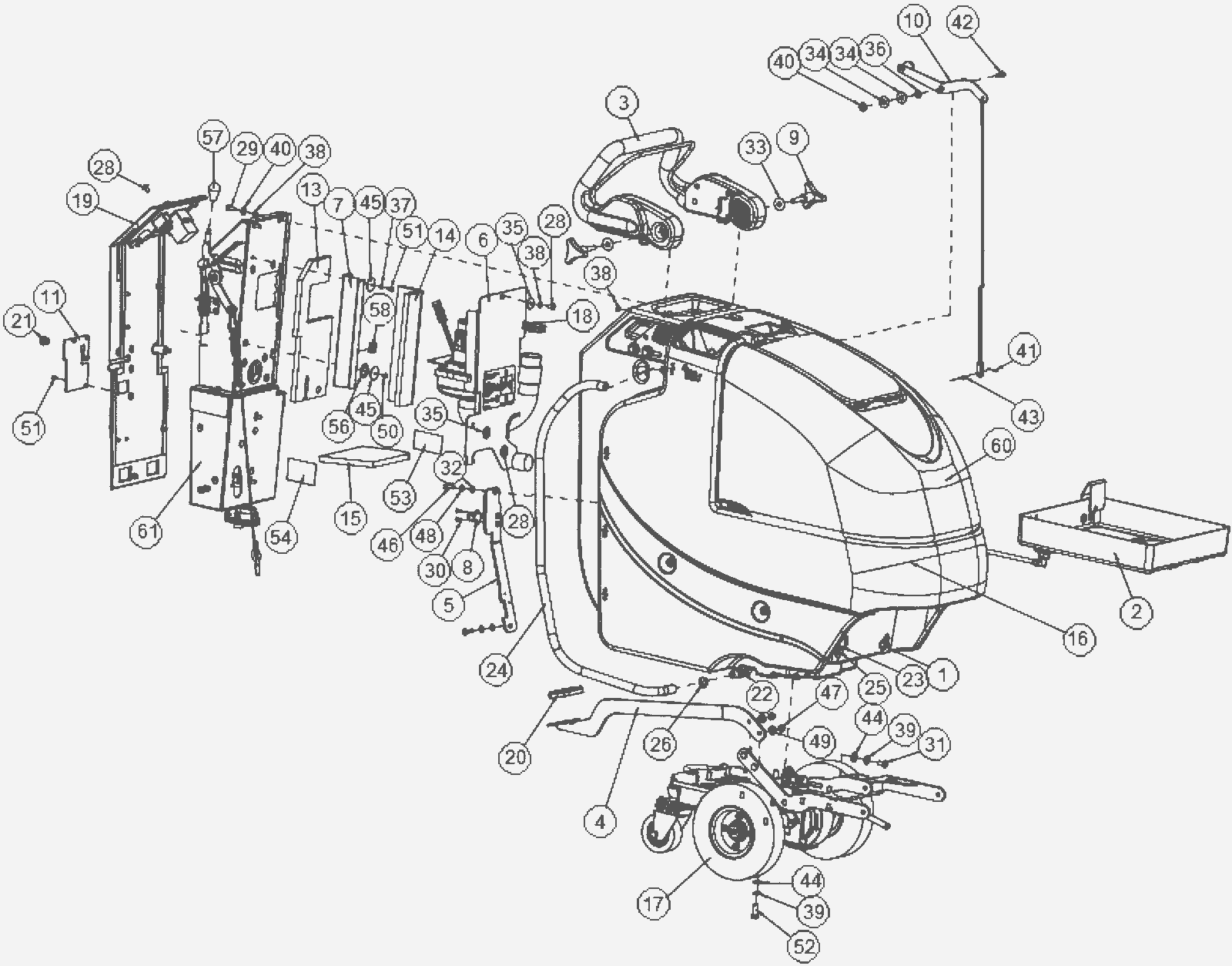

Brush Drive Base Assembly - Cylindrical

#PartDescription ReqNotesAvailability
1 174-1531 Clamp 1
2 174-8207 Battery tray assembly 1
3 N/A Not available 1 (traction drive handle assembly)
4 174-8209 Lift pedal weldment 1
5 174-8262 Stop pedal bracket 1
6 174-8210 Vac motor assembly 1
7 174-8211 Inside cover bracket 1
8 174-8263 Clip 1
9 174-8214 Knob 3/8-16 stud 2
10 174-8215 Solution control assembly 1
11 174-8216 Power cord mount bracket 1
13 174-8219 Foam cover with adhesive 1
14 174-8220 1/2 inch foam cover 1
15 174-8222 1/2 inch foam cover 1
16 174-7235 Pump assembly 1
17 N/A Not available 1 (chassis assembly)
18 174-3354 Hose clamp 1
19 174-3875 Electric box cover 1
20 174-0102 Pedal pad 1
21 174-8223 Strain relief 1
22 174-8224 Fitting 1/2 barb 3/4 mpt 1
23 374-2225 3/8 inch fitting 1
24 174-3876 Hose 1/2 x 42 inch 1
25 997-2001 Hose clamp 1
26 174-8226 3/4 inch hose clamp 1
28 999-0113 Screw 1/4-20 x 1/2 truss head slotted 10
29 999-0415 Screw 1/4-20 x 3/4 pan head slotted zinc plated 5
30 174-2271 Screw 8-32 x 1/2 2
31 999-0616 Screw 3/8-16 x 5/8 socket head alloy plain finish 2
32 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
33 999-0617 Washer 3/8 x 1 flat stainless steel 2
34 999-0328 Washer 7/16 USS flat 2
35 174-0536 Washer 1/4 3
36 999-0120 Washer 3/8 SAE flat 1
37 174-5259 Washer #10 helical 1
38 999-0060 Washer 1/4 split lock plain finish 9
39 999-0034 Washer 3/8 split lock plain finish 6
40 999-0024 Washer 5/16 flat stainless steel 6
41 174-3219 Cotter pin .06 x .75 1
42 174-5160 Bolt 1/4-20 x .44 x 3/8 shoulder 1
43 174-2756 Clevis pin 3/16 x 19/32 1
44 999-1363 Washer 7/8 flat stainless steel 6
45 999-0464 Washer 3/16 flat plain finish 2
46 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
47 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
48 999-0632 Washer 1/4 split lock stainless steel 2
49 174-8251 Washer flat stainless steel 2
50 999-0082 Screw 10-24 x 1/4 round head slotted zinc plated 1
51 999-0817 Screw 10-24 x 5/8 round head zinc plated 5
52 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated 4
53 174-5775 Serial nameplate decal 1
54 174-8228 Clear laminate decal 1
55 174-8229 Patent number label 1
56 999-1134 Washer 1 1/4 flat stainless steel 1
57 174-0387 Knob 1
58 174-1121 Cord clip 1
60 N/A Not available 1 (base assembly)
61 174-3877 CYL ELEC BOX ASSY-120V 1
