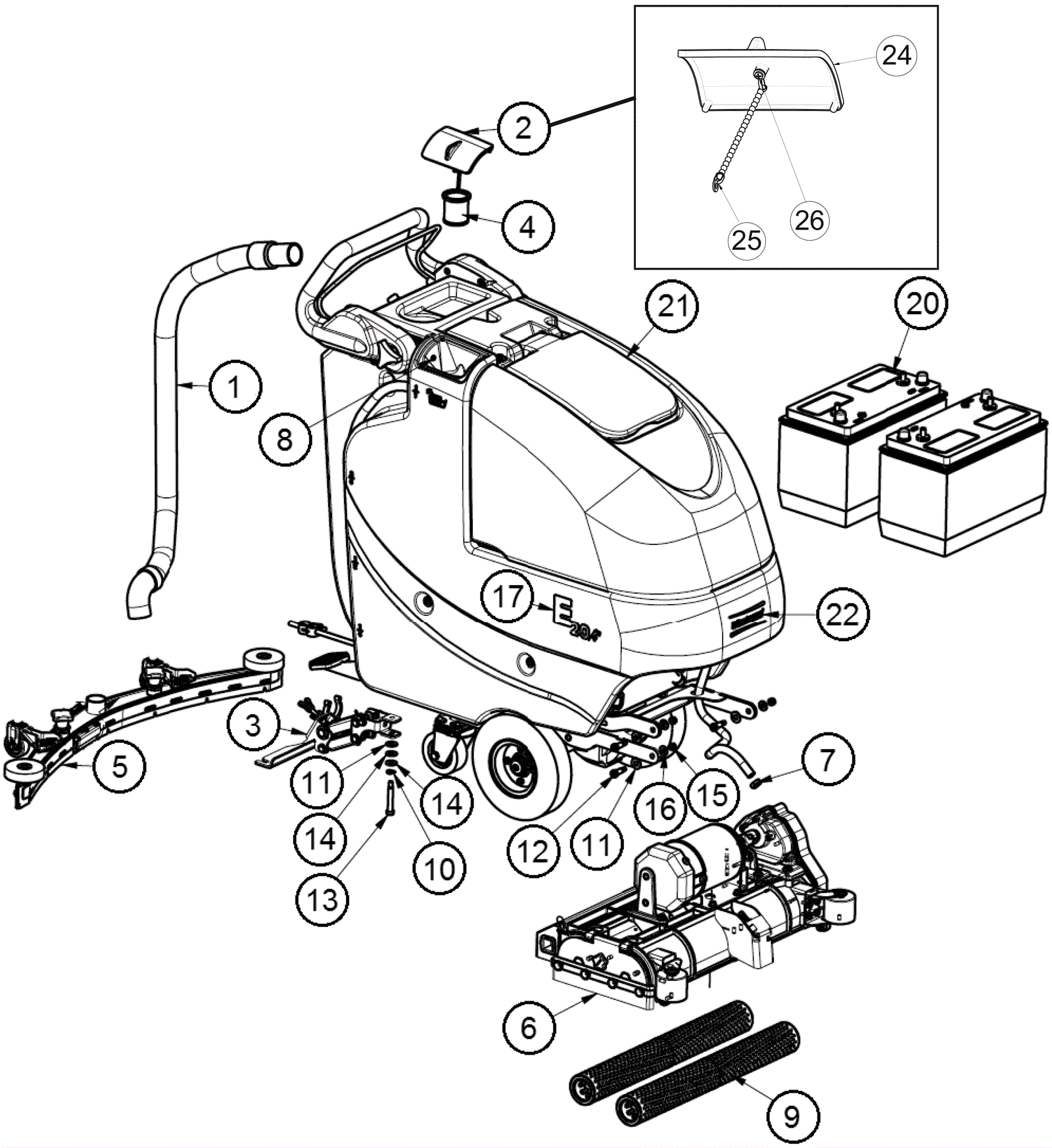

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-8186
|
Recovery vac hose with cuff (clear) |
1 |
|
|
2 |
174-8187
|
Solution tank lid assembly |
1 |
(includes 24-26) |
|
3 |
174-8343
|
Squeegee lift mechanism assembly |
1 |
|
|
4 |
174-8189
|
Fill port filter |
1 |
|
|
5 |
274-9436
|
34 inch squeegee assembly curved |
1 |
|
|
6 |
374-0161
|
Cylindrical deck assembly |
1 |
|
|
7 |
997-2001
|
Hose clamp |
1 |
|
|
8 |
174-8192
|
Screw 10 x 3/4 stainless steel |
1 |
|
|
9a |
274-8379
|
20 inch CYL BRUSH, PP, BLACK, (SET OF 2) |
1 |
|
|
9b |
274-8825
|
20 inch CYL BRUSH, NYLON, BLUE, (SET OF 2) |
1 |
|
|
9c |
274-9504
|
BRUSH, 20 inch CYL, GRIT, GREY, (SET OF 2) |
1 |
|
|
10 |
999-0120
|
Washer 3/8 SAE flat |
1 |
|
|
11 |
174-8193
|
Washer .390 x .880 x .062 flat |
4 |
|
|
12 |
999-0492
|
Bolt 3/8 x 3/4 x 5/16 shoulder socket head |
3 |
|
|
13 |
174-8194
|
Bolt 5/16-18 X 2 3/8 shoulder |
1 |
|
|
14 |
999-1363
|
Washer 7/8 flat stainless steel |
2 |
|
|
15 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
3 |
|
|
16 |
174-8251
|
Washer flat stainless steel |
3 |
|
|
17 |
174-8204
|
E20 decal |
2 |
|
|
20a |
162-0057
|
12V 150Ah wet battery |
2 |
|
|
20b |
162-0042
|
12V 115Ah AGM battery (Group 31) (SNSR) |
2 |
|
|
21 |
N/A
|
Not available |
1 |
(cylindrical base assembly - 120V charger) |
|
22 |
174-8198
|
Minuteman decal |
1 |
|
|
24 |
174-8164
|
Solution tank lid |
1 |
|
|
25 |
174-8199
|
Beaded chain with eyelets stainless steel |
1 |
|
|
26 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
1 |
|
|
N/S |
174-8196
|
Jumper cable assembly red 4G 12 inch |
1 |
|
|
N/S |
174-8197
|
Battery cable assembly |
1 |
|
|
