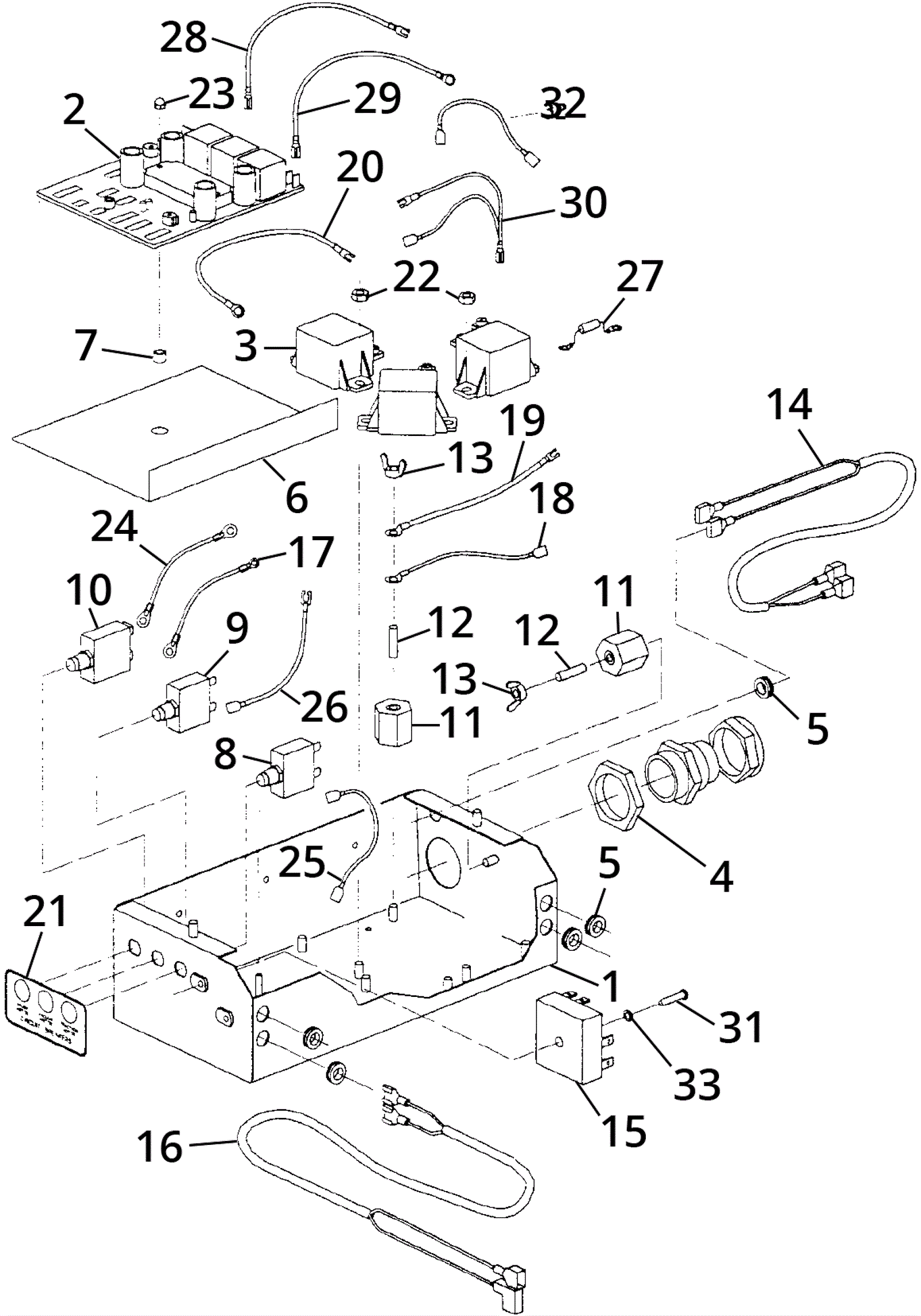

200 Electrical Panel Assembly - Traction Drive

#PartDescriptionPriceReqNotesAvailability
1 274-7447 ELECTRICAL BOX 200 $103.53 1 usually ships 1-5 days
2 174-0535 24V speed control board $982.33 1 usually ships 1-5 days
3 174-0209 24V 50amp contactor $97.46 3 usually ships 12-16 days
4 174-0429 Liquid tight fitting $6.32 1 usually ships 1-5 days
5 174-1093 Rubber grommet $1.22 5 usually ships 1-5 days
6 174-0264 Insulator $6.48 1 usually ships 1-5 days
7 174-0169 Bushing $4.64 2 usually ships 1-5 days
8 174-5740 Circuit Breaker 18 amp $41.54 1 usually ships 1-5 days
9 274-1163 30amp circuit breaker $6.71 1 ships same day
10 174-5812 Circuit breaker 50amp $34.61 1 usually ships 12-16 days
11 174-0156 Insulated standoff $6.41 2 usually ships 1-5 days
12 174-0165 Brass stud $6.42 2 usually ships 1-5 days
13 174-0248 Nut 1/4-20 wing nylon $1.33 2 usually ships 1-5 days
14 174-3856 Solenoid wire harness Call for price 1 usually ships 12-16 days
15 174-0266 5 second time delay $248.33 1 usually ships 1-5 days
16 174-3857 Black/yellow 14 gauge wire assembly Call for price 1 usually ships 12-16 days
17 174-3858 Black 8 gauge wire assembly Call for price 1 usually ships 12-16 days
18 174-3859 Red 14 gauge wire assembly Call for price 1 usually ships 12-16 days
19 174-3860 Red 10 gauge wire assembly Call for price 1 usually ships 12-16 days
20 374-2439 10G BLACK    4.00 inch B= $2.06 1 usually ships 1-5 days
21 274-0304 DECAL-CB $2.94 1 usually ships 1-5 days
22 999-0609 Nut 1/4-20 hex stainless steel $0.99 6 ships same day
23 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
24 174-3861 Black 8 gauge wire assembly Call for price 1 usually ships 12-16 days
25 174-3862 Black 14 gauge wire assembly Call for price 1 usually ships 12-16 days
26 174-3863 Black 14 gauge wire assembly Call for price 1 usually ships 12-16 days
27 174-0230 Diode assembly $5.82 3 ships same day
28 174-3864 Red 10 gauge wire assembly Call for price 1 usually ships 12-16 days
29 174-3865 Black 10 gauge wire assembly Call for price 1 usually ships 12-16 days
30 274-0665 WIRE ASSY. $2.39 1 usually ships 1-5 days
31 174-6034 Screw 10 - 24 x 1/2 Call for price 1 usually ships 1-5 days
32 174-0600 16G black 8 B=12 $1.23 1 usually ships 1-5 days
33 999-0089 Washer #10 internal star lock zinc plated $0.99 1 ships same day
