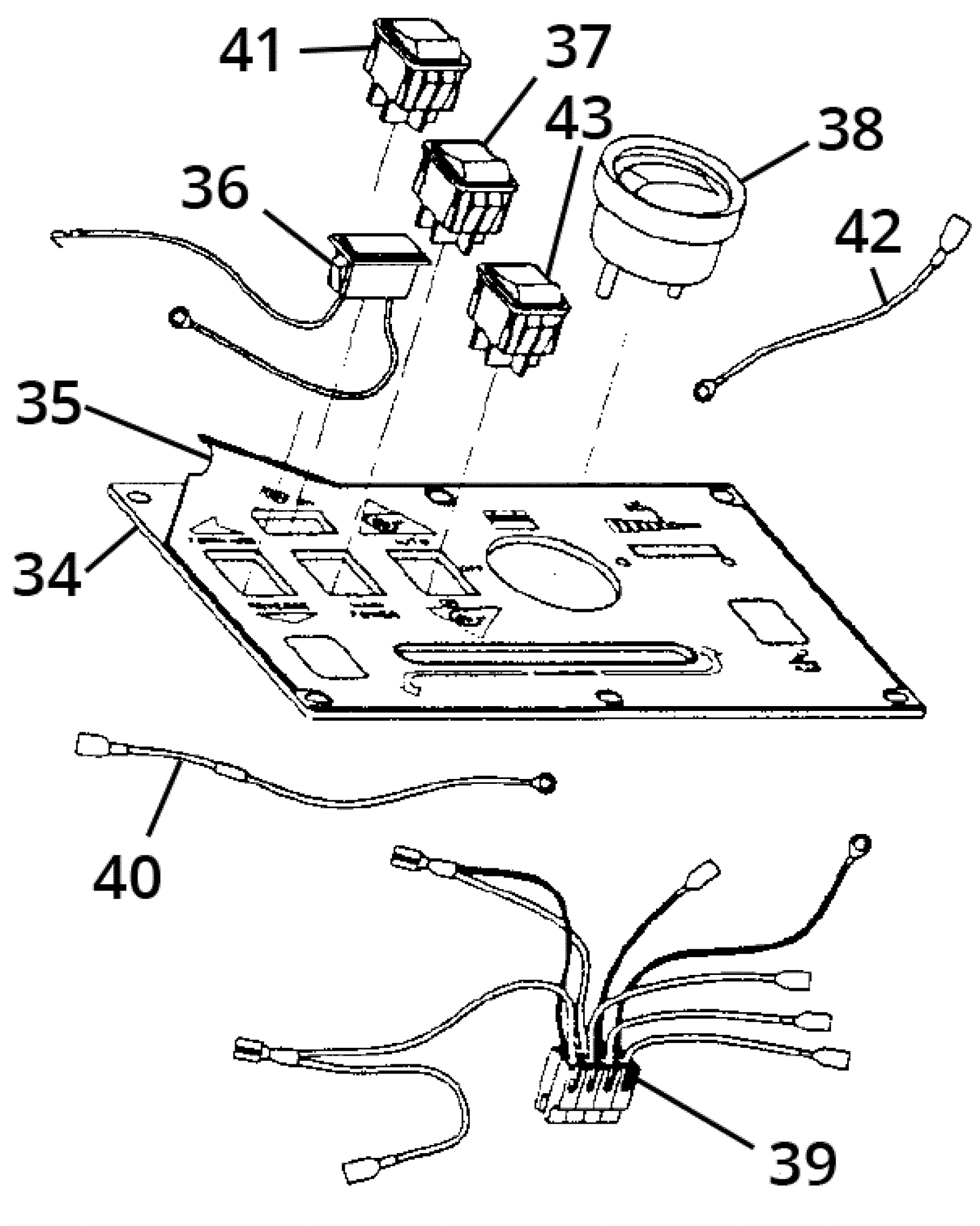

200 Dashboard Assembly - Traction Drive

#PartDescriptionPriceReqNotesAvailability
34 174-3853 Dashboard 200TD Call for price 1 usually ships 12-16 days
35 174-3854 Decal Call for price 1 usually ships 12-16 days
36 274-2527 PANEL LIGHT ASY $14.05 1 usually ships 1-5 days
37a 174-2042 Switch $8.46 2 usually ships 12-16 days
37b 174-0374 Rocker switch with splash guard $14.54 2 usually ships 12-16 days
38 174-0180 Battery gauge $96.83 1 usually ships 12-16 days
39 174-3855 Dashboard wiring harness Call for price 1 usually ships 12-16 days
40 274-2872 WIRE ASSY. $10.83 1 usually ships 1-5 days
41a 174-0415 Rocker switch $29.93 1 usually ships 12-16 days
41b 174-0643 Transport switch $16.88 1 usually ships 12-16 days
42 374-2440 16G YELLOW   5.00 inch B=13 $2.28 1 usually ships 1-5 days
43 174-0705 Vacuum switch $10.12 1 usually ships 12-16 days
