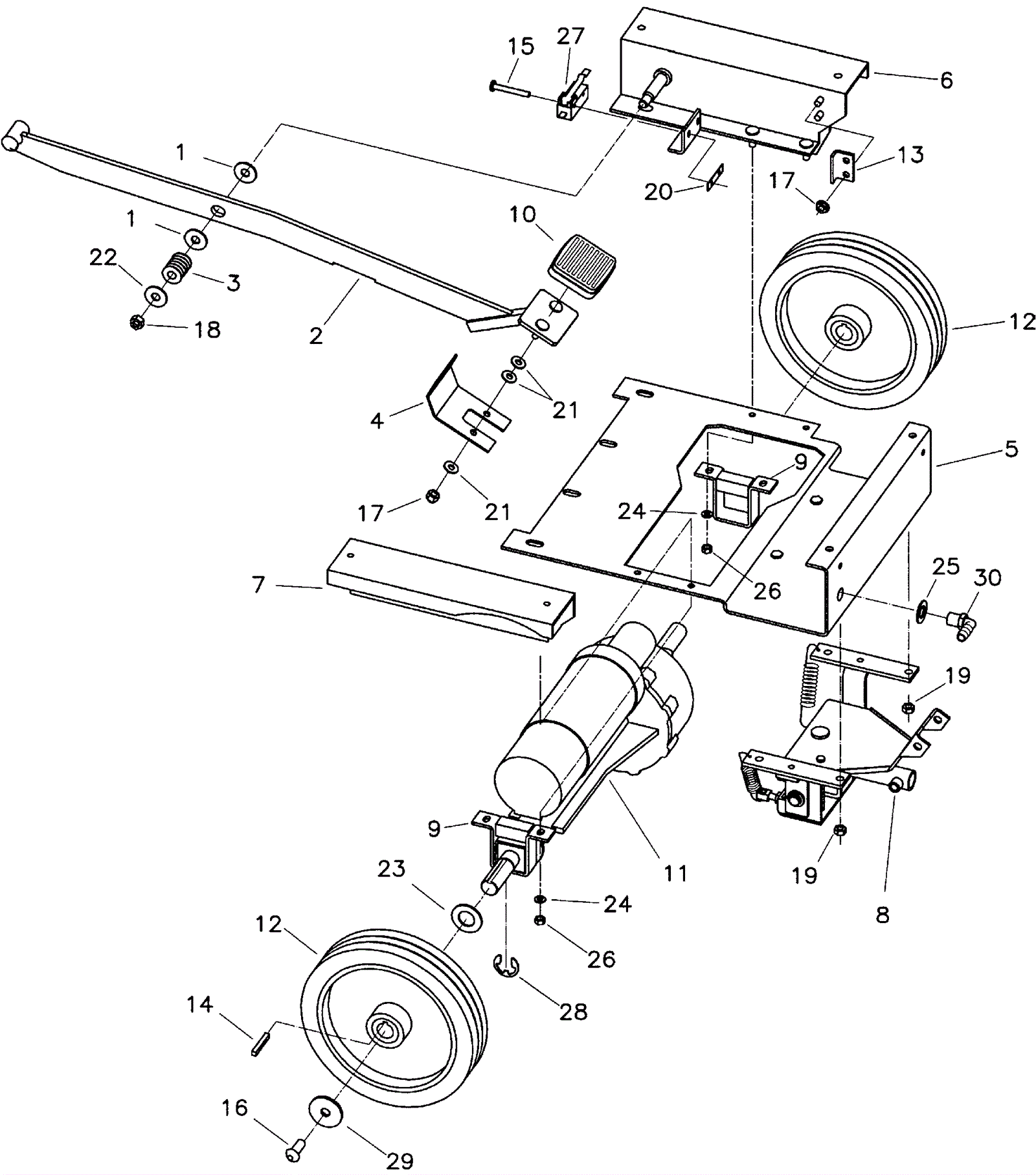

200 Traction Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-1170 Washer oilite (OBSOLETE) Call for price 2 usually ships 4-14 days
2 174-1157 Lift lever weldment $121.70 1 usually ships 1-5 days
3 174-1165 Die spring $13.71 1 usually ships 1-5 days
4 174-1174 Foot guard $11.24 1 usually ships 1-5 days
5 274-7446 PLATFORM 200TD 11 GA $92.93 1 usually ships 1-5 days
6 274-6755 WH MOUNT STRUT RH 11 GA $65.05 1 usually ships 1-5 days
7 274-4978 WH MOUNT STRUT LH 11 GA $28.32 1 usually ships 1-5 days
8 274-8923 SQUEEGEE MECHANISM ASM $252.37 1 usually ships 1-5 days
9 174-3852 Mounting bracket weldment Call for price 2 usually ships 4-14 days
10 174-0102 Pedal pad $5.86 1 usually ships 4-14 days
11 374-0177 TRACTION DRIVE ASM $296.48 1 usually ships 1-5 days
12 274-6960 WHEEL-8 X 1.5 X .75, 200TD $86.55 2 usually ships 1-5 days
13 174-1176 Pedal stop $10.12 1 usually ships 1-5 days
14 174-5717 Square keyway $1.13 2 usually ships 4-14 days
15 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
16 999-0594 Screw 3/8-16 x 1 socket head alloy plain finish $1.14 2 ships same day
17 999-0190 Nut 1/4-20 hex plain finish $0.99 4 ships same day
18 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
19 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 4 ships same day
20 174-0413 Tinnerman nut $0.97 1 usually ships 1-5 days
21 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
22 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
23 999-0588 Washer 7/8 flat stainless steel $11.44 2 ships same day
24 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
25 174-3093 Washer .56 x 1 flat $0.97 1 usually ships 4-14 days
26 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
27 174-5199 Snap switch DPST $12.64 1 usually ships 1-5 days
28 174-5728 Retaining ring $1.06 2 usually ships 4-14 days
29 174-0234 Washer $2.94 2 usually ships 4-14 days
30 164-0187 90 degree elbow barb $5.66 1 ships same day
