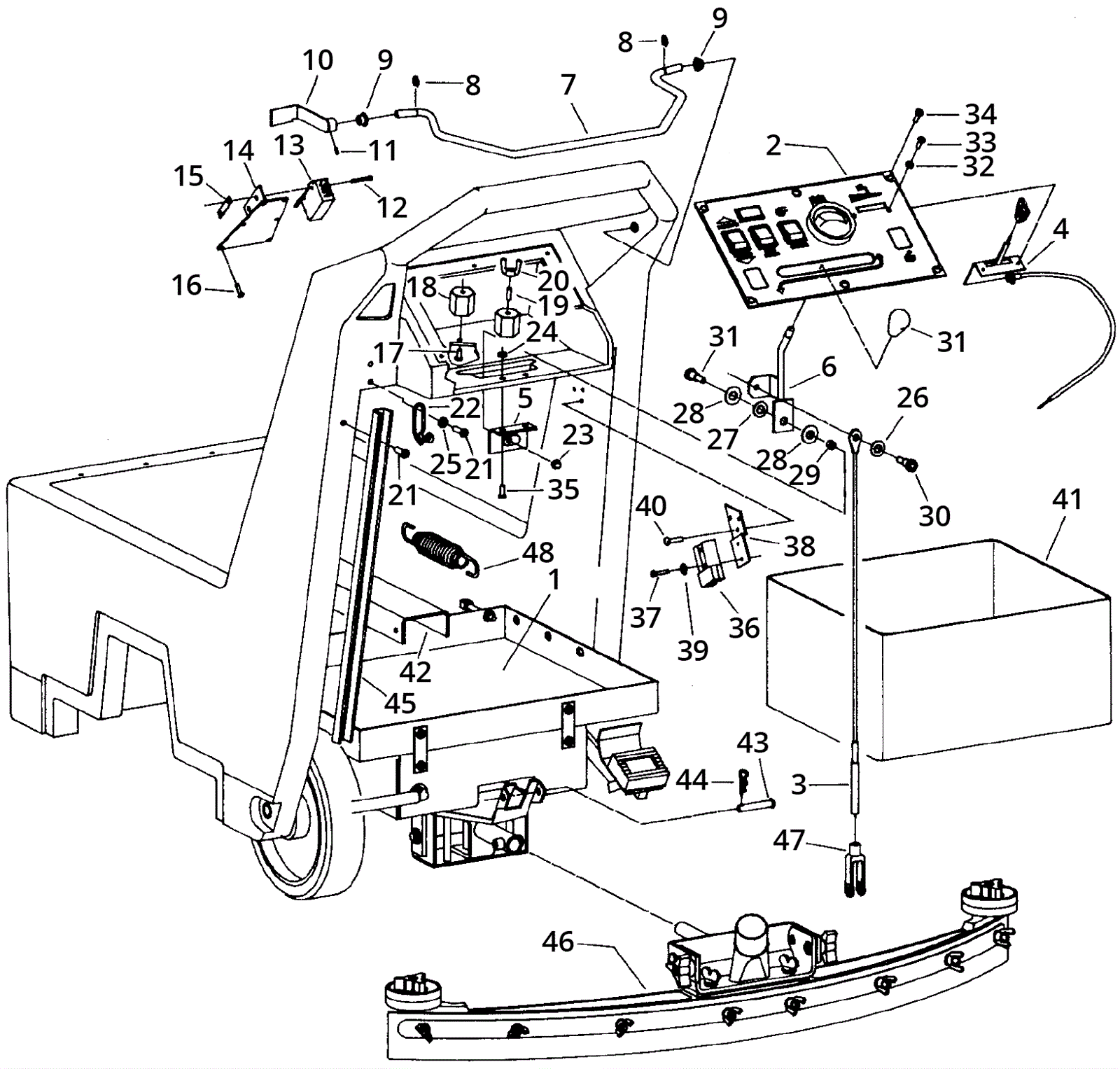

200 Control System - Traction Drive

#PartDescriptionPriceReqNotesAvailability
1 374-0355 200 BASE ASY TD $3,491.68 1 usually ships 1-5 days
2 274-8482 DASHBOARD ASY 200TD $102.57 1 usually ships 1-5 days
3 174-1179 Squeegee lift cable $161.44 1 usually ships 1-5 days
4 174-0082 Solution control cable with lever and knob $25.35 1 usually ships 4-14 days
5 174-0778 Squeegee lift bracket assembly $16.00 1 usually ships 1-5 days
6 174-0779 Squeegee lift arm assembly $42.62 1 usually ships 1-5 days
7 174-8107 Wire handle $58.47 1 usually ships 1-5 days
8 174-2104 Retaining ring $0.97 2 usually ships 4-14 days
9 174-3040 Nylon flanged bushing $4.23 2 usually ships 4-14 days
10 174-1389 Switch cam assembly $37.76 1 usually ships 1-5 days
11 174-1390 Screw 8-32 x .50 SK $0.97 1 usually ships 1-5 days
12 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
13 174-0388 Micro switch $25.43 1 usually ships 4-14 days
14 174-1388 Switch bracket weldment $20.41 1 usually ships 1-5 days
15 174-0413 Tinnerman nut $0.97 1 usually ships 1-5 days
16 174-2289 Screw 10 x 5/8 hi/lo $1.90 6 usually ships 4-14 days
17 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 2 ships same day
18 174-0156 Insulated standoff $5.77 2 usually ships 1-5 days
19 174-0165 Brass stud $5.78 2 usually ships 1-5 days
20 174-0248 Nut 1/4-20 wing nylon $1.20 2 usually ships 1-5 days
21 174-2289 Screw 10 x 5/8 hi/lo $1.90 4 usually ships 4-14 days
22 174-0213 Wire formed hook $24.53 1 usually ships 1-5 days
23 999-0429 Nut 1/4-20 acorn nickel plated $0.99 1 ships same day
24 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 4 ships same day
25 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
26 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
27 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
28 174-5067 Flanged bushing $4.10 1 usually ships 1-5 days
29 174-0790 Spacer $2.53 1 usually ships 1-5 days
30 174-5160 Bolt 1/4-20 x .44 x 3/8 shoulder $0.86 2 ships same day
31 174-0387 Knob $9.31 1 usually ships 4-14 days
32 174-0532 Washer 7/32 x 3/64 nylon $0.97 2 usually ships 4-14 days
34 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 6 ships same day
35 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
36 162-5032 175amp charger plug only (red) SB175 $10.66 1 ships same day
37 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated $0.99 2 ships same day
38 174-1185 Anderson plug bracket $30.87 1 usually ships 1-5 days
39 174-5227 Washer 1/4 steel plated $0.97 2 usually ships 4-14 days
40 999-0717 Screw 1/4-14 x 3/4 pan head phillips self-drilling SS $1.12 3 ships same day
41 174-1183 Battery liner $100.26 1 usually ships 1-5 days
42 174-1182 Battery spacer $13.46 1 usually ships 1-5 days
43 174-1186 Clevis pin 5/16 x 1 11/16 $4.39 1 usually ships 4-14 days
44 174-0201 Cotter pin $1.20 1 usually ships 4-14 days
45 174-0358 U-Channel $12.89 1 usually ships 1-5 days
46 174-1180 Squeegee assembly (OBSOLETE) $487.91 1 usually ships 4-14 days
47 174-1181 Yoke $29.57 1 usually ships 4-14 days
48 174-1175 Spring $34.43 1 usually ships 1-5 days
