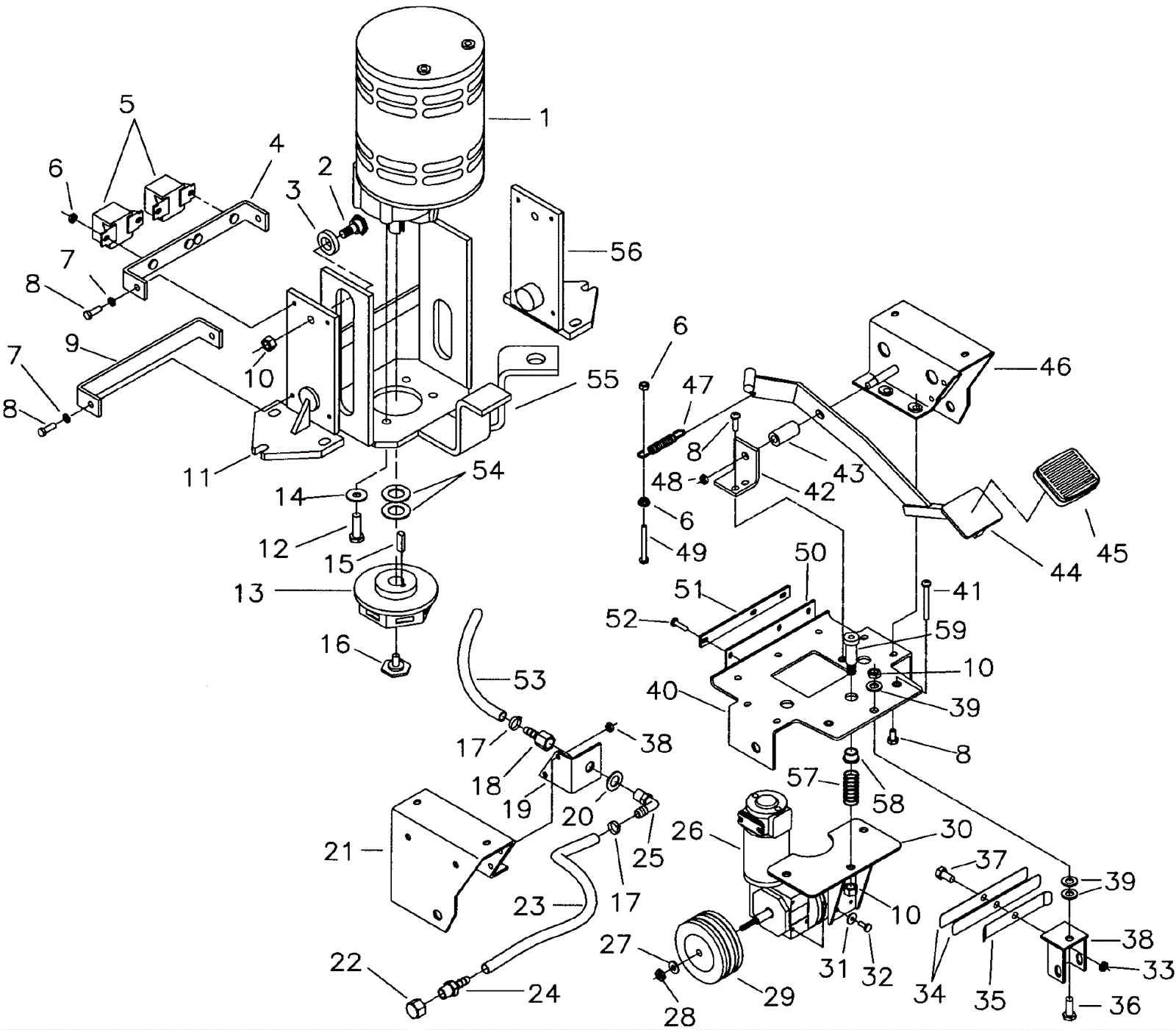

170 Brush Drive Assembly - Traction

#PartDescriptionPriceReqNotesAvailability
1 174-0054 24V brush gear motor assembly $793.62 1 usually ships 4-14 days
2 174-0459 Bearing stud $9.80 1 usually ships 1-5 days
3 174-0465 Bearing $28.30 1 usually ships 1-5 days
4 174-0752 Stabilizer bracket Call for price 1 usually ships 1-5 days
5 174-0209 24V 50amp contactor $87.71 2 usually ships 4-14 days
6 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 8 ships same day
7 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
8 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 12 ships same day
9 174-0769 Lower stabilizer bar $10.37 1 usually ships 1-5 days
10 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
11 174-3569 Motor bracket weldment machined Call for price 1 usually ships 4-14 days
12 999-0594 Screw 3/8-16 x 1 socket head alloy plain finish $1.14 3 ships same day
13 174-0035 Drive hub $41.45 1 usually ships 4-14 days
14 999-0201 Washer 3/8 internal star lock $0.99 1 ships same day
15 174-0035 Drive hub $41.45 1 usually ships 4-14 days
16 174-0037 Retainer bolt $14.63 1 usually ships 4-14 days
17 997-2001 Hose clamp $2.42 2 ships same day
18 174-0222 Hose barb $3.97 1 usually ships 4-14 days
19 174-0749 Mounting bracket quick disc $10.58 1 usually ships 1-5 days
20 174-3093 Washer .56 x 1 flat $0.97 1 usually ships 4-14 days
21 174-0767 U strut left wheel mount $64.93 1 usually ships 1-5 days
22 174-0079 Nylon cap $1.18 1 usually ships 4-14 days
23 174-0771 Clear dump hose $2.50 1 usually ships 4-14 days
24 174-0078 Barb $6.66 1 usually ships 4-14 days
25 164-0187 90 degree elbow barb $6.23 1 ships same day
26 174-3570 Transaxle Call for price 1 usually ships 4-14 days
27 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
28 174-8107 Wire handle $58.47 2 usually ships 1-5 days
29 174-8414 Drive wheel $207.40 1 usually ships 1-5 days
30 174-3571 Motor mount weldment Call for price 1 usually ships 4-14 days
31 999-0089 Washer #10 internal star lock zinc plated $0.99 4 ships same day
32 999-0584 Nut 3/8-24 acorn nickel plated $0.99 4 ships same day
33 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
34 174-0764 Squeegee return spring long $9.87 2 usually ships 4-14 days
35 174-0765 Squeegee return spring short (OBSOLETE) $9.87 1 usually ships 4-14 days
36 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel $0.99 1 ships same day
37 174-5772 Bolt 5/16-18 x 5/8 hex head $0.97 1 usually ships 1-5 days
38 174-0758 Squeegee mount weldment (OBSOLETE) $30.84 1 usually ships 1-5 days
39 999-0120 Washer 3/8 SAE flat $0.99 3 ships same day
40 274-7587 WELD-MOUNT PLATE $78.53 1 usually ships 1-5 days
41 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel $0.99 2 ships same day
42 174-0768 Left motor lift bracket $3.88 1 usually ships 1-5 days
43 274-3688 BUSHING-PLT ZINC $21.54 1 usually ships 1-5 days
44 174-0753 Motor lift weldment $66.21 1 usually ships 1-5 days
45 174-0102 Pedal pad $5.86 1 usually ships 4-14 days
46 174-0762 U strut right wheel mount $101.70 1 usually ships 1-5 days
47 174-0008 Return spring $2.78 1 usually ships 4-14 days
48 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 1 ships same day
49 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 1 ships same day
50 174-6225 6 inch rubber flap $11.60 1 usually ships 1-5 days
51 174-6226 6 inch retainer strap Call for price 1 usually ships 1-5 days
52 999-0565 Screw 10 x 3/4 pan head phillips sheet metal $0.99 3 ships same day
53 174-0725 Hose 3/8 x 34 inches $5.84 1 usually ships 4-14 days
54 999-9114 Washer 3/4 flat stainless steel $1.58 3 ships same day
55 174-0750 Motor mount weldment Call for price 1 usually ships 1-5 days
56 174-0751 Motor bracket weldment $124.93 1 usually ships 1-5 days
57 174-0196 Compression spring $5.27 3 usually ships 4-14 days
58 174-0120 Bushing $2.63 3 usually ships 4-14 days
59 999-0589 Screw 3/8-16 x 1 1/4 socket head shoulder $5.19 3 ships same day
