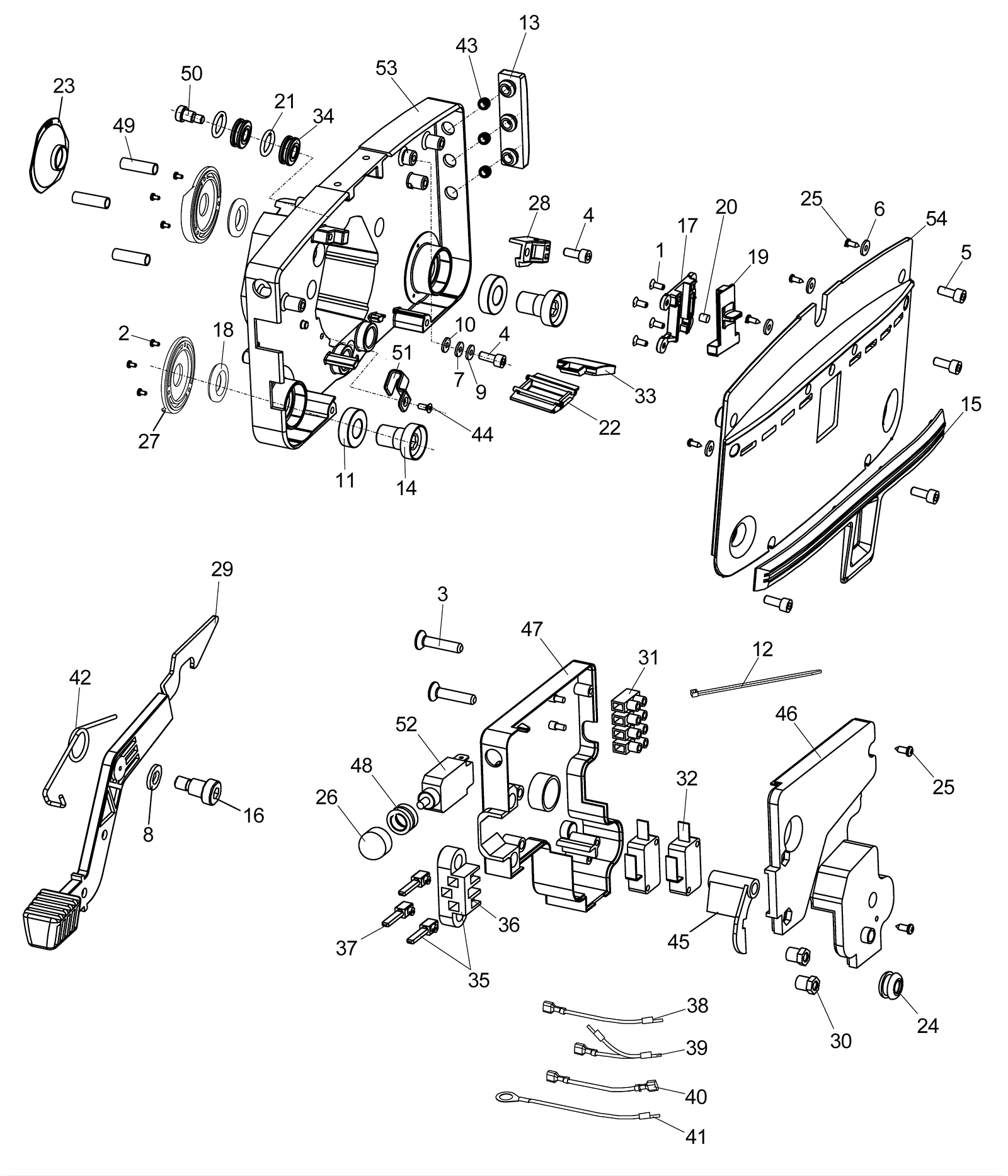

PORT A SCRUB P12 Housing Assembly - Idle Side

#PartDescriptionPriceReqNotesAvailability
1 374-1811 SCR-CSK M4X10, PORT A SCRUB $1.31 4 usually ships 1-5 days
2 374-1399 CR-PAN-HEAD SCREW -SS304-M3X6 $1.00 6 usually ships 1-5 days
3 374-2021 SCR, CSK M5X25, PORT A SCRUB $1.00 2 usually ships 1-5 days
4 374-2260 SCR-ALLEN M6X10, PORT A SCRUB $2.50 2 usually ships 1-5 days
5 374-2734 ALLEN SCREW M6X15, PORT A SCRUB $2.81 5 usually ships 1-5 days
6 374-1812 WSR, 4.2 X 12 X 1.6, PORT A SCRUB $1.00 4 usually ships 1-5 days
7 374-1820 WSR-6.4X12X1.6, PORT A SCRUB $1.00 1 usually ships 1-5 days
8 374-1836 WASHER 9X17X1.6, PORT A SCRUB $1.31 1 usually ships 1-5 days
9 374-1824 WSR-SPRING M6, PORT A SCRUB $1.00 1 usually ships 1-5 days
10 374-1815 WSR-TOOTHED, PORT A SCRUB $1.00 1 usually ships 1-5 days
11 174-8559 Bearing 6003 seal $3.30 2 usually ships 12-16 days
12 374-1816 WIRE TIE, PORT A SCRUB $1.00 3 usually ships 1-5 days
13 274-0954 BUMPER, PORT A SCRUB $6.29 1 usually ships 12-16 days
14 374-2119 BUSHING, PORT A SCRUB $2.20 2 usually ships 1-5 days
15 274-0830 BUMPER, PORT A SCRUB $5.72 1 usually ships 1-5 days
16 274-0735 STUB AXLE, PORT A SCRUB $5.60 1 usually ships 1-5 days
17 374-2756 HOUSING, SLIDER, PORT A SCRUB $2.83 1 usually ships 1-5 days
18 274-2334 SEAL, PORT A SCRUB $12.30 2 usually ships 1-5 days
19 374-2991 TRANSPORT SLIDER, PORT A SCRUB $3.62 1 usually ships 1-5 days
20 374-1818 PIN, PORT A SCRUB $1.31 1 usually ships 1-5 days
21 374-1819 O'RING, PORT A SCRUB $1.31 2 usually ships 1-5 days
22 374-2738 SHIELD, PORT A SCRUB $2.81 1 usually ships 1-5 days
23 374-2301 COVER-FAN, PORT A SCRUB $1.29 1 usually ships 1-5 days
24 374-1963 GROMMET, PORT A SCRUB $1.56 2 usually ships 1-5 days
25 374-1845 SCR-ST, PORT A SCRUB $1.31 6 usually ships 1-5 days
26 374-2741 CAP, PORT A SCRUB $2.81 1 usually ships 12-16 days
27 374-2777 CAP, PORT A SCRUB $2.96 2 usually ships 1-5 days
28 374-2921 STOPPER, PORT A SCRUB $3.47 1 usually ships 1-5 days
29 274-2536 PEDAL, PORT A SCRUB $14.05 1 usually ships 12-16 days
30 374-1846 NUT, PORT A SCRUB $1.00 2 usually ships 1-5 days
31 274-0223 CONNECTOR, PORT A SCRUB $1.31 1 usually ships 1-5 days
32 274-5901 SWITCH, PORT A SCRUB $62.27 2 usually ships 1-5 days
33 374-2747 SHIELD, PORT A SCRUB $2.81 2 usually ships 1-5 days
34 374-1849 ROLLER, PORT A SCRUB $1.31 2 usually ships 1-5 days
35 274-3700 SOCKET ASSY, PORT A SCRUB $23.24 1 (includes 36 and 37) usually ships 1-5 days
36 174-3288 Socket $118.39 1 usually ships 1-5 days
37 374-2736 TERMINAL, PORT A SCRUB $1.25 3 usually ships 1-5 days
38 274-0723 CABLE, PORT A SCRUB $1.97 1 usually ships 1-5 days
39 274-1009 CABLE, PORT A SCRUB $2.28 1 usually ships 1-5 days
40 274-1178 CABLE, PORT A SCRUB $2.47 1 usually ships 1-5 days
41 274-0677 CABLE, PORT A SCRUB $1.92 1 usually ships 1-5 days
42 374-2743 SPRING-PEDAL, PORT A SCRUB $2.81 1 usually ships 1-5 days
43 374-1850 SLEEVE-BUMPER, PORT A SCRUB $1.00 3 usually ships 1-5 days
45 374-1809 LEVER SWITCH ACT, PORT A SCRUB $1.31 1 usually ships 12-16 days
46 274-0722 INSULATION TOP, PORT A SCRUB $2.56 1 usually ships 1-5 days
47 274-1003 INSULATION BOTTOM, PORT A SCRUB $6.40 1 usually ships 1-5 days
48 374-2814 NUT, PORT A SCRUB $3.06 1 usually ships 1-5 days
49 374-1847 SLEEVE TIE ROD, PORT A SCRUB $1.00 3 usually ships 1-5 days
50 274-1344 STUB AXLE, PORT A SCRUB $7.74 1 usually ships 1-5 days
52 374-2992 SWITCH-BASE, PORT A SCRUB $3.62 1 usually ships 1-5 days
53 274-9350 HOUSING-IDLE (110V), PORT A SCRUB $226.59 1 usually ships 1-5 days
54 274-6713 COVER, PORT A SCRUB $91.86 1 usually ships 1-5 days
