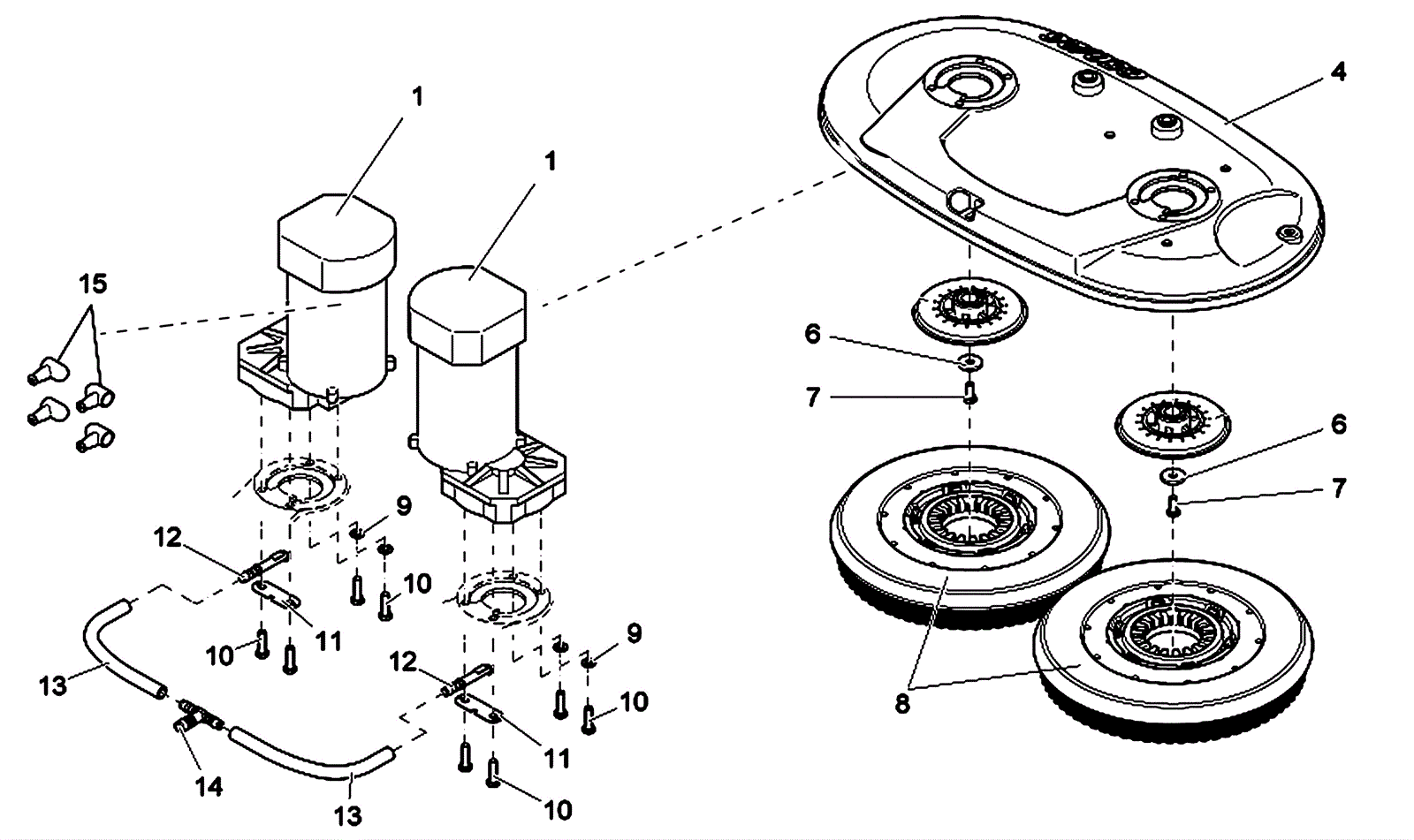

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
174-8891
|
Brush motor |
2 |
|
|
1b |
174-8892
|
Fitting key |
2 |
|
|
1c |
174-8893
|
Carbon brush (set of 4) |
1 |
|
|
1d |
174-8904
|
Spring |
1 |
|
|
1e |
174-8905
|
Gear |
1 |
|
|
1f |
174-8906
|
Circlip |
1 |
|
|
4 |
174-8894
|
26 inch brush deck housing |
1 |
|
|
6 |
174-8895
|
Washer |
2 |
|
|
7 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
2 |
|
|
8 |
274-6006
|
CARRIER |
2 |
|
|
9 |
999-9097
|
Washer M8 flat stainless steel |
4 |
|
|
10 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
8 |
|
|
11 |
174-8896
|
Sheet metal |
2 |
|
|
12 |
174-8897
|
Spray tube |
2 |
|
|
13 |
174-9442
|
Hose 3/8 x 9 inch |
2 |
|
|
14 |
174-8899
|
T-reducer |
1 |
|
|
15 |
174-8900
|
Protection cap |
4 |
|
|
