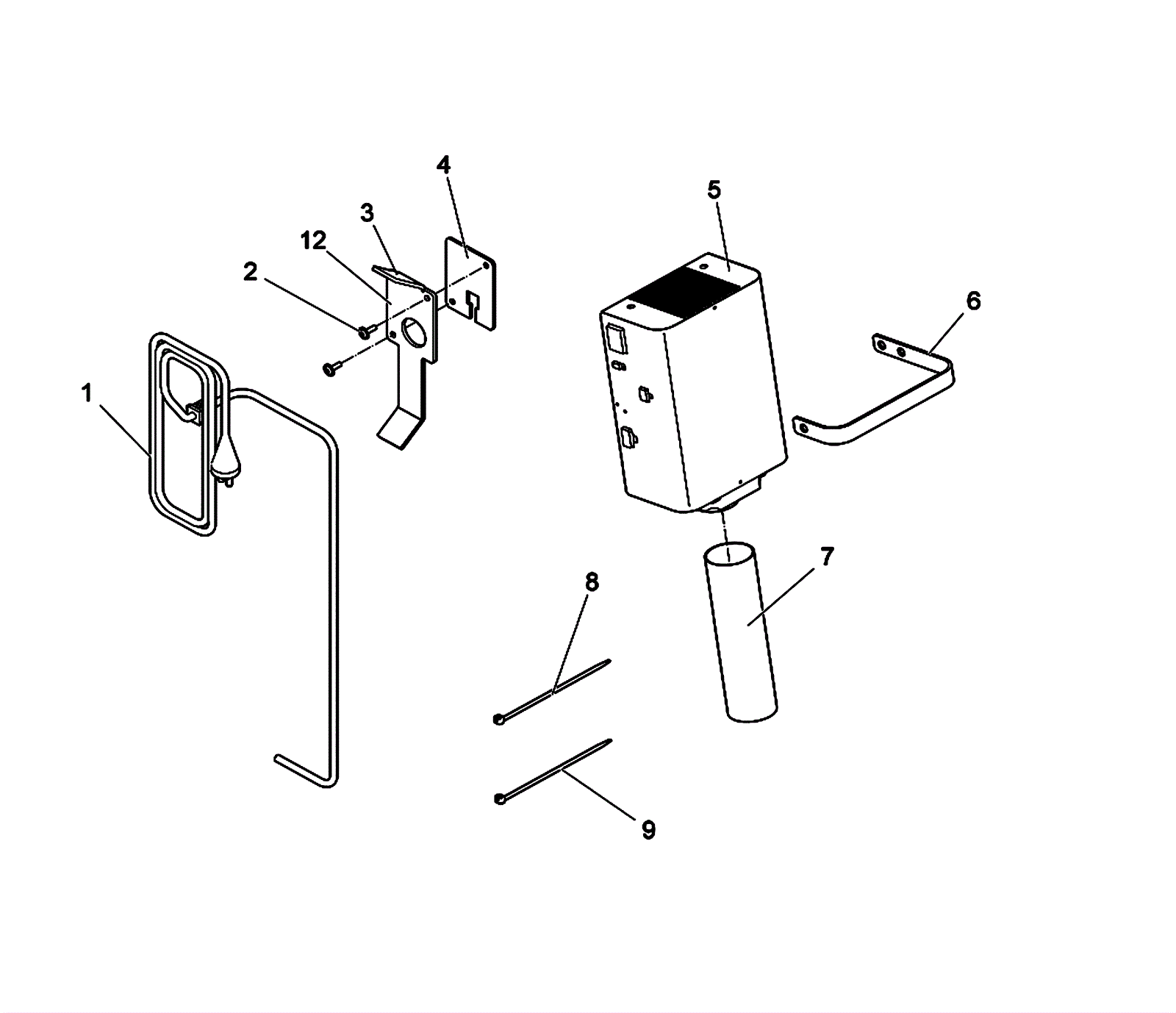

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
174-8940
|
18/3 power cord |
1 |
|
|
1b |
174-3955
|
Cordset assembly with strain relief |
1 |
|
|
2 |
174-8941
|
Lens flange screw |
2 |
|
|
3 |
174-3521
|
Cap |
2 |
|
|
4 |
174-8942
|
Cord attachment cover |
1 |
|
|
5 |
174-9439
|
Battery charger with cord |
1 |
|
|
6 |
174-8943
|
Tension band |
1 |
|
|
7 |
174-8944
|
Hose |
3 |
|
|
8 |
997-2102
|
Cable tie |
8 |
|
|
9 |
174-6185
|
Cable tie large |
1 |
|
|
12 |
174-8946
|
Cable retainer |
1 |
|
|
N/S |
274-6219
|
WIRING HARNESS W6 C |
1 |
|
|
N/S |
174-8457
|
Wiring harness |
1 |
(machine to charger) |
|
