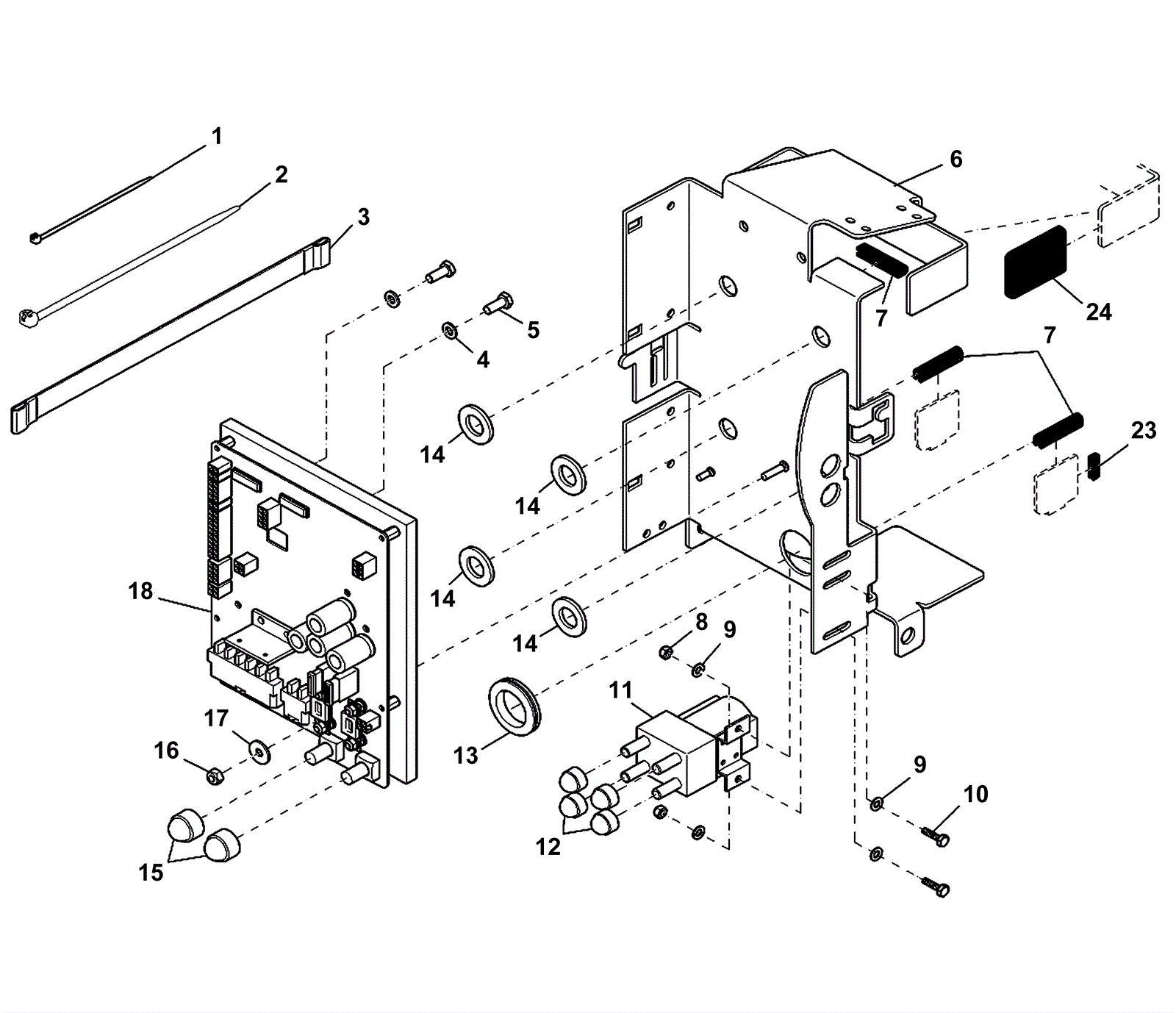

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-6185
|
Cable tie large |
4 |
|
|
2 |
997-2102
|
Cable tie |
8 |
|
|
3 |
174-8962
|
Webbing |
1 |
|
|
4 |
999-1261
|
Washer M6 flat stainless steel |
2 |
|
|
5 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
6 |
174-3518
|
Controller bracket |
1 |
|
|
7 |
174-8958
|
Edge protection (Sold by the foot) |
5 in |
|
|
8 |
999-0953
|
Nut M5-.8 hex nylon insert lock stainless steel |
2 |
|
|
9 |
999-9100
|
Washer M5 flat stainless steel |
4 |
|
|
10 |
174-9620
|
Bolt M5-.8 x 16 hex head |
2 |
|
|
11 |
174-8373
|
24V main relay 2 pole 125 amp |
1 |
|
|
12 |
174-8291
|
Nut cover safety cap M8 |
4 |
|
|
13 |
174-3494
|
Cable sleeve |
1 |
|
|
14 |
174-9619
|
Rubber washer |
4 |
|
|
15 |
174-8963
|
Protective cap |
2 |
|
|
16 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
17 |
999-1261
|
Washer M6 flat stainless steel |
1 |
|
|
18a |
374-3186
|
Control board (OBSOLETE) |
1 |
|
|
18b |
274-1693
|
FUSE, STRIP 125AMP 80VOLT- MAIN |
1 |
|
|
18c |
174-3520
|
Fuse |
1 |
|
|
18d |
374-0610
|
FUSE, 5AMP 32VOLT |
1 |
|
|
18e |
N/A
|
Not available |
1 |
(fuse) |
|
18f |
174-8965
|
50amp fuse |
1 |
|
|
23 |
174-8958
|
Edge protection (Sold by the foot) |
1 in |
|
|
24 |
174-3521
|
Cap |
2 |
|
|
