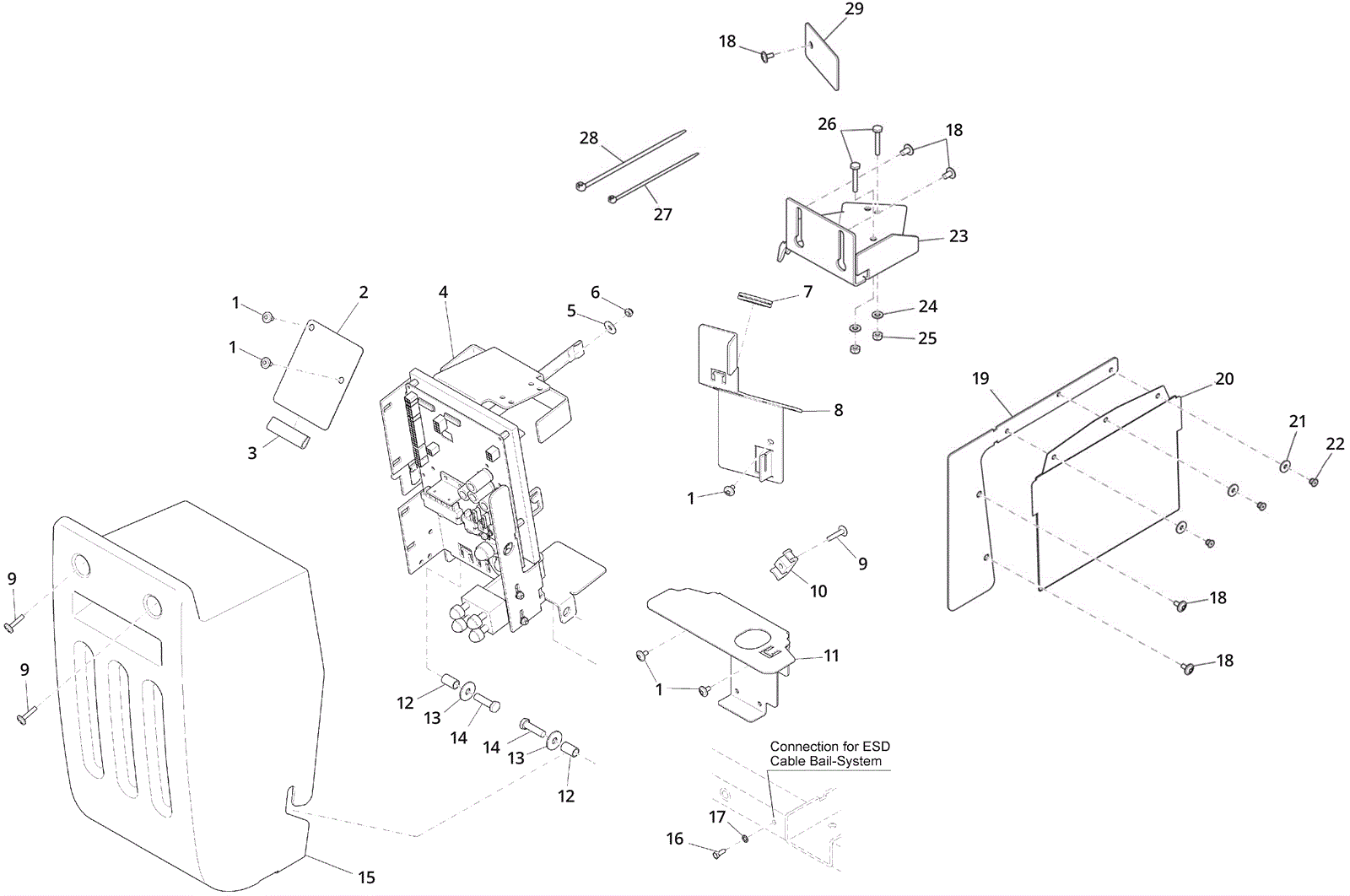

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1514
|
Screw M6-1 x 10mm button head socket stainless steel |
5 |
|
|
2 |
174-8981
|
Cover plate |
1 |
|
|
3 |
174-8982
|
Edge protection |
1 |
|
|
4 |
174-6593
|
Retainer |
1 |
|
|
5 |
999-1261
|
Washer M6 flat stainless steel |
1 |
|
|
6 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
7 |
174-3494
|
Cable sleeve |
1 |
|
|
8 |
174-3495
|
Cover plate bracket |
1 |
|
|
9 |
174-8494
|
Screw M6-1 x 25mm with flange |
3 |
|
|
10 |
174-3500
|
Clamp |
1 |
|
|
11 |
174-3501
|
Clamping plate |
1 |
|
|
12 |
174-8983
|
Bushing |
2 |
|
|
13 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
14 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
2 |
|
|
15 |
174-8984
|
Electrical panel cover |
1 |
|
|
16 |
174-6594
|
Tapping screw |
1 |
|
|
17 |
999-1594
|
Washer M5 external lock stainless steel |
1 |
|
|
18 |
999-1514
|
Screw M6-1 x 10mm button head socket stainless steel |
2 |
|
|
19 |
174-8986
|
Bracket |
1 |
|
|
20 |
174-8987
|
Pouch |
1 |
|
|
21 |
999-9100
|
Washer M5 flat stainless steel |
3 |
|
|
22 |
174-8988
|
Blind rivet |
3 |
|
|
23 |
174-3497
|
Bag bracket |
1 |
|
|
24 |
999-1261
|
Washer M6 flat stainless steel |
2 |
|
|
25 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
26 |
999-0781
|
Screw M6-1 x 45mm hex head |
2 |
|
|
27 |
997-2102
|
Cable tie |
12 |
|
|
28 |
174-6185
|
Cable tie large |
18 |
|
|
29 |
174-8989
|
Wiring retainer plate |
1 |
|
|
N/S |
174-6598
|
Wiring harness w1 c |
1 |
|
|
N/S |
274-7138
|
WIRING HARNESS W2 |
1 |
|
|
N/S |
174-6599
|
Wiring harness w3 c |
1 |
|
|
N/S |
174-6600
|
Wiring harness w9 c |
1 |
|
|
N/S |
274-7922
|
WIRING HARNESS W11 C |
1 |
|
|
N/S |
174-6601
|
2 piece cable set |
1 |
|
|
N/S |
174-6602
|
3 piece battery cable set |
1 |
|
|
N/S |
174-4186
|
Cable loom |
1 |
|
|
