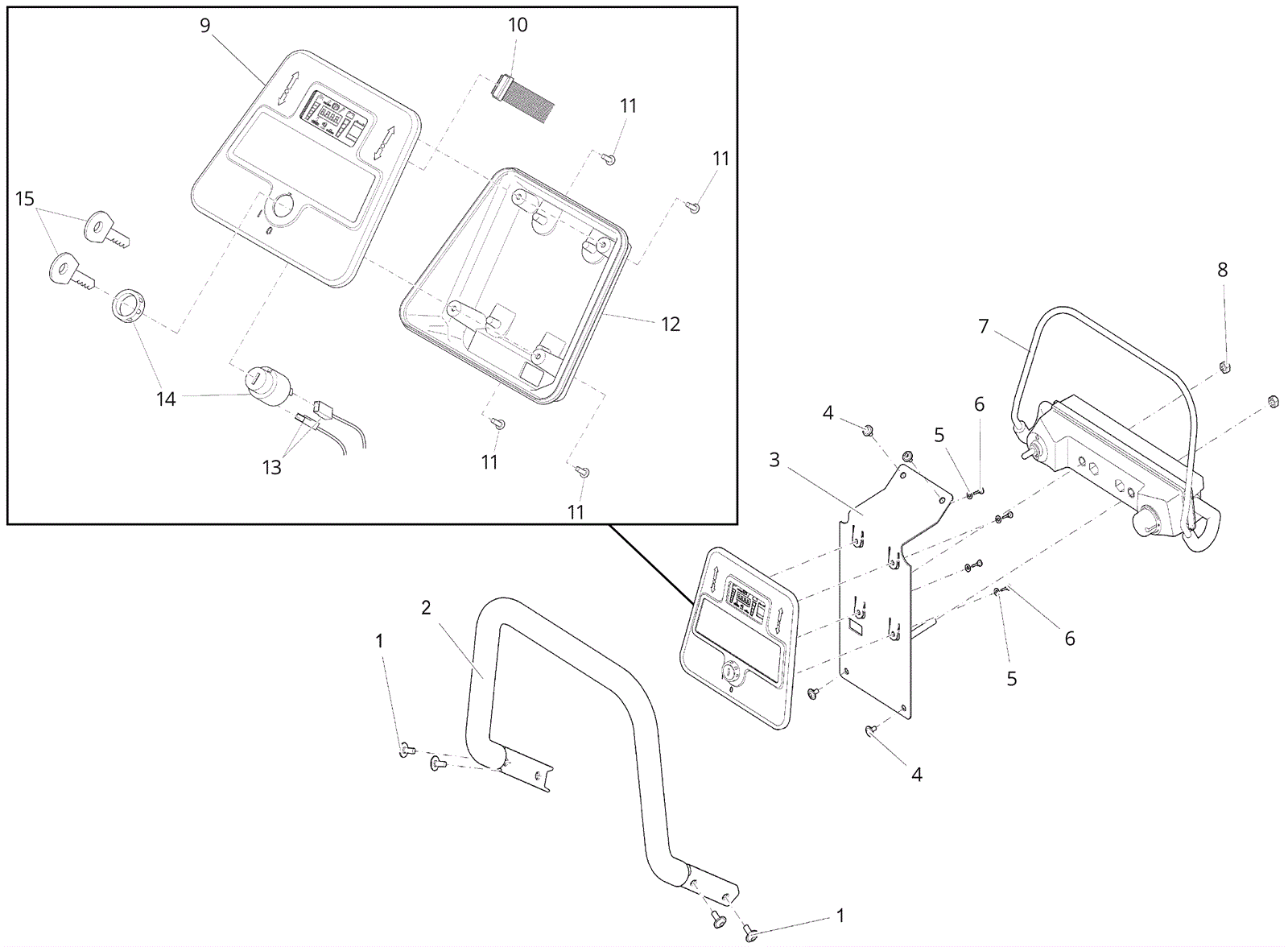

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1514
|
Screw M6-1 x 10mm button head socket stainless steel |
4 |
|
|
2 |
174-6584
|
Handle bar |
1 |
|
|
3 |
174-8921
|
Panel mount bracket |
1 |
|
|
4 |
999-1514
|
Screw M6-1 x 10mm button head socket stainless steel |
4 |
|
|
5 |
999-9089
|
Washer M4 flat stainless steel |
4 |
|
|
6 |
174-8902
|
Self tapping screw |
4 |
|
|
7 |
174-8922
|
Bail system |
1 |
|
|
8 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
9 |
274-8262
|
DASH PANEL, E26 |
1 |
(includes 10-15) |
|
10 |
174-8911
|
Ribbon cable |
1 |
|
|
11 |
174-8912
|
Screw |
4 |
|
|
12 |
174-3488
|
Console back |
1 |
|
|
13 |
174-8913
|
Cable |
1 |
|
|
14 |
174-8914
|
Key switch |
1 |
|
|
15 |
174-7079
|
Key (set of 2) |
1 |
|
|
