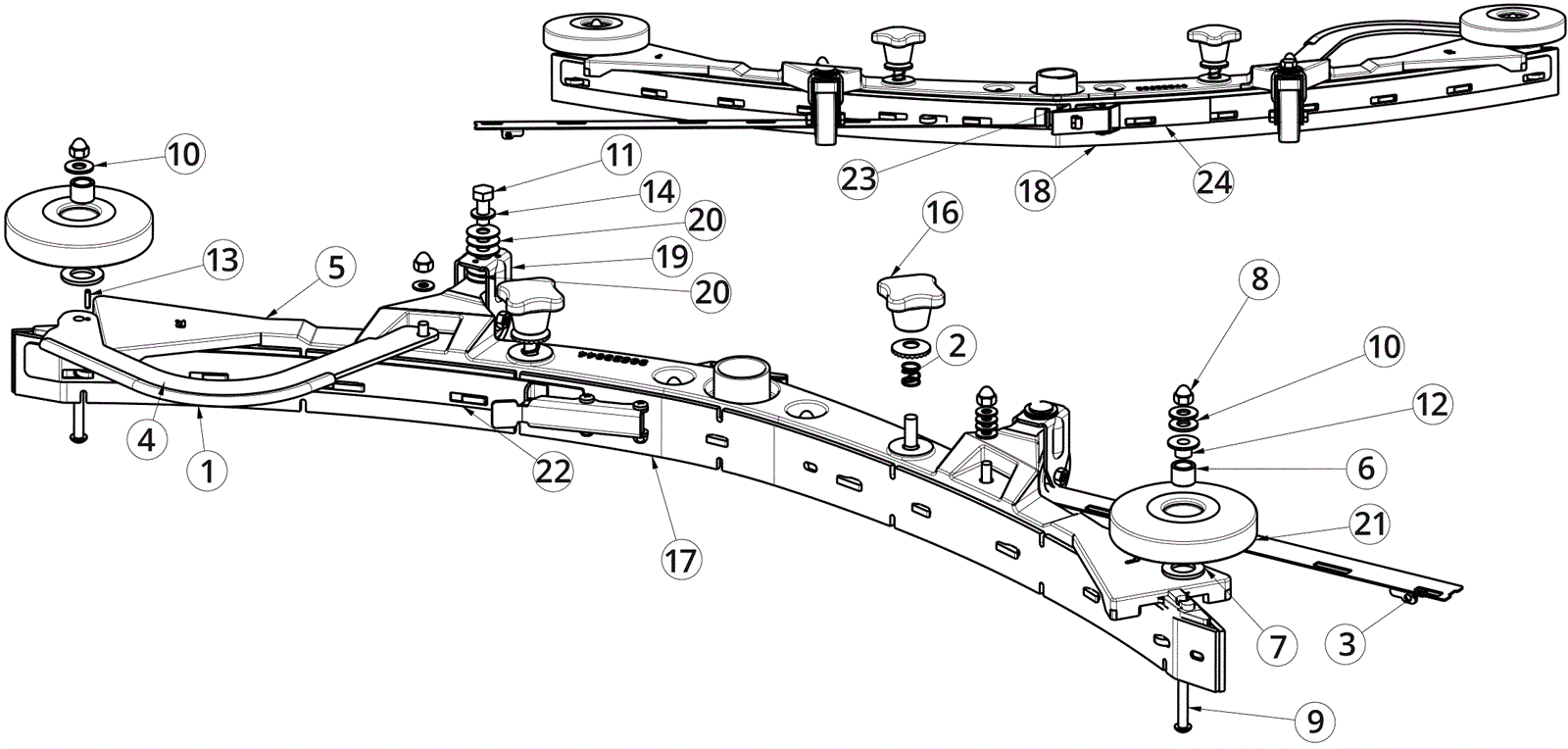

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-8326
|
Edge trim black 5/16 x 10 inch |
1 |
|
|
2 |
374-1935
|
SPRING, COMP .4 ID X .5FL SS |
2 |
|
|
3 |
274-5745
|
STRAP W/ LATCH, FRONT LEFT, 38 inch SQG |
1 |
|
|
4 |
174-9438
|
38 inch squeegee bumper |
1 |
|
|
5 |
274-8804
|
38 inch SQG BASE ASSY, C.S. SEE NOTES (OBSOLETE) |
1 |
|
|
6 |
174-8328
|
Bushing |
2 |
|
|
7 |
999-0349
|
Washer 5/8 SAE flat |
2 |
|
|
8 |
999-1344
|
Nut 1/4-20 acorn stainless steel |
2 |
|
|
9 |
999-0621
|
Screw 1/4-20 x 3 truss head slotted stainless steel |
2 |
|
|
10 |
174-8251
|
Washer flat stainless steel |
3 |
|
|
11 |
999-9092
|
Screw M8-1.25 x 20mm hex head stainless steel |
2 |
|
|
12 |
374-1803
|
BUSHING-FLG .31 X .435 X .325 NYL |
1 |
|
|
13 |
274-9820
|
Pin-roll |
1 |
|
|
14 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
15 |
174-8669
|
Washer M10.6 serrated tooth |
2 |
|
|
16 |
174-8339
|
Star knob |
2 |
|
|
17 |
174-8180
|
Squeegee blade front polyurethane |
1 |
|
|
18 |
174-8179
|
Squeegee blade rear polyurethane |
1 |
|
|
19 |
174-8933
|
Fixed caster |
2 |
|
|
20 |
374-1931
|
Washer flat 8.3 x 22 x 1.00mm stainless steel |
10 |
|
|
21 |
174-8932
|
4 inch plastic roller |
2 |
|
|
22 |
174-7104
|
Front right tension band |
1 |
|
|
23 |
174-3539
|
Rear left tension band |
1 |
|
|
24 |
174-3541
|
Rear right tension band |
1 |
|
|
