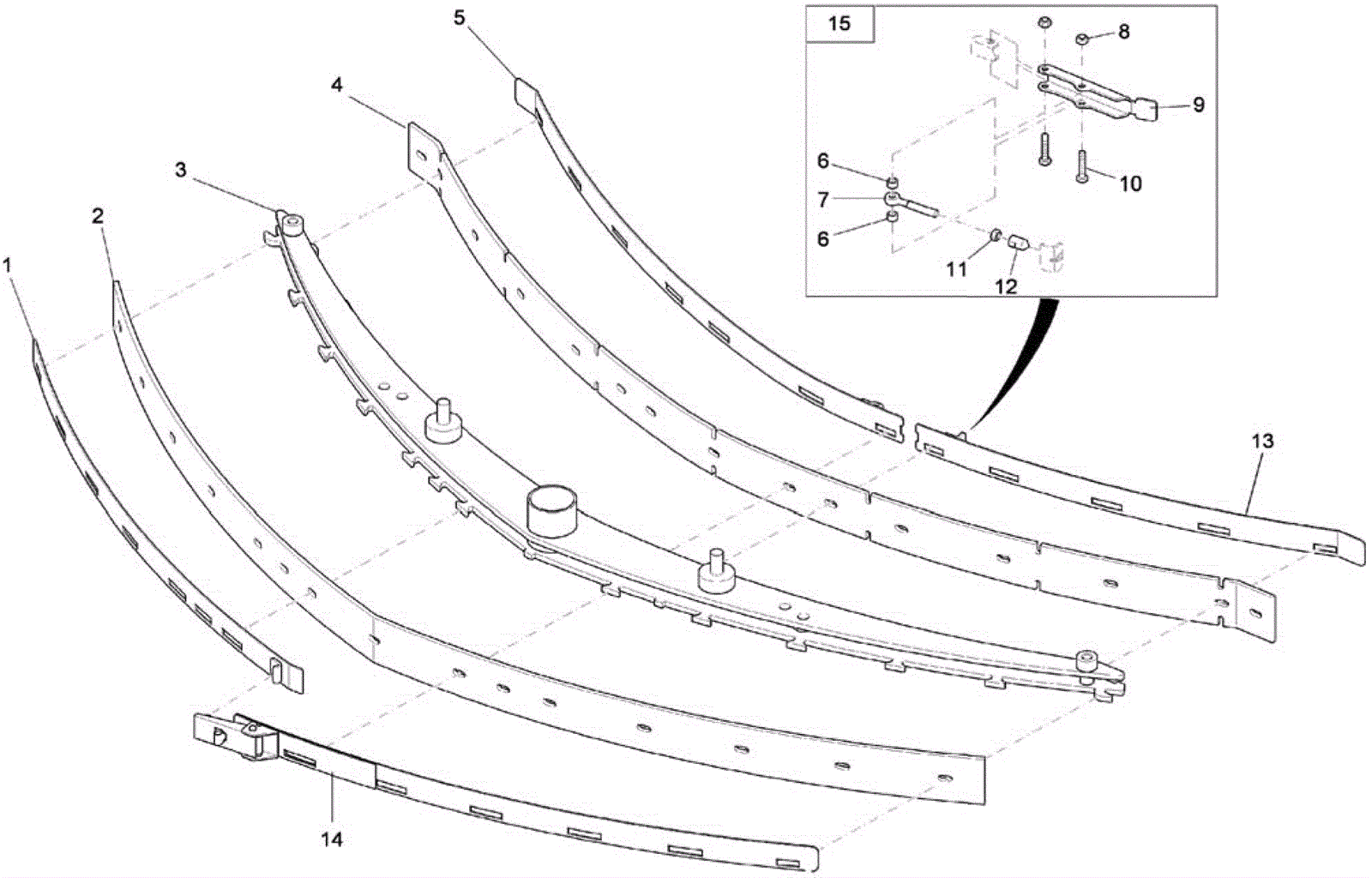

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-3539
|
Rear left tension band |
1 |
|
|
2 |
174-8179
|
Squeegee blade rear polyurethane |
1 |
|
|
3 |
274-8804
|
38 inch SQG BASE ASSY, C.S. SEE NOTES (OBSOLETE) |
1 |
|
|
4 |
174-8180
|
Squeegee blade front polyurethane |
1 |
|
|
5 |
174-7103
|
Front left tension band |
1 |
|
|
6 |
174-8328
|
Bushing |
2 |
|
|
7 |
174-8338
|
Bolt M5 x 40mm eye stainless steel |
1 |
|
|
8 |
999-1344
|
Nut 1/4-20 acorn stainless steel |
2 |
|
|
9 |
174-8327
|
Lever |
1 |
|
|
10 |
999-0621
|
Screw 1/4-20 x 3 truss head slotted stainless steel |
2 |
|
|
11 |
999-0740
|
Nut M5-.8 hex stainless steel |
1 |
|
|
12 |
174-8341
|
Pressure pin |
1 |
|
|
13 |
174-7104
|
Front right tension band |
1 |
|
|
14 |
174-3541
|
Rear right tension band |
1 |
|
|
15 |
274-5745
|
STRAP W/ LATCH, FRONT LEFT, 38 inch SQG |
1 |
(includes 6-12) |
|
