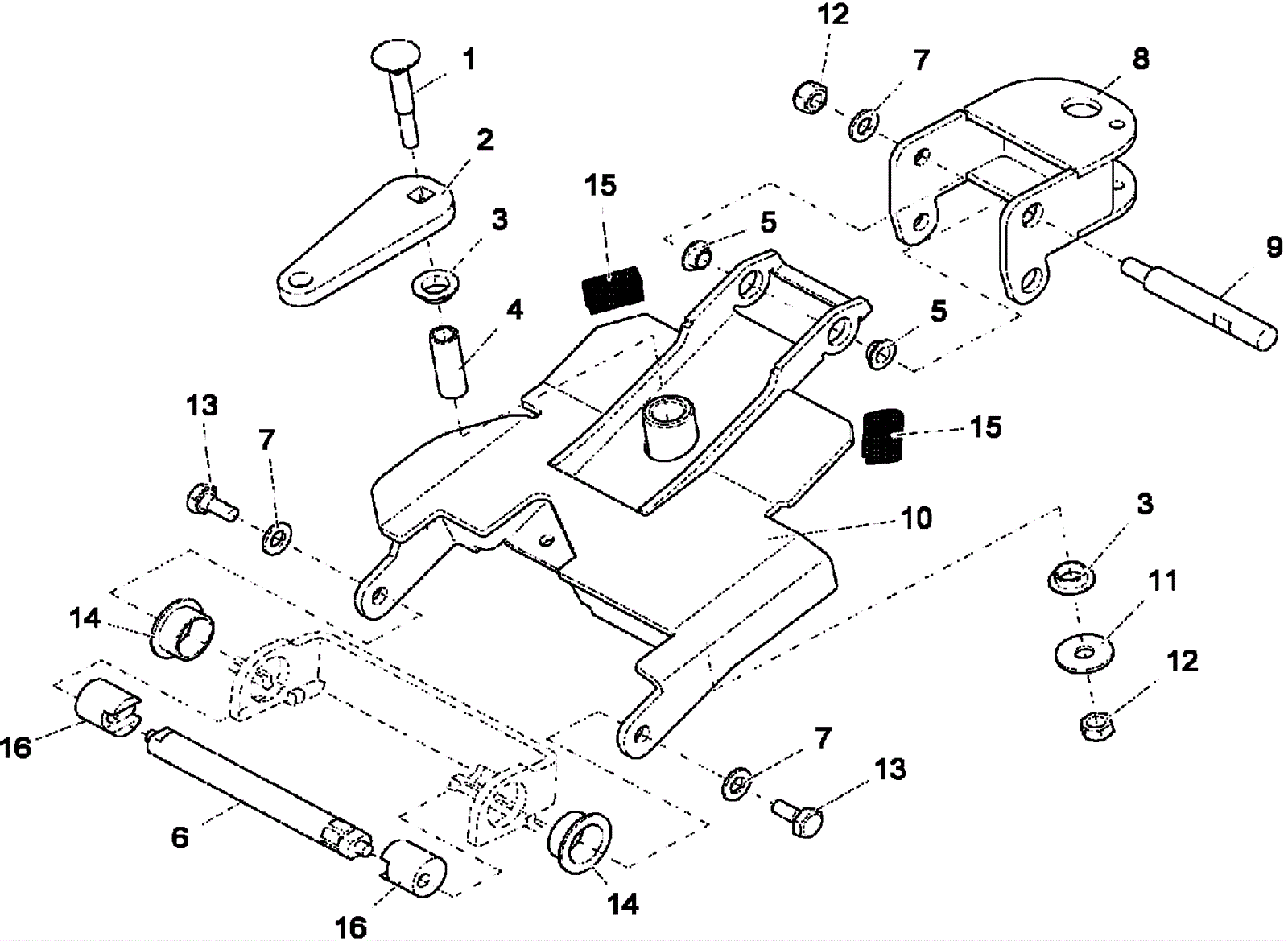

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-9642
|
Bolt M8-1.25 x 55mm carriage head |
1 |
|
|
2 |
174-8999
|
Cable attach pivot |
1 |
|
|
3 |
174-8992
|
Slide bearing |
2 |
|
|
4 |
174-3505
|
Bushing |
1 |
|
|
5 |
174-8974
|
Bushing |
2 |
|
|
6 |
174-4153
|
Shaft |
1 |
|
|
7 |
999-9097
|
Washer M8 flat stainless steel |
3 |
|
|
8 |
174-3506
|
Squeegee bracket |
1 |
|
|
9 |
174-9644
|
Threaded pin |
3 |
|
|
10 |
174-3507
|
Connection bracket |
1 |
|
|
11 |
999-9097
|
Washer M8 flat stainless steel |
1 |
|
|
12 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
|
13 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
2 |
|
|
14 |
374-2358
|
SLIDE BEARING BUSH |
2 |
|
|
15 |
174-8982
|
Edge protection |
2 in |
|
|
16 |
174-3508
|
Bearing |
2 |
|
|
