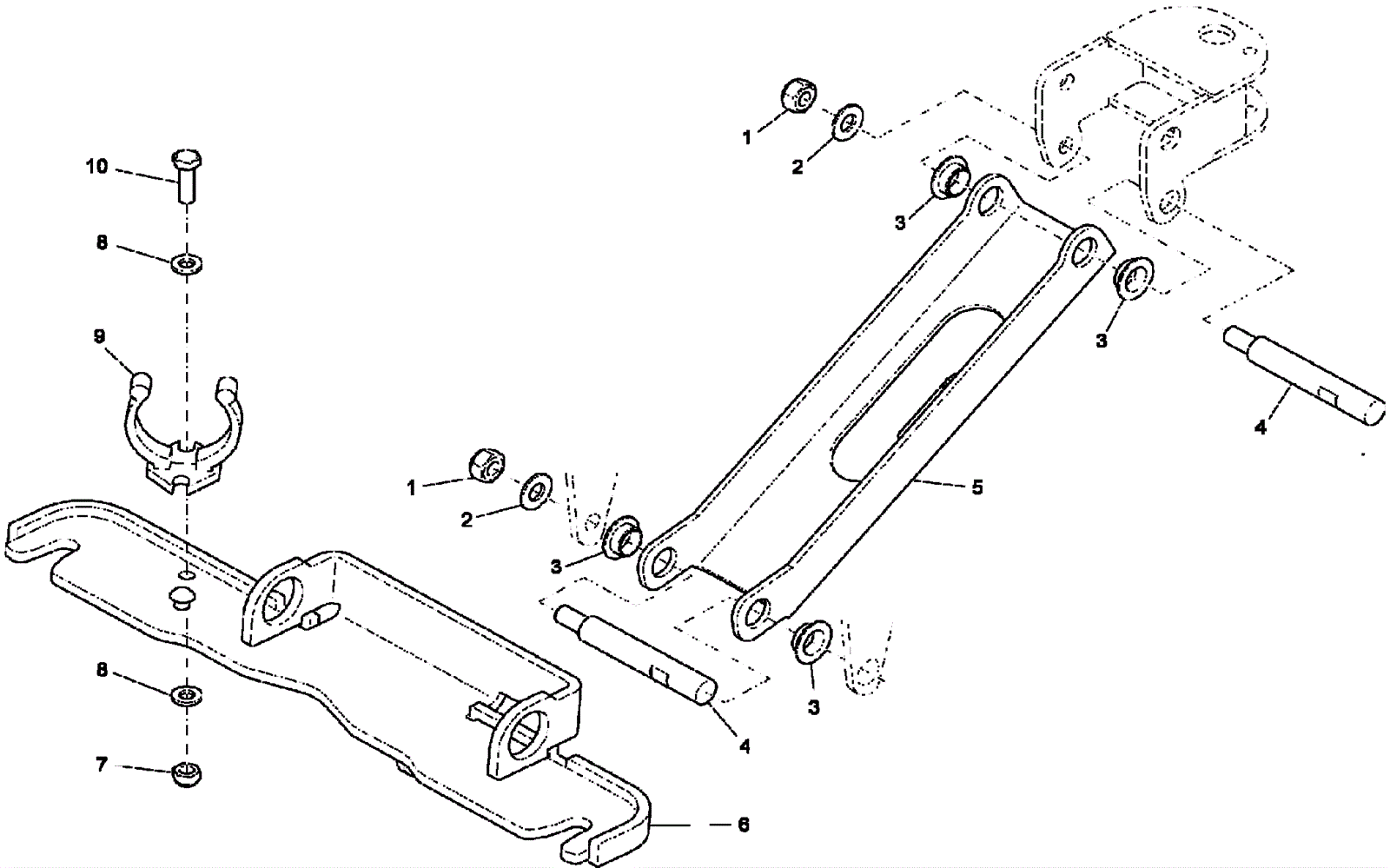

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
2 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
3 |
174-8974
|
Bushing |
2 |
|
|
4 |
174-9644
|
Threaded pin |
3 |
|
|
5 |
174-9652
|
Control arm |
1 |
|
|
6 |
174-3502
|
Control arm bracket |
1 |
|
|
7 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
8 |
999-1261
|
Washer M6 flat stainless steel |
2 |
|
|
9 |
174-8926
|
Hose support |
1 |
|
|
10 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
