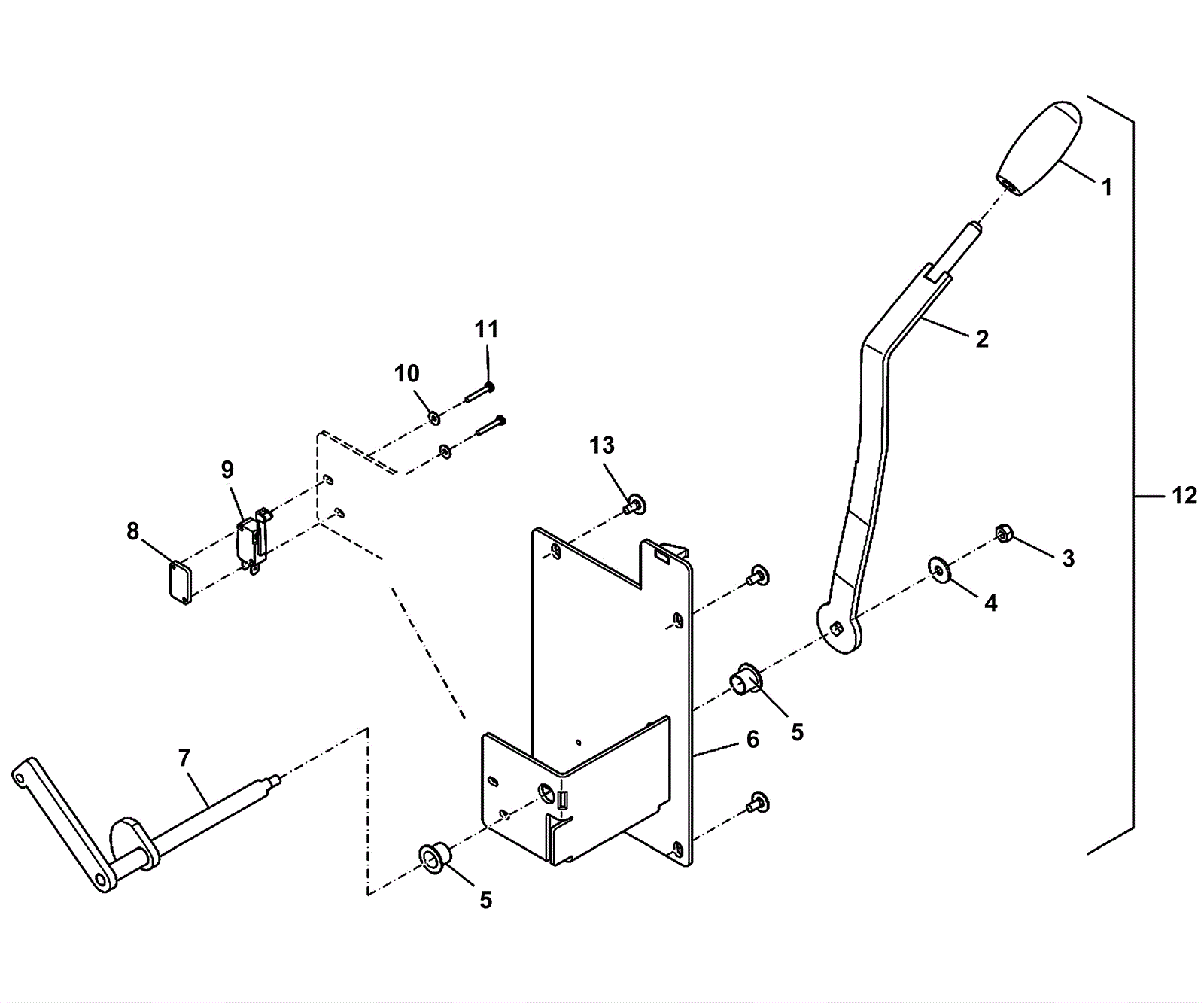

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-8927
|
Handle |
1 |
|
|
2 |
274-3328
|
Squeegee lift lever weldment |
1 |
|
|
3 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
4 |
999-1261
|
Washer M6 flat stainless steel |
1 |
|
|
5 |
174-8928
|
Slide bearing bushing |
2 |
|
|
6 |
174-3510
|
Support plate |
1 |
|
|
7 |
174-8929
|
Shaft |
1 |
|
|
8 |
174-8930
|
Threaded switch mount plate |
1 |
|
|
9 |
174-8931
|
Micro switch |
1 |
|
|
10 |
999-1521
|
Washer M3 flat stainless steel |
2 |
|
|
11 |
999-1897
|
Screw M3-.5 x 20mm hex head |
2 |
|
|
12 |
174-3511
|
Squeegee lift assembly |
1 |
(includes 1-11, 13) |
|
13 |
999-1514
|
Screw M6-1 x 10mm button head socket stainless steel |
4 |
|
|
