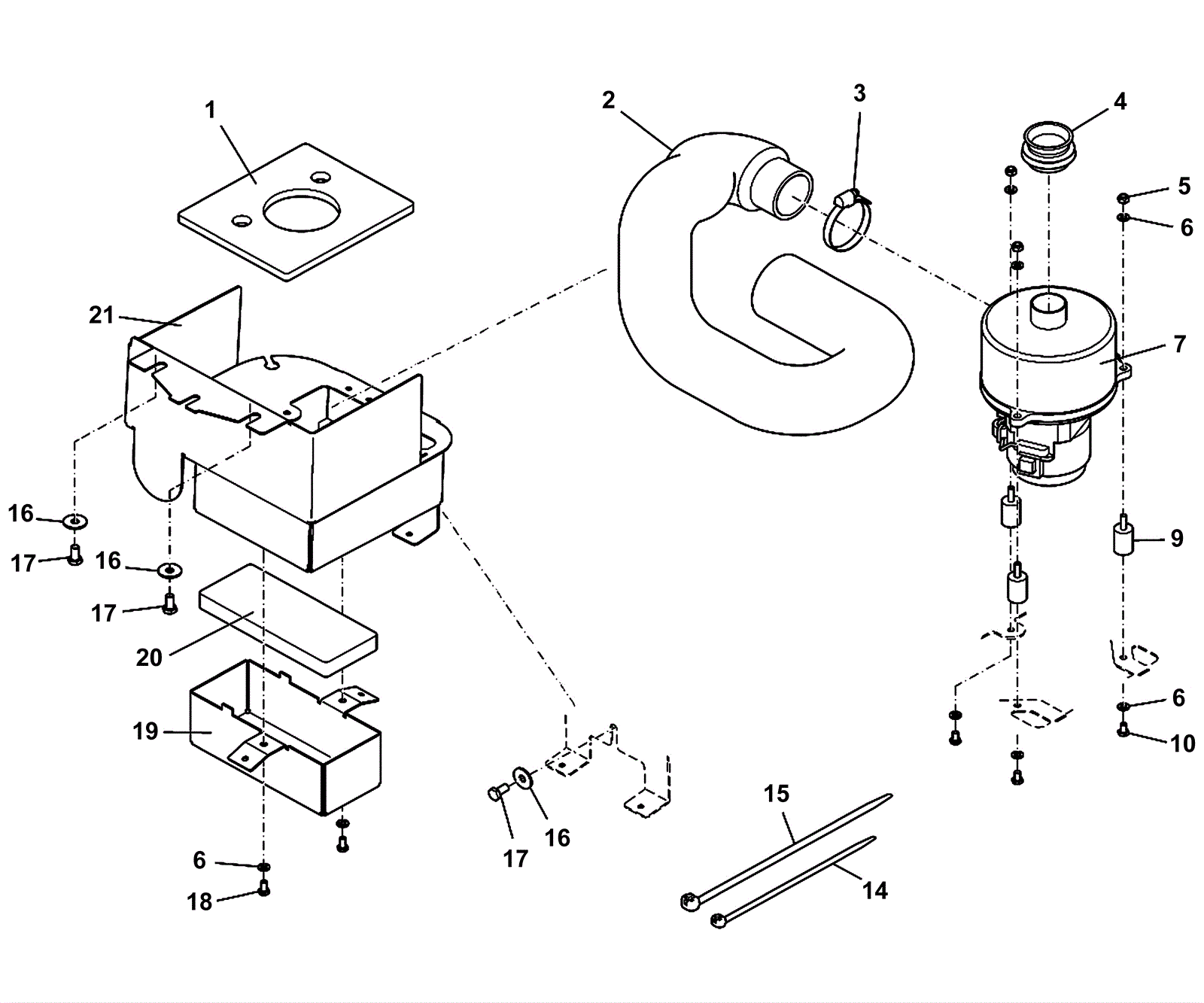

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-3533
|
Gasket |
1 |
|
|
2 |
174-8949
|
Exhaust hose |
1 |
|
|
3 |
174-1624
|
2 1/2 Hose clamp |
1 |
|
|
4 |
174-8950
|
Connection |
1 |
|
|
5 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
3 |
|
|
6 |
999-1261
|
Washer M6 flat stainless steel |
8 |
|
|
7a |
174-8495
|
24V vacuum motor |
1 |
|
|
7b |
174-9437
|
Carbon brush |
4 |
|
|
9 |
174-8951
|
Isolator mount |
3 |
|
|
10 |
999-0778
|
Screw M6-1 x 10mm hex head |
3 |
|
|
14 |
997-2102
|
Cable tie |
1 |
|
|
15 |
174-6185
|
Cable tie large |
4 |
|
|
16 |
999-9097
|
Washer M8 flat stainless steel |
3 |
|
|
17 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
3 |
|
|
18 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
2 |
|
|
19 |
174-3536
|
Cover |
1 |
|
|
20 |
174-3537
|
Gasket |
1 |
|
|
21 |
174-3538
|
Vacuum motor housing |
1 |
|
|
