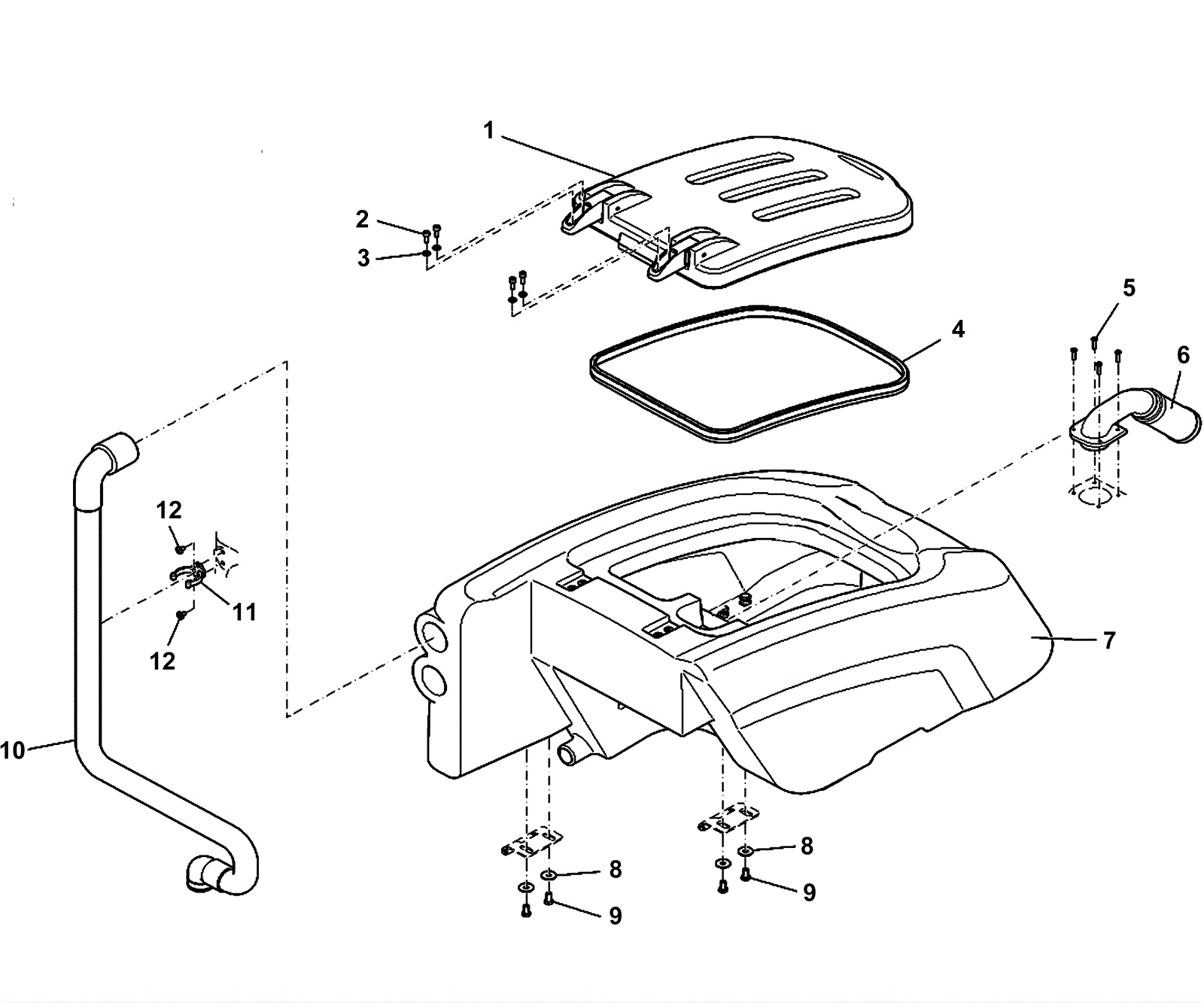

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
274-7139
|
Recovery tank lid assembly |
1 |
|
|
2 |
999-1647
|
Screw M6-1 x 16mm socket head stainless steel |
4 |
|
|
3 |
999-1261
|
Washer M6 flat stainless steel |
4 |
|
|
4 |
174-8923
|
Gasket (sold by the foot) |
5 ft |
|
|
5 |
174-9629
|
Screw M5 x 20mm EJOT PT stainless steel |
4 |
|
|
6 |
174-8924
|
Filter |
1 |
|
|
7 |
174-8925
|
Recovery tank |
1 |
|
|
8 |
999-9097
|
Washer M8 flat stainless steel |
4 |
|
|
9 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
4 |
|
|
10 |
274-9976
|
Squeegee vacuum hose |
1 |
|
|
11 |
174-8926
|
Hose support |
1 |
|
|
12 |
999-1514
|
Screw M6-1 x 10mm button head socket stainless steel |
2 |
|
|
