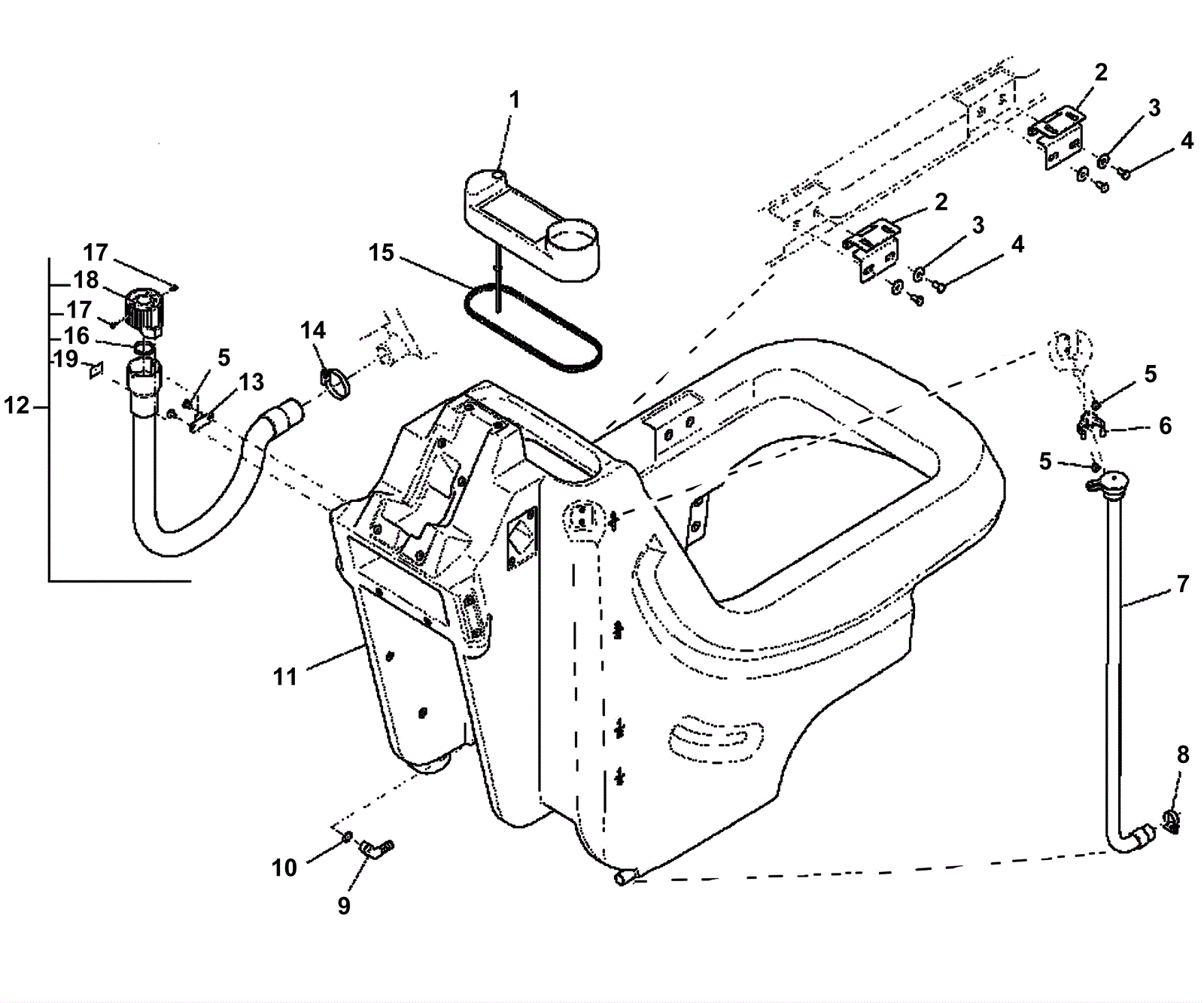

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-8952
|
Solution tank lid |
1 |
|
|
2 |
174-8953
|
Tank hinge |
2 |
|
|
3 |
999-9097
|
Washer M8 flat stainless steel |
4 |
|
|
4 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
4 |
|
|
5 |
999-1514
|
Screw M6-1 x 10mm button head socket stainless steel |
4 |
|
|
6 |
174-8926
|
Hose support |
1 |
|
|
7 |
174-8954
|
Hose |
1 |
|
|
8 |
174-3516
|
Hose clamp |
1 |
|
|
9 |
174-8955
|
Hose barb elbow fitting |
1 |
|
|
10 |
174-8956
|
O-ring |
1 |
|
|
11 |
174-7059
|
Solution tank |
1 |
|
|
12 |
174-8455
|
Drain hose assembly |
1 |
(includes 16-19) |
|
13 |
174-8957
|
Hook |
1 |
|
|
14 |
997-2000
|
Hose clamp |
1 |
|
|
15 |
174-8958
|
Edge protection (Sold by the foot) |
30 in |
|
|
16 |
174-8959
|
O-ring |
1 |
|
|
17 |
999-9101
|
Screw M4-.7 x 10mm pan head stainless steel |
2 |
|
|
18 |
174-8960
|
Drain hose cap |
1 |
|
|
19 |
174-8961
|
Decal |
1 |
|
|
