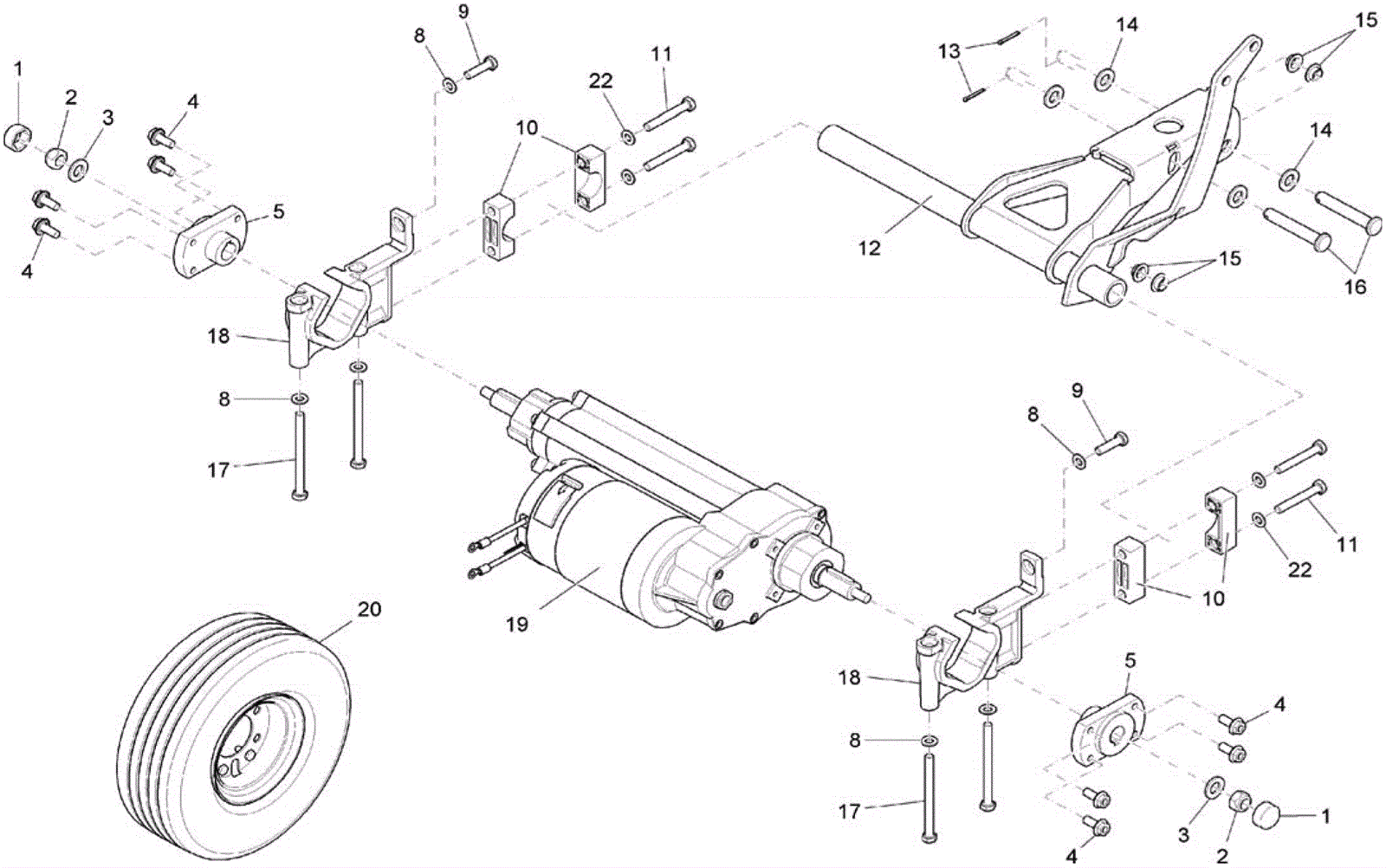

Drive Assembly

#PartDescription ReqNotesAvailability
1 174-8990 Protection cap 2
2 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel 2
3 374-0693 Washer M13 2
4 174-9637 Bolt M8-1.25 x 20mm hex head flange 8
5 174-3546 Transaxle hub 2
8 999-9097 Washer M8 flat stainless steel 8
9 999-0785 Screw M8-1.25 x 30mm hex head stainless steel 2
10 274-0028 BEARING BLOCK, NYLON 4
11 999-1692 Screw M8-1.25 x 50mm hex stainless steel 4
12 174-9435 Deck lift lever weldment 1
13 174-7161 Cotter pin 2
14 374-0693 Washer M13 4
15 174-8992 Slide bearing 4
16 174-9639 Clevis pin 2
17 999-9159 Bolt M8-1.0 x 100mm hex cap 4
18 174-8993 Transaxle mounting bracket 2
19 174-8994 Transaxle 1
20 274-8058 WHEEL, 250x79, SOLID URETHANE YELLOW 2
22 999-9097 Washer M8 flat stainless steel 4
