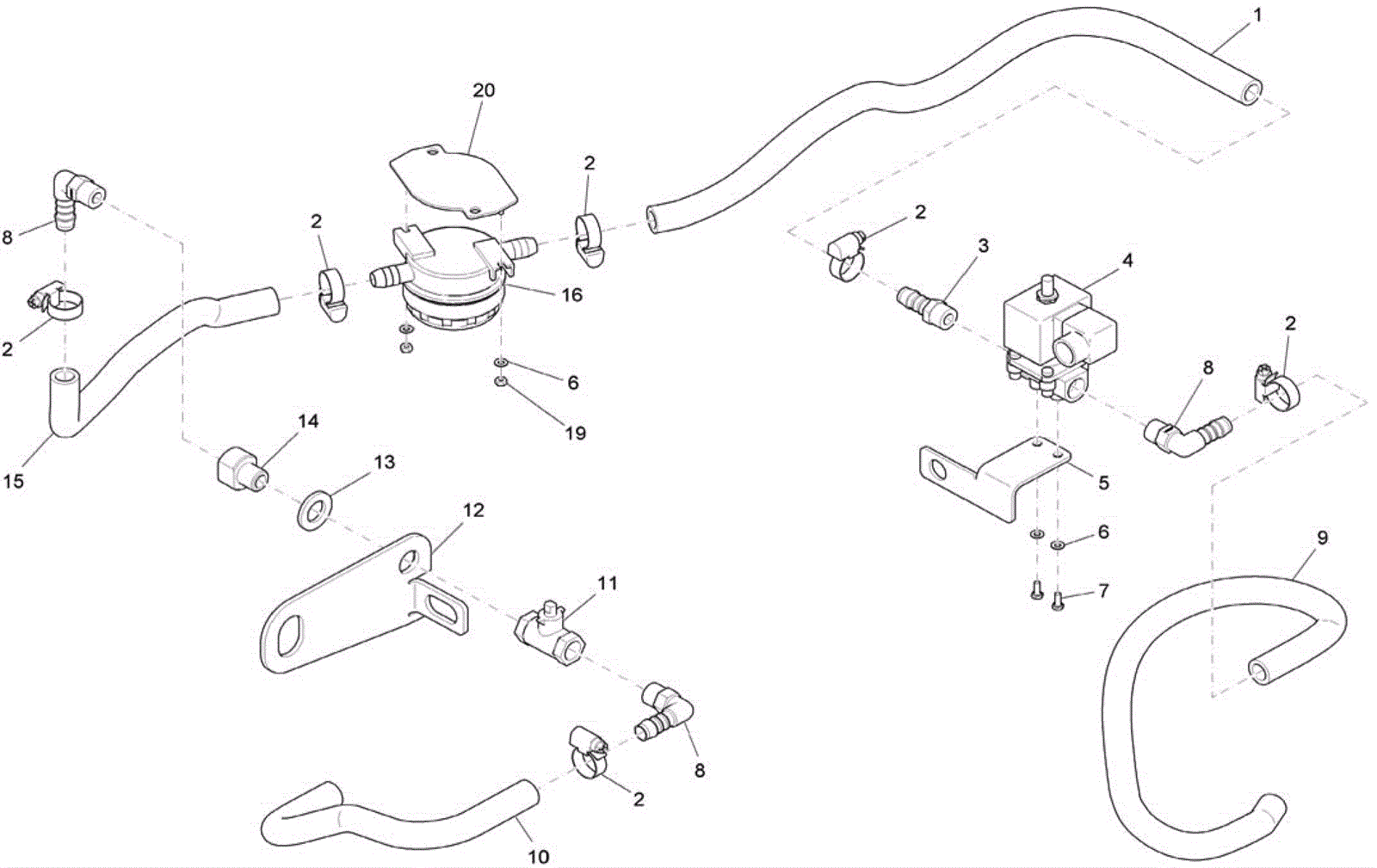

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-9631
|
PVC hose (Sold by the Meter) |
22 in |
|
|
2 |
174-1628
|
Hose clamp |
6 |
|
|
3 |
174-9632
|
Straight hose barb fitting |
1 |
|
|
4 |
174-9633
|
24V solenoid valve |
1 |
|
|
5 |
174-3490
|
Solenoid valve bracket |
1 |
|
|
6 |
999-9089
|
Washer M4 flat stainless steel |
4 |
|
|
7 |
999-9104
|
Screw M4-.7 x 10mm hex head stainless steel |
2 |
|
|
8 |
174-8955
|
Hose barb elbow fitting |
3 |
|
|
9 |
174-9631
|
PVC hose (Sold by the Meter) |
21 in |
|
|
10 |
174-9631
|
PVC hose (Sold by the Meter) |
11 in |
|
|
11 |
174-9634
|
Ball valve |
1 |
|
|
12 |
174-3491
|
Ball valve bracket |
1 |
|
|
13 |
174-9621
|
Washer M17 flat |
1 |
|
|
14 |
174-9622
|
Threaded fitting |
1 |
|
|
15 |
174-9631
|
PVC hose (Sold by the Meter) |
13 in |
|
|
16 |
174-3670
|
Water filter assembly |
1 |
|
|
19 |
999-0955
|
Nut M4-.7 hex nylon lock |
2 |
|
|
20 |
174-9635
|
Water filter bracket |
1 |
|
|
