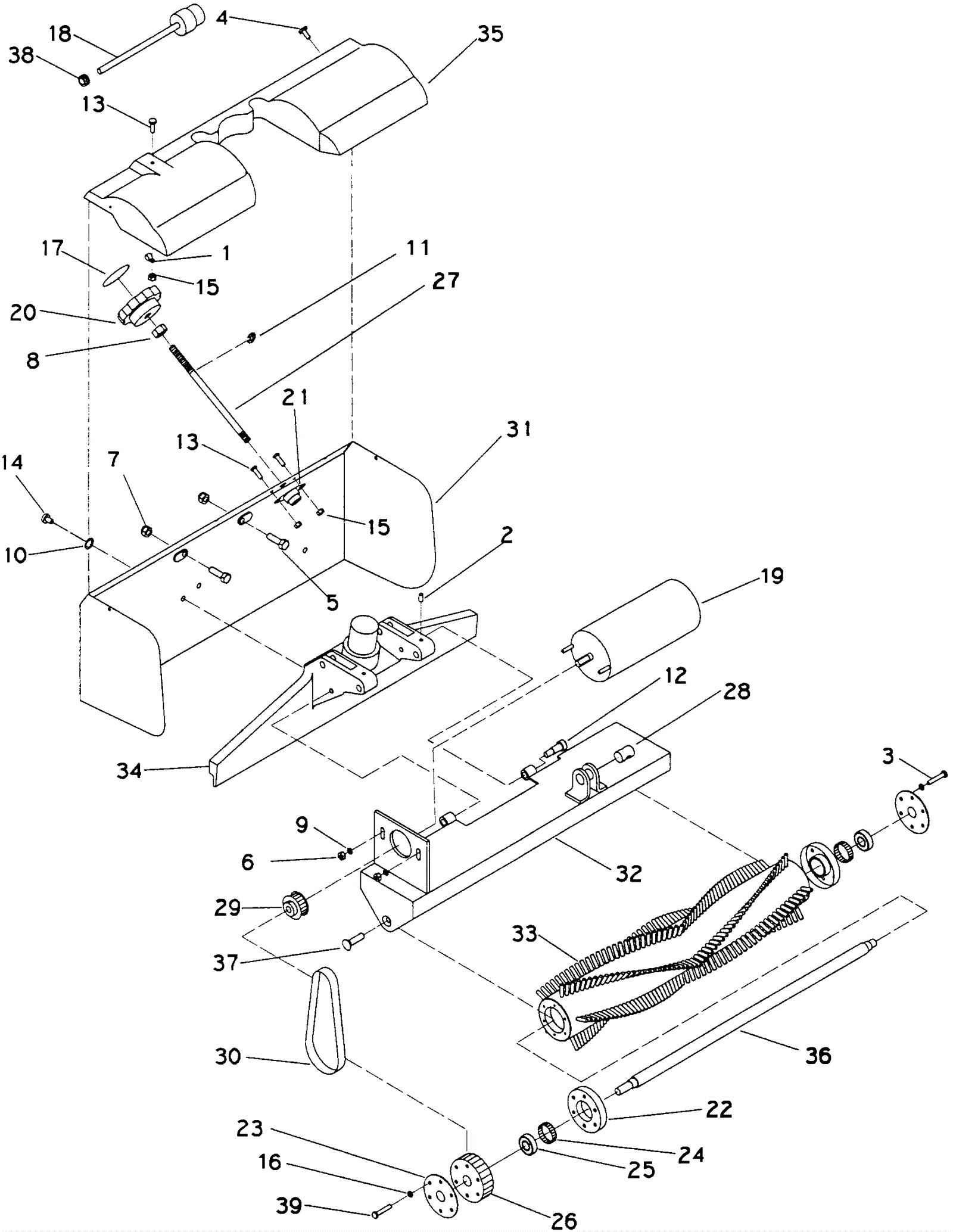

ACS 20 Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-0058 Plastic cable clamp $1.18 1 usually ships 1-5 days
2 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
3 174-1283 Screw 10 x 3/4 self tapping button head $0.97 6 usually ships 1-5 days
4 174-5991 Screw #10 x 5/8 plated hi/low $0.99 5 usually ships 4-14 days
5 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 2 ships same day
6 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
7 999-0958 Nut 5/16-18 acorn stainless steel $10.11 2 ships same day
8 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 1 ships same day
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
10 174-5227 Washer 1/4 steel plated $0.97 10 usually ships 4-14 days
11 174-0140 Retaining ring $1.08 1 usually ships 4-14 days
12 999-0492 Bolt 3/8 x 3/4 x 5/16 shoulder socket head $1.91 2 ships same day
13 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 3 ships same day
14 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 10 ships same day
15 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 3 ships same day
16 999-0089 Washer #10 internal star lock zinc plated $0.99 12 ships same day
17 174-1292 Brush pressure decal $4.90 1 usually ships 1-5 days
18 174-1293 Brush power cord $61.15 1 usually ships 1-5 days
19 174-1294 120V brush motor $270.10 1 usually ships 4-14 days
20 174-1295 Threaded adjustment knob 3/8 x 16 $9.31 1 usually ships 4-14 days
21 174-5239 Flanged bearing $75.83 1 usually ships 1-5 days
22 174-2189 Bearing cup $39.20 2 usually ships 4-14 days
23 174-2190 Bearing cover $10.00 2 usually ships 1-5 days
24 174-2194 Retaining ring $6.88 2 usually ships 4-14 days
25 174-2195 Bearing $20.92 2 usually ships 4-14 days
26 174-1296 Pulley wheel $61.37 1 usually ships 1-5 days
27 174-1297 Threaded adjustment rod $27.87 1 usually ships 1-5 days
28 174-1298 Pivot shaft $20.92 1 usually ships 1-5 days
29 174-3248 Pulley $42.27 1 usually ships 4-14 days
30 174-3249 Belt $41.03 1 usually ships 4-14 days
31 274-9299 KIT AMBASSADOR 20 VAC SHOE REPL $570.79 1 usually ships 1-5 days
32 174-1300 Brush bracket $209.13 1 usually ships 4-14 days
33 174-1301 Brush $225.15 1 usually ships 4-14 days
34 274-9299 KIT AMBASSADOR 20 VAC SHOE REPL $570.79 1 usually ships 1-5 days
35 174-1303 Brush cover $93.70 1 usually ships 1-5 days
36 174-1304 Axle $93.73 1 usually ships 4-14 days
37 174-5241 Screw 5/16 x 18 x .5/8 socket cap $0.97 2 usually ships 4-14 days
38 174-3031 Grommet $1.24 1 usually ships 1-5 days
39 174-2402 Screw 10 x 1 1/4 pan head $0.97 6 usually ships 1-5 days
