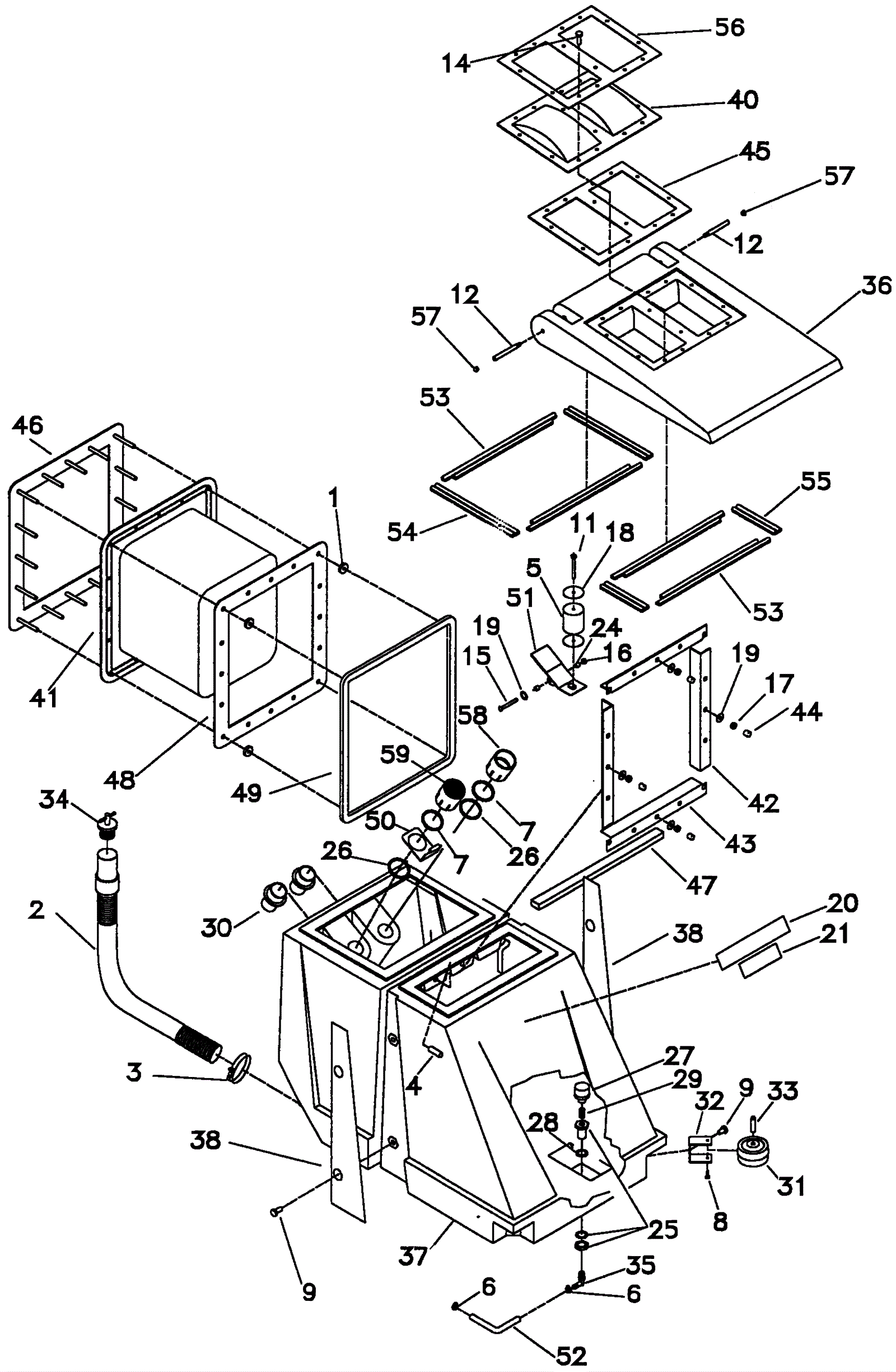

ACS 20 Upper Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-1305 Grommet $3.33 4 usually ships 4-14 days
2 174-0088 Drain hose assembly $38.59 1 usually ships 4-14 days
3 997-2000 Hose clamp $2.37 1 ships same day
4 174-1306 Tube $2.66 1 usually ships 1-5 days
5 174-0722 Float $5.83 1 usually ships 4-14 days
6 997-2001 Hose clamp $2.42 2 ships same day
7 174-0051 Washer stainless steel $0.95 2 ships same day
8 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
9 999-0616 Screw 3/8-16 x 5/8 socket head alloy plain finish $0.99 6 ships same day
11 999-0610 Screw 1/4-20 x 2 1/2 pan head phillips stainless steel $0.99 1 ships same day
12 174-1307 Screw 1/4-20 x 2 7/8 shoulder $10.40 2 usually ships 1-5 days
15 999-0605 Screw 1/4-20 x 2 carriage head stainless steel $5.50 1 ships same day
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
17 999-0593 Nut 5/16-18 hex stainless steel $0.99 16 ships same day
18 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
19 174-3203 Washer 13/32 x 1/32 flat stainless steel $1.08 26 ships same day
20 174-0302 Minuteman decal $7.90 1 usually ships 1-5 days
21 174-1308 Minuteman diecut decal Call for price 1 usually ships 1-5 days
24 174-3076 Bushing $6.30 2 usually ships 1-5 days
25 174-1311 Bulkhead fitting 1/4 x 3/4 $4.28 1 usually ships 1-5 days
26 174-0048 Washer 1 13/16 x 1/8 neoprene $1.42 2 usually ships 4-14 days
27 174-3193 Strainer $17.31 1 usually ships 1-5 days
28 174-0523 Washer 3/4 x 3/32 neoprene $11.97 1 usually ships 1-5 days
29 174-0220 Brass nipple fitting $4.24 1 usually ships 1-5 days
30 174-0050 Hose fitting $4.66 2 usually ships 4-14 days
31 174-0069 Guide wheel $4.20 2 usually ships 4-14 days
32 174-0068 Guide wheel bracket $49.43 2 usually ships 4-14 days
33 174-0070 Bumper wheel axle $13.54 2 usually ships 4-14 days
34 174-2264 Drain plug $34.36 1 usually ships 4-14 days
35 164-0187 90 degree elbow barb $6.23 1 ships same day
36 174-1312 Tank lid $71.33 1 usually ships 1-5 days
37 174-1313 Solution and recovery tank $168.20 1 usually ships 1-5 days
38 174-1314 Side panel $41.88 2 usually ships 1-5 days
40 174-1315 Dome lid $118.78 1 usually ships 4-14 days
41 174-1316 Bladder bag $160.64 1 usually ships 1-5 days
42 174-1317 Side bracket for bladder bag $60.62 2 usually ships 1-5 days
43 174-1318 Top/bottom bracket for bladder bag $58.12 2 usually ships 1-5 days
44 174-1319 Threaded cover cap $0.95 16 usually ships 4-14 days
45 174-1320 Dome gasket $28.67 1 usually ships 4-14 days
46 174-1321 Bladder mount frame $238.01 1 usually ships 1-5 days
47 174-1322 Pocket gasket $12.84 1 usually ships 4-14 days
48 174-1323 Plate $153.75 1 usually ships 1-5 days
49 174-1324 Solution and recovery gasket $63.46 1 usually ships 4-14 days
50 174-1325 Valve pivot bracket $63.68 1 usually ships 1-5 days
51 174-1326 Float valve $61.18 1 usually ships 1-5 days
52 991-1401 Clear vinyl tubing (sold by the inch) $0.55 24 in usually ships 17-33 days
55 174-1330 Short lid gasket $3.79 2 usually ships 1-5 days
56 174-1331 Cover plate $79.23 1 usually ships 1-5 days
57 174-1327 Dome plug $0.93 2 usually ships 1-5 days
58 174-1332 PVC coupling 1 1/2 inch $7.99 1 usually ships 1-5 days
59 174-1333 Vacuum motor filter assembly $14.97 1 usually ships 1-5 days
N/S 174-1309 Left cover side decal Call for price 1 usually ships 1-5 days
N/S 174-1310 Right cover side decal Call for price 1 usually ships 1-5 days
