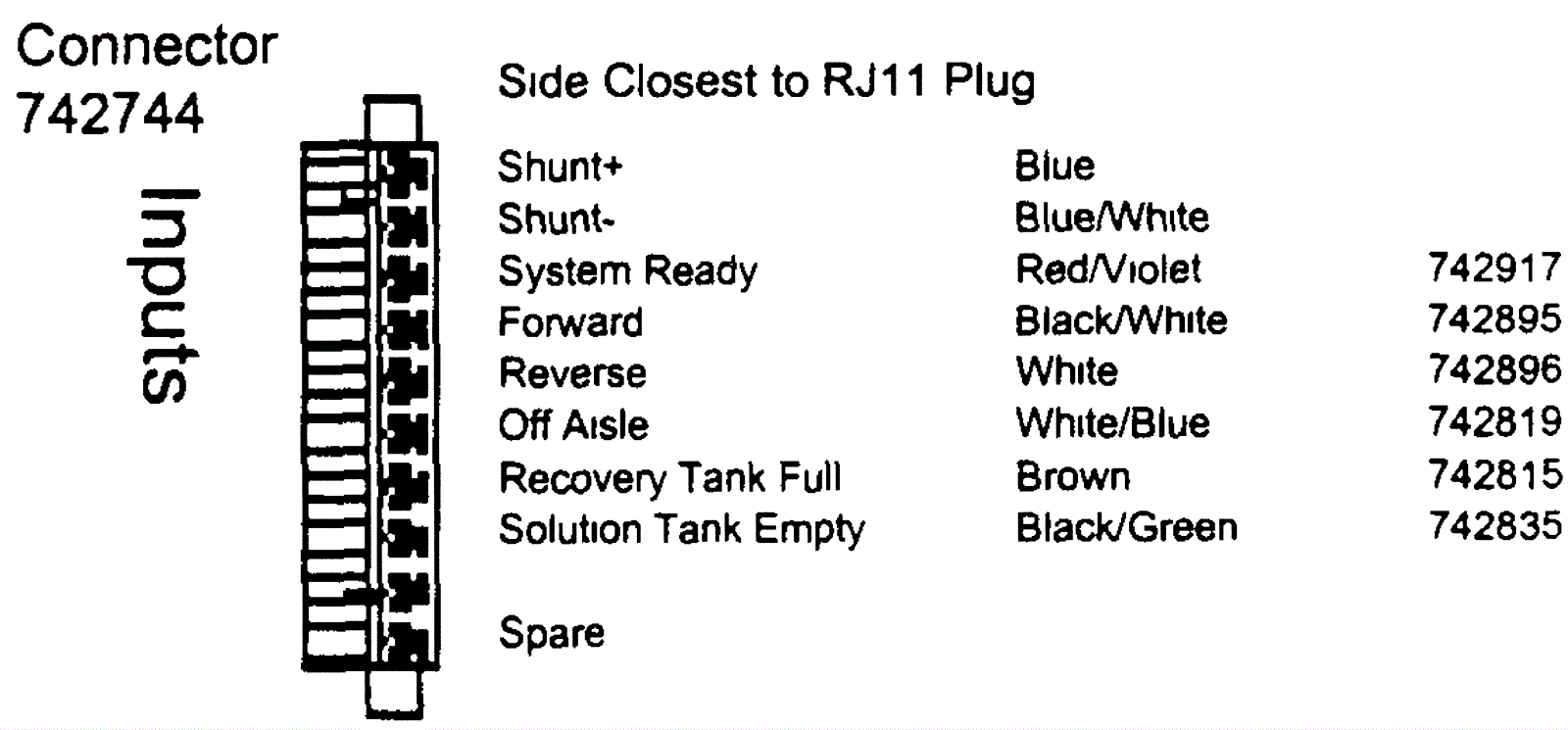

Wiring Guide-Main Board(Inputs)

#PartDescriptionPriceReqNotesAvailability
0.9835 174-2759 Connector $31.56 usually ships 1-5 days
0.9835 174-2760 System ready red/violet $1.46 usually ships 1-5 days
0.9835 174-2761 Forward black/white $1.31 usually ships 1-5 days
0.9835 174-2762 Reverse white $1.37 usually ships 1-5 days
0.9835 174-2763 Off-aisle white / blue $0.90 usually ships 1-5 days
0.9835 174-2764 Recovery tank full $3.47 usually ships 1-5 days
0.9835 174-2765 Solution tank empty $1.85 usually ships 1-5 days
