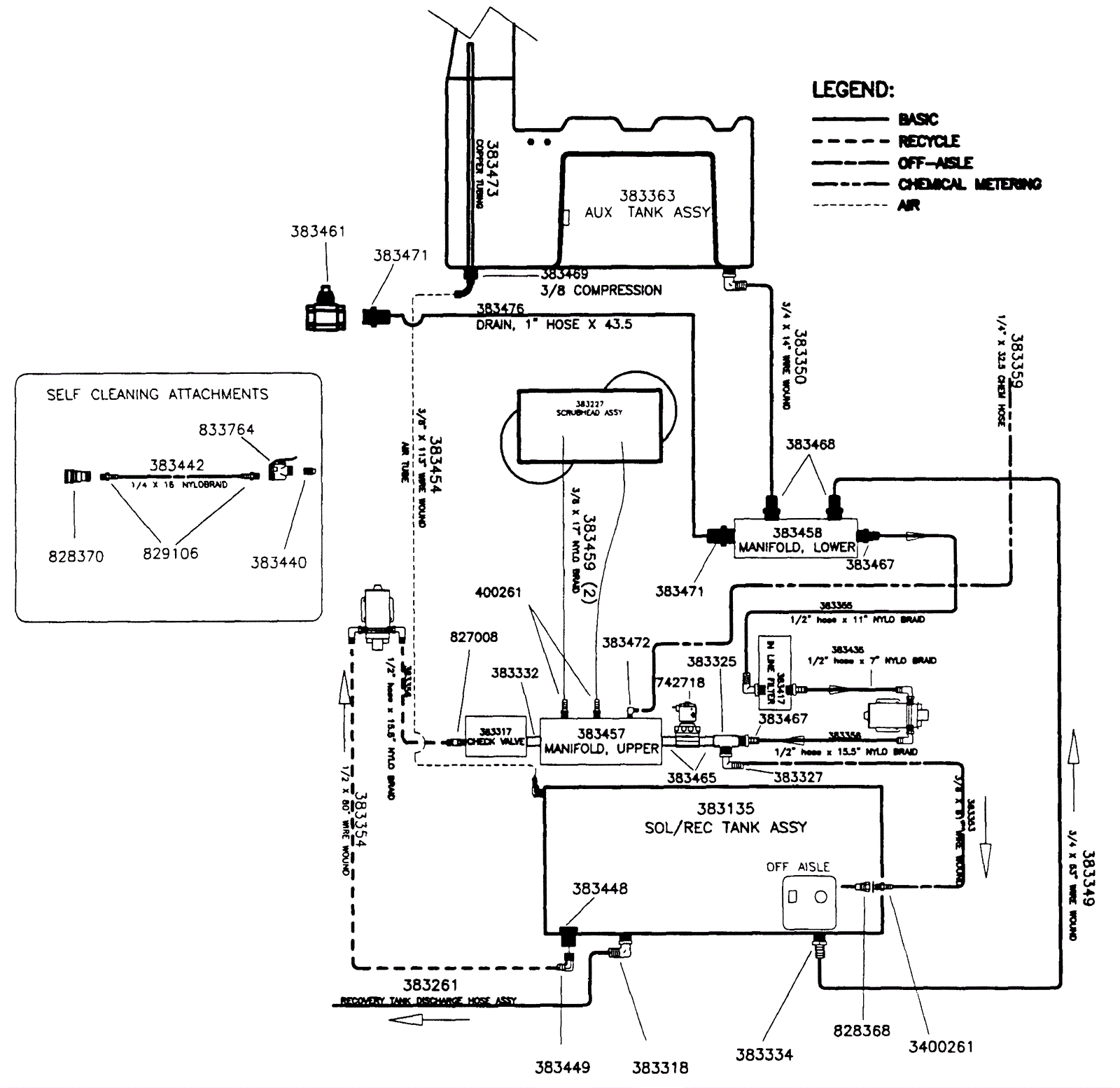

PWRBOSS 3800 Plumbing Diagram

#PartDescriptionPriceReqNotesAvailability
01 174-2591 Fitting brass 1 inch mpt x 1 inch $27.95 usually ships 1-5 days
02 174-0218 Male quick coupler $26.78 usually ships 1-5 days
03 174-2670 Brush pan solution hose Call for price usually ships 1-5 days
04 174-2599 Lower hydraulic manifold Call for price usually ships 1-5 days
05 174-1678 Fitting brass tee $7.49 usually ships 1-5 days
06 174-2677 Hose wire 3/4 x 14 inch Call for price usually ships 1-5 days
07 174-2582 Compression fitting 3/8 Call for price usually ships 1-5 days
08 174-2641 Fitting brass 90 degree 1/2 x 1/2 $20.36 usually ships 1-5 days
09 174-2586 Fitting brass nipple 1/2 mpt $9.05 usually ships 1-5 days
10 174-2478 Hose 1/4 x 6 3/4 long $2.39 usually ships 1-5 days
11 174-2591 Fitting brass 1 inch mpt x 1 inch $27.95 usually ships 1-5 days
12 174-2667 Nylobraid 1/4 x 16 ft Call for price usually ships 1-5 days
13 174-7102 36V solenoid valve $142.55 usually ships 4-14 days
14 174-2465 Actuator cable Call for price usually ships 1-5 days
15 174-2636 Solution / recovery tank Call for price usually ships 1-5 days
16 174-2676 Standpipe assembly $8.01 usually ships 1-5 days
17 174-2464 Roller Call for price usually ships 1-5 days
18 174-3039 Female coupler $46.04 usually ships 4-14 days
19 174-2674 Fitting 3/4 mpt x 3/4 bar Call for price usually ships 1-5 days
20 174-2583 Copper tubing Call for price usually ships 1-5 days
21 174-2668 Brass veejet nozzle Call for price usually ships 1-5 days
22 174-2590 1 Inch ball valve Call for price usually ships 1-5 days
23 174-2600 Fitting brass 3/4 x 3/4 Call for price usually ships 1-5 days
24 174-2672 Check valve brass $45.61 usually ships 1-5 days
25 174-1615 2 Inch barb fitting pp $5.33 usually ships 1-5 days
26 174-2484 Fitting brass 90 1/8 mpt x 1/4 barb $1.02 usually ships 1-5 days
27 174-2701 Fitting brass 1/4 mpt x 3/8 barb Call for price usually ships 1-5 days
28 174-2675 Inline filter $76.74 usually ships 1-5 days
29 174-2562 Auxiliary tank assembly $288.52 usually ships 1-5 days
30 174-2585 Fitting brass 1/2 x 1/ 2 Call for price usually ships 1-5 days
31 174-2587 Upper hydraulic manifold $121.70 usually ships 1-5 days
32 174-2585 Fitting brass 1/2 x 1/ 2 Call for price usually ships 1-5 days
33 174-2669 Solution pas valve $58.47 usually ships 1-5 days
34 174-2678 Hose 1/2 x 15 1/2 Call for price usually ships 1-5 days
35 174-6316 Elbow barb 1/2 x 3/8 $2.66 usually ships 4-14 days
36 174-3137 1/4 NPT x 1/4 hose BARB $8.19 usually ships 1-5 days
37 174-2623 Anchor coupling Call for price usually ships 1-5 days
38 174-2679 Hose 3/4 x 57 inch $22.44 usually ships 1-5 days
39 174-2657 Scrubhead assembly Call for price usually ships 1-5 days
40 174-2701 Fitting brass 1/4 mpt x 3/8 barb Call for price usually ships 1-5 days
41 174-2671 Fitting brass 3/8 mpt x 1/2 $8.27 usually ships 4-14 days
42 174-2673 Discharge hose assembly Call for price usually ships 1-5 days
43 174-5916 Closed nipple 3/8 $3.33 usually ships 4-14 days
