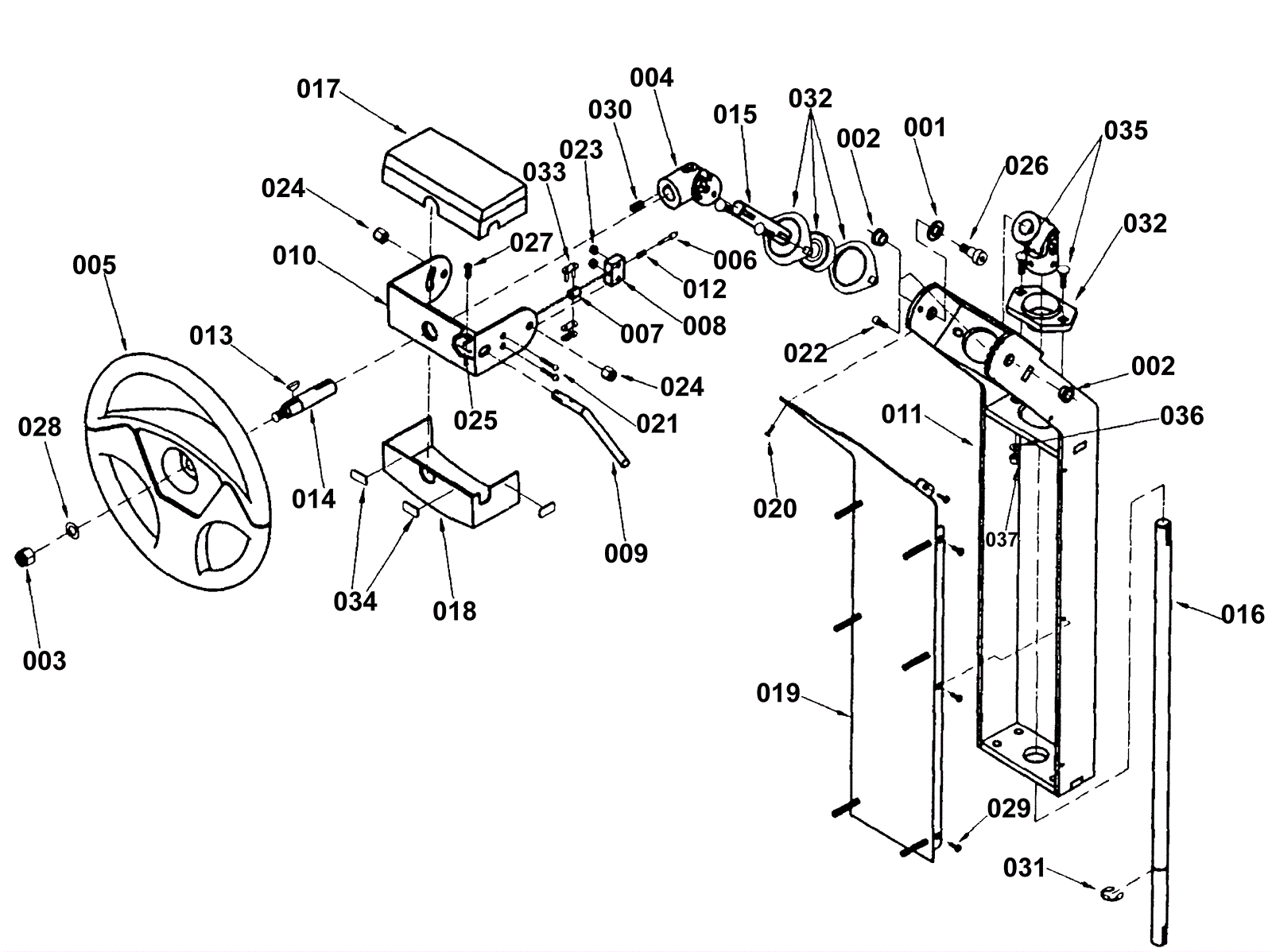

3800 Steering Column Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-1170 Washer oilite (OBSOLETE) Call for price 2 usually ships 4-14 days
002 174-0120 Bushing $2.63 2 usually ships 4-14 days
004 174-2898 Universal joint $157.89 2 usually ships 1-5 days
005 174-2740 Steering wheel $106.77 1 usually ships 1-5 days
006 174-2741 Lock pin shaft $13.04 1 usually ships 1-5 days
007 174-2742 Locking pin head Call for price 1 usually ships 1-5 days
008 174-2743 Compression spring housing $28.79 1 usually ships 1-5 days
009 174-2744 Pivot arm $115.14 1 usually ships 1-5 days
010 174-2745 Upper bracket weldment $29.84 1 usually ships 1-5 days
011 174-2746 Steering weldment $197.54 1 usually ships 1-5 days
012 174-2747 Compression spring $2.75 1 usually ships 1-5 days
013 174-2748 Woodruff key 3/16 x 3/4 $1.38 1 ships same day
014 174-2749 Upper steering shaft $29.84 1 usually ships 1-5 days
015 174-2750 Middle steering shaft $36.41 1 usually ships 1-5 days
016 174-2751 Lower steering shaft $3.53 1 usually ships 1-5 days
017 174-2752 Top steering cover $17.71 1 usually ships 1-5 days
018 174-2753 Bottom steering cover $17.31 1 usually ships 1-5 days
019 174-2754 Steering weldment cover $62.09 1 usually ships 1-5 days
020 174-2755 Screw machine 8 x 32 x 1/2 Call for price 2 usually ships 1-5 days
021 174-5098 Screw 10-32 x 1 standard plated machine $0.97 2 usually ships 1-5 days
022 174-5760 Screw 1/4 20 x .37 socket cap $0.97 1 usually ships 1-5 days
023 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
024 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
025 174-3219 Cotter pin .06 x .75 $1.20 1 ships same day
026 174-5325 Bolt 1/2 x 1/2 shoulder $2.77 2 usually ships 4-14 days
027 174-2756 Clevis pin 3/16 x 19/32 $0.97 1 usually ships 4-14 days
028 174-0528 Washer 33/64 x 7/8 x 1/16 pleated flat $0.97 1 usually ships 4-14 days
029 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 8 ships same day
030 174-0889 Key square $1.88 4 usually ships 4-14 days
031 174-5728 Retaining ring $1.33 1 usually ships 4-14 days
032 174-2757 Bearing flange 3/4 Call for price 2 usually ships 1-5 days
033 991-0103 Master link $1.87 1 ships same day
034 174-2758 Valcro strips 1 inch Call for price 4 usually ships 1-5 days
035 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 4 ships same day
036 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
037 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
