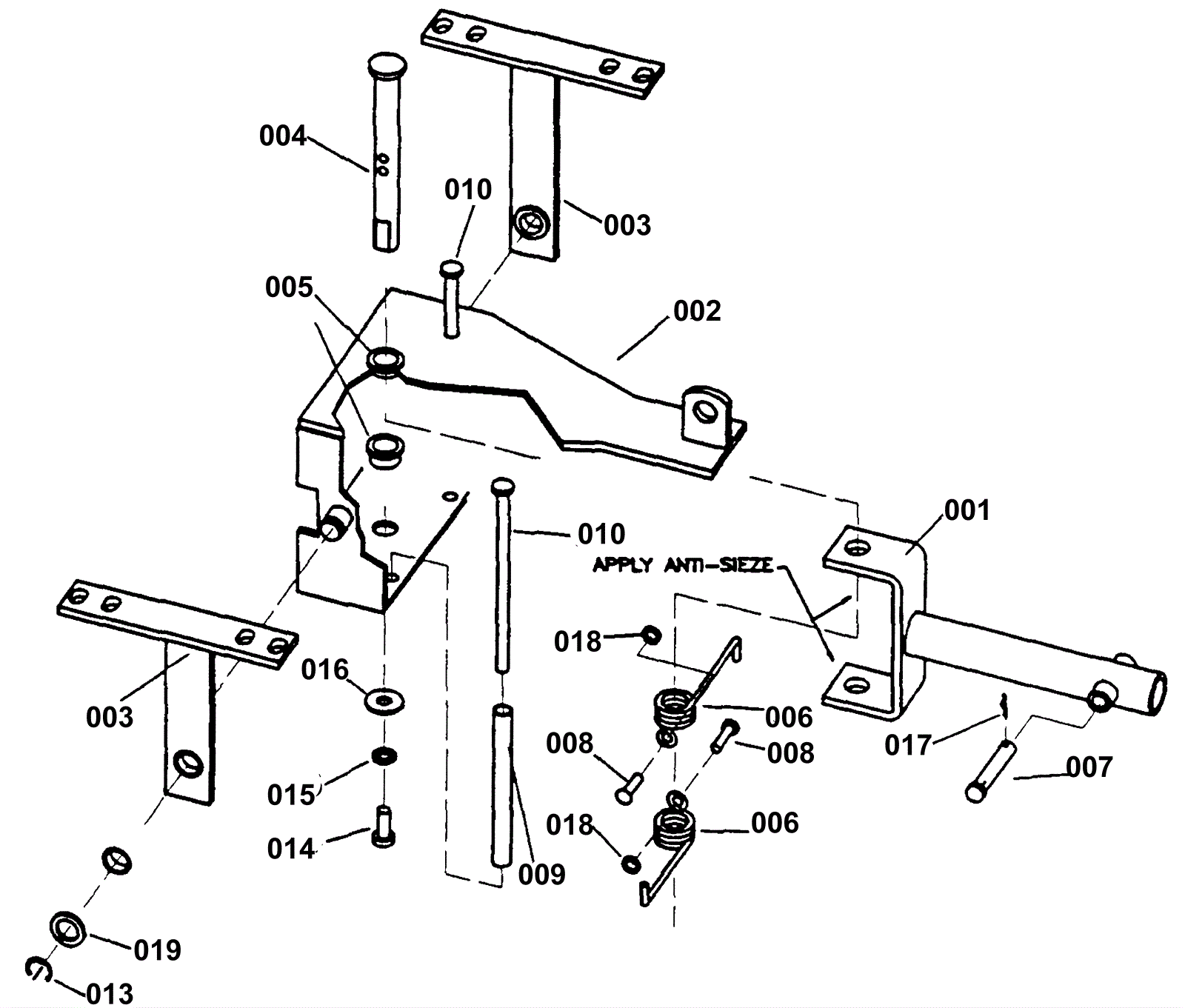

3800 Squeegee Mechanism

#PartDescriptionPriceReqNotesAvailability
001 174-2732 Yoke weldment $201.81 1 usually ships 1-5 days
002 174-2733 Spring house weldment $532.95 1 usually ships 1-5 days
003 174-0278 Pivot bracket weldment $48.60 1 usually ships 1-5 days
004 174-2734 Swivel pin $81.60 1 usually ships 1-5 days
005 174-0120 Bushing $2.63 2 usually ships 4-14 days
006 174-2735 Torsion spring stainless steel $28.22 2 usually ships 1-5 days
007 174-0203 Clevis pin $2.16 1 usually ships 1-5 days
008 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
009 174-2736 Spacer tube $35.78 2 usually ships 1-5 days
010 174-2737 Screw machine 1/4 x 20 x 4 1/2 $3.62 2 usually ships 1-5 days
013 174-0283 3/4 retaining ring $3.97 2 ships same day
014 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 ships same day
015 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
016 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
017 174-0201 Cotter pin $1.20 1 usually ships 4-14 days
018 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
019 999-9114 Washer 3/4 flat stainless steel $1.58 2 ships same day
