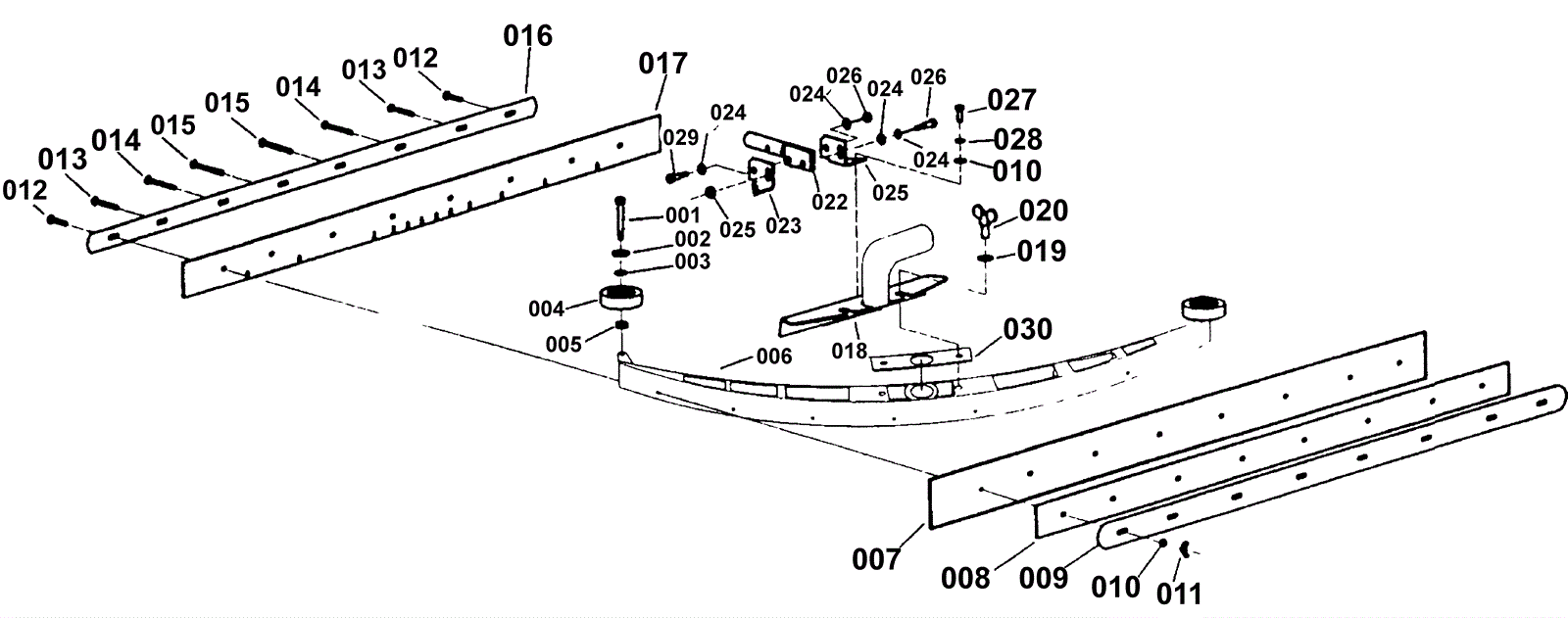

3800 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-1367 Bolt 3/8 x 1 1/2 x 5/16-18 socket head shoulder SS $16.12 2 ships same day
002 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
003 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
004 174-0268 Guide wheel $18.10 2 usually ships 4-14 days
005 174-0262 Spacer $7.63 2 usually ships 4-14 days
006 174-2722 Squeegee casting machined Call for price 1 usually ships 1-5 days
007 174-2723 Squeegee blade rear 38 inch $45.00 1 ships same day
008 174-2724 Squeegee reinforcement blade 38 inch $14.68 1 usually ships 1-5 days
009 174-2725 Squeegee blade rear strap Call for price 1 usually ships 1-5 days
010 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
011 N/A Not available Call for price Washer usually ships 3-26 days
012 999-0604 Screw 1/4-20 x 1 1/2 carriage head stainless steel $0.99 2 ships same day
013 999-0514 Screw 1/4-20 x 2 1/2 carriage head zinc $0.99 2 ships same day
014 999-0607 Screw 1/4-20 x 3 carriage head stainless steel $3.30 2 ships same day
015 174-2726 Bolt 1/4 x 20 x 3 1/2 bar stainless steel $3.37 2 usually ships 1-5 days
016 174-2727 Squeegee blade front strap $70.34 1 usually ships 1-5 days
017 174-2728 Squeegee blade front 38 inch $20.55 1 usually ships 1-5 days
018 174-2829 Transmission with brake Call for price 1 usually ships 1-5 days
019 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
020 174-0538 Bolt 1/2-13 x 1 wing $25.15 2 usually ships 4-14 days
021 174-0033 Right side mount bracket $19.96 1 usually ships 4-14 days
022 174-0275 Squeegee mount weldment $68.36 1 usually ships 1-5 days
023 174-3260 Left mounting bracket $22.83 1 usually ships 4-14 days
024 999-1363 Washer 7/8 flat stainless steel $3.48 4 ships same day
025 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 1 ships same day
026 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
027 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
028 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
029 999-0492 Bolt 3/8 x 3/4 x 5/16 shoulder socket head $1.91 2 ships same day
030 174-2730 Squeegee mount bracket gasket $3.64 1 usually ships 1-5 days
