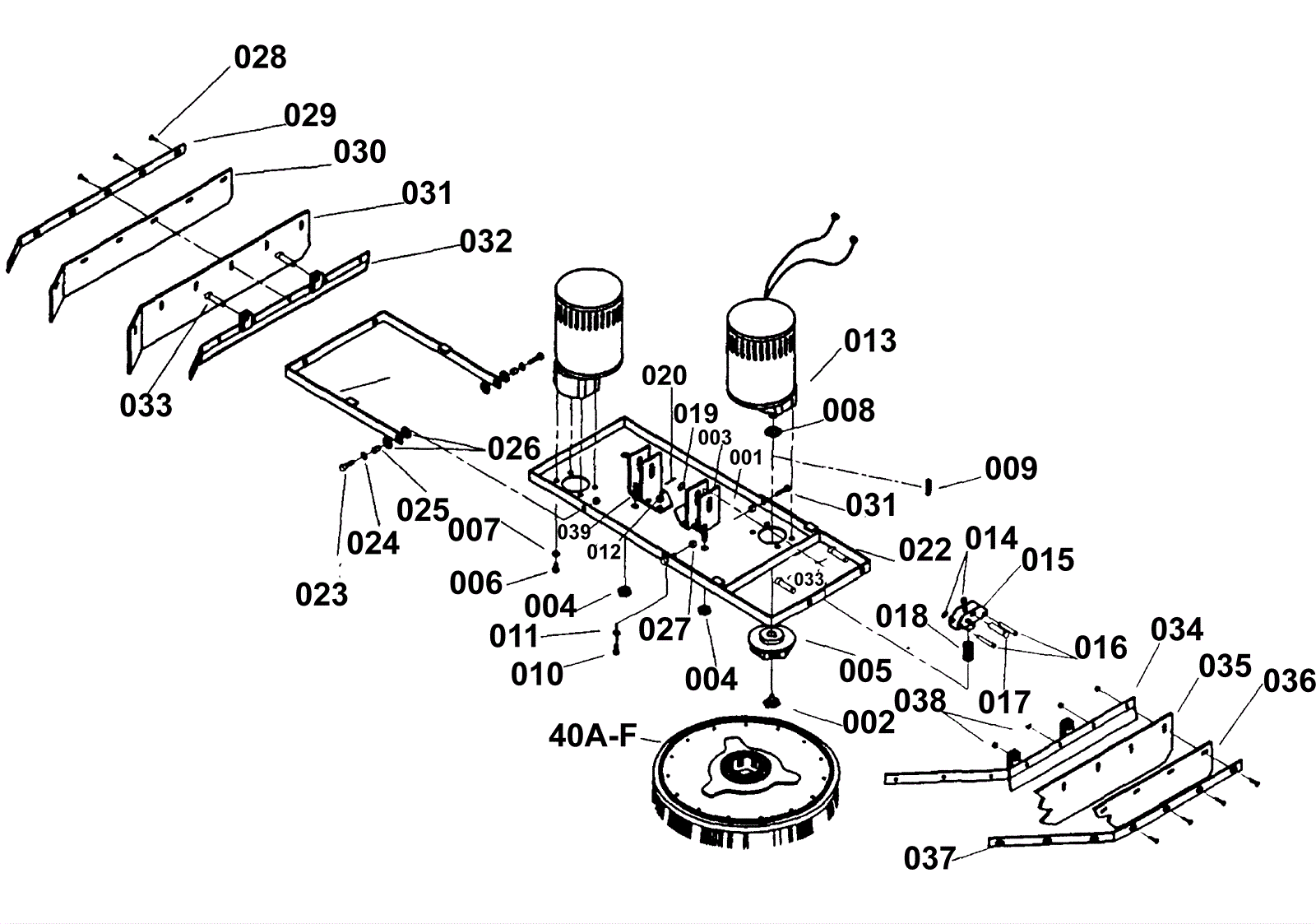

3800 Scrubhead Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-2685 Motor pan Call for price 1 usually ships 1-5 days
002 174-0037 Retainer bolt $14.63 2 usually ships 4-14 days
003 174-1699 Lift bracket weldment $18.18 2 usually ships 1-5 days
004 174-0575 Nut 1/4 NPT nylon $1.00 2 usually ships 4-14 days
005 174-0035 Drive hub $41.45 2 usually ships 4-14 days
006 999-0594 Screw 3/8-16 x 1 socket head alloy plain finish $1.14 8 ships same day
007 999-0034 Washer 3/8 split lock plain finish $1.82 8 ships same day
008 999-9114 Washer 3/4 flat stainless steel $1.58 2 ships same day
009 174-0036 Square keyway $1.00 2 usually ships 4-14 days
010 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 6 ships same day
011 999-0028 Washer 5/16 split lock plain finish $0.99 6 ships same day
012 999-0593 Nut 5/16-18 hex stainless steel $0.99 6 ships same day
013a 174-0482 36V 1.0HP brush gear motor assembly $1,212.93 2 usually ships 1-5 days
013b 991-8524 36V 1.0HP brush motor assembly with gear box $1,044.51 2 (NON-OEM) usually ships 5-16 days
014 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
015 174-0440 Bracket spring support $46.34 2 usually ships 1-5 days
016 174-0203 Clevis pin $2.16 4 usually ships 1-5 days
017 174-0348 Clevis pin $4.29 2 usually ships 1-5 days
018 174-0149 Compression spring $3.78 2 usually ships 1-5 days
019 999-0855 Washer 9/16 SAE flat $0.99 2 ships same day
020 997-2506 Cotter pin $0.99 6 ships same day
021 174-2686 Squeegee side bracket left $140.11 1 usually ships 1-5 days
022 174-2687 Squeegee side bracket right $144.30 1 usually ships 1-5 days
023 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
025 174-2688 Sleeve bushing Call for price 4 usually ships 1-5 days
026 999-0566 Washer 1/2 flat nylon $0.99 8 ships same day
027 999-0635 Nut 3/8-16 hex stainless steel $0.99 4 ships same day
028 999-6667 Bolt 1/4-20 x 1 hex zinc $0.99 13 ships same day
029 174-2690 Squeegee retainer side left $60.90 1 usually ships 1-5 days
030 174-2691 Squeegee strip left side backup $13.20 1 usually ships 1-5 days
031 174-2692 Squeegee left side $40.05 1 usually ships 1-5 days
032 174-2693 Squeegee mount weldment left $201.81 1 usually ships 1-5 days
033 174-2694 Pin hitch 1/2 x 1 1/2 $4.46 4 usually ships 1-5 days
034 174-2695 Squeegee mount weldment right $996.43 1 usually ships 1-5 days
035 174-2696 Squeegee right side $39.97 1 usually ships 1-5 days
036 174-2697 Squeegee strip right side backup $18.89 1 usually ships 1-5 days
037 174-2698 Squeegee retainer right side $80.15 1 usually ships 1-5 days
038 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 13 ships same day
039 174-2701 Fitting brass 1/4 mpt x 3/8 barb Call for price 2 usually ships 1-5 days
040a 174-2703 Power scrub brush $486.36 2 usually ships 1-5 days
040b 174-2703 Power scrub brush $486.36 2 usually ships 1-5 days
040c 996-0730 Pad driver (OBSOLETE) $167.72 2 usually ships 4-14 days
040d 996-1014 Nylon brush $303.79 2 usually ships 1-5 days
040e 996-1013 Polypropelene scrubbing brush $501.26 2 usually ships 1-5 days
040f 996-1013 Polypropelene scrubbing brush $501.26 2 usually ships 1-5 days
