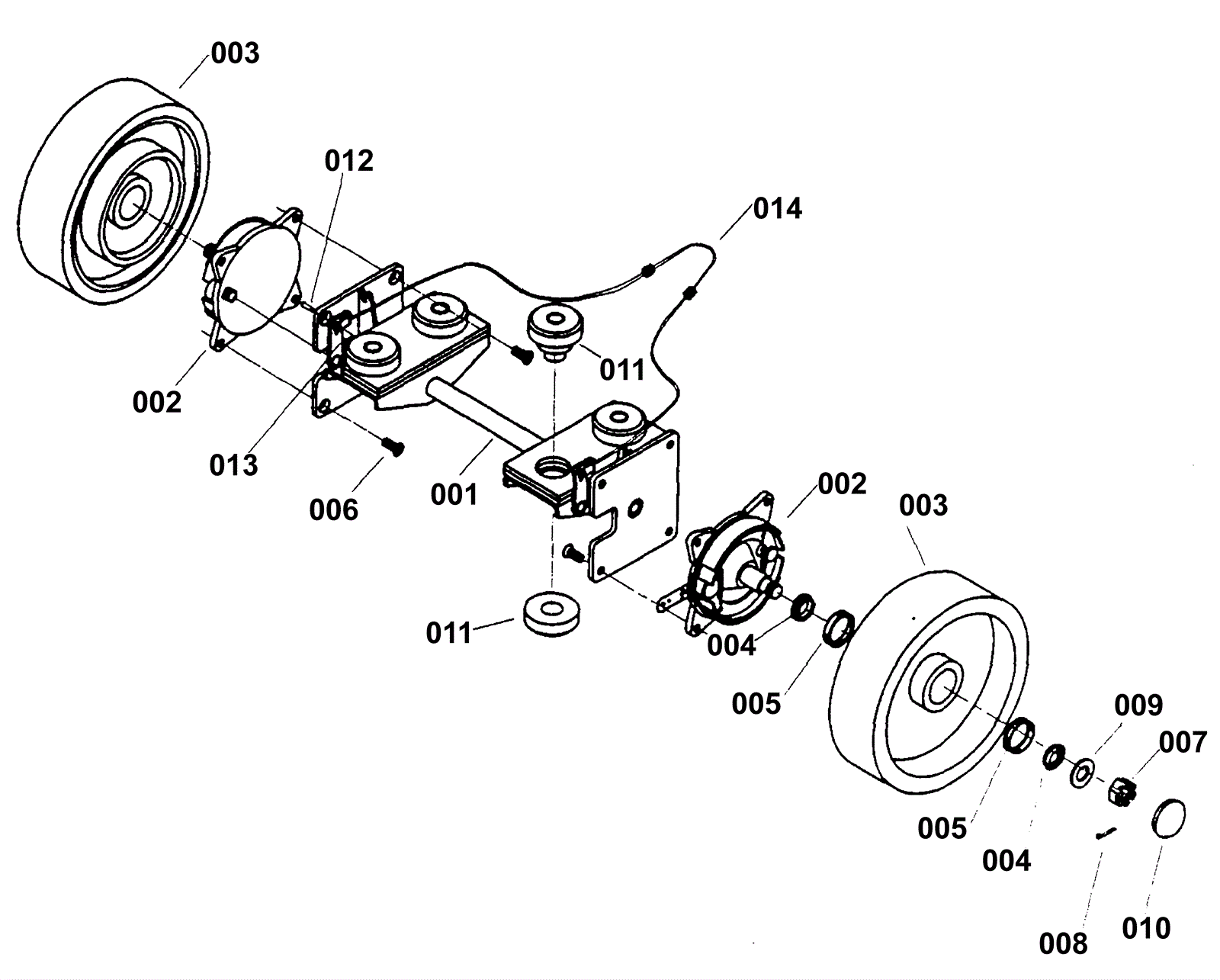

3800 Rear Axle Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-2680 Rear axle weldment Call for price 1 usually ships 1-5 days
002 174-2681 Drum break $250.43 2 usually ships 1-5 days
003 174-1638 Rear wheel (OBSOLETE) $1,177.83 2 usually ships 4-14 days
004 174-1636 Tapered bearing cone $39.50 4 usually ships 4-14 days
005 174-1637 Tapered bearing cup $14.79 4 usually ships 4-14 days
006 174-2682 Flat head screw 1/2 x 20 $1.37 8 usually ships 1-5 days
007 174-1642 Nut 1-14 slotted $3.12 2 usually ships 1-5 days
008 174-7020 Cotter pin $0.97 2 usually ships 4-14 days
009 174-1641 Flat washer 1 1/16 x 2 x 5/32 $0.97 2 usually ships 1-5 days
010 174-1643 Greese cap wheel $3.54 2 usually ships 4-14 days
011 174-2683 Ring and bushing isolator $60.61 4 usually ships 1-5 days
012 174-2684 Clevis pin 1/4 x 7/8 zinc plated $0.95 2 usually ships 1-5 days
013 174-0201 Cotter pin $1.20 2 usually ships 4-14 days
014 174-1632 Cable brake $181.94 1 usually ships 1-5 days
