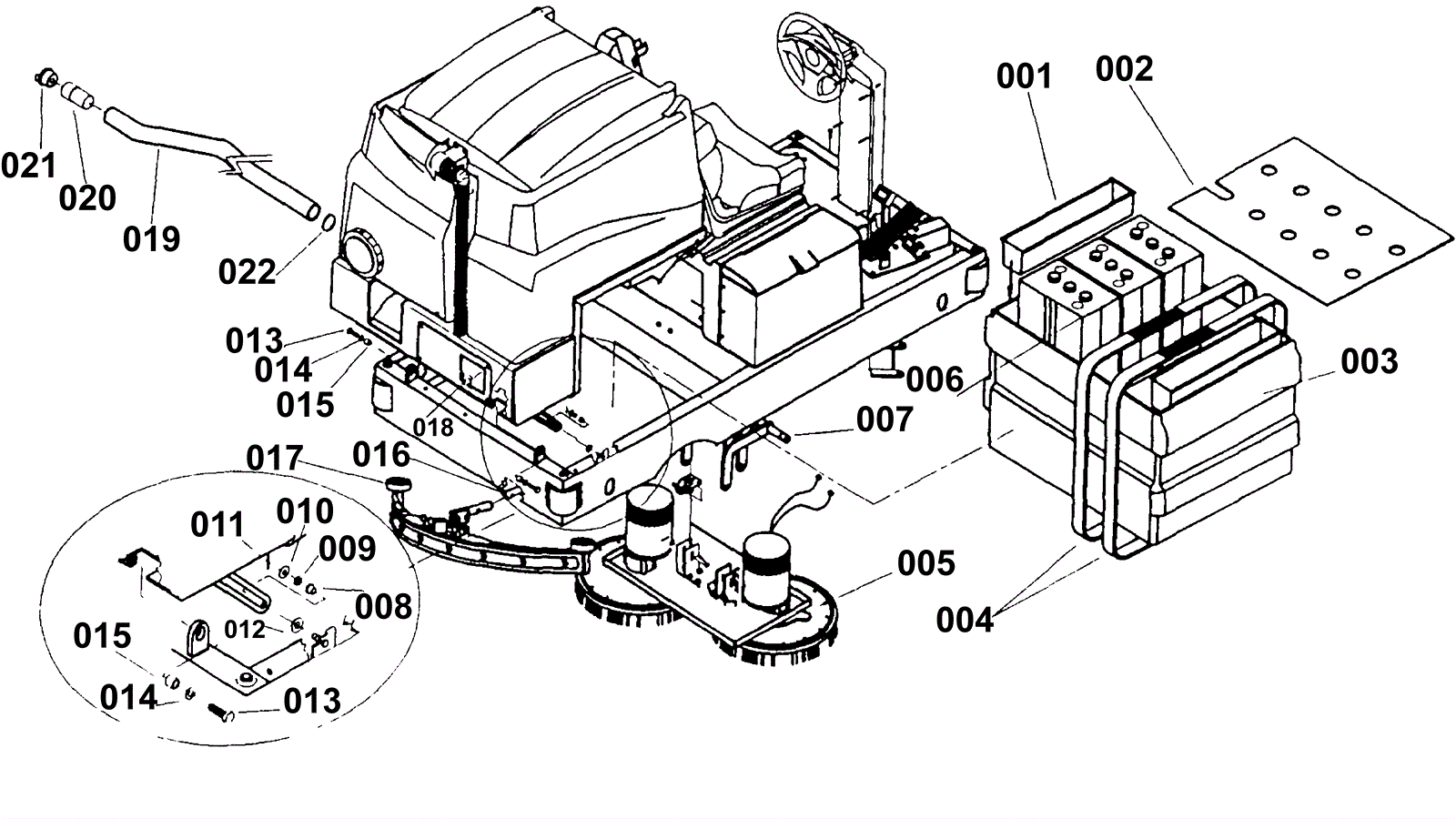

Main Assembly (Part 6)

#PartDescriptionPriceReqNotesAvailability
001 174-2653 Battery liner spacers Call for price 2 usually ships 1-5 days
002 174-2654 Battery cover Call for price 1 usually ships 1-5 days
003 174-2655 Battery liner $130.13 1 usually ships 1-5 days
004 174-2656 Battery strap $47.25 2 usually ships 1-5 days
005 174-2657 Scrubhead assembly Call for price 1 usually ships 1-5 days
006 162-0019 6V 390Ah wet battery (SNSR) $522.50 6 ships same day
007 174-2584 Lever arm weldment $105.59 1 usually ships 1-5 days
008 174-0138 Bushing $2.96 2 usually ships 1-5 days
009 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
010 999-1363 Washer 7/8 flat stainless steel $3.48 2 ships same day
011 997-2506 Cotter pin $0.99 2 ships same day
012 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
013 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel $1.67 2 ships same day
014 999-0266 Washer #8 SAE flat stainless steel $0.99 2 ships same day
015 174-2570 Spacer 1/2 x 3/4 x 5/8 Call for price 2 usually ships 1-5 days
016 174-2594 Squeegee mechanism $549.07 1 usually ships 1-5 days
017 174-2572 Squeegee assembly Call for price 1 usually ships 1-5 days
018 174-2470 Chemical mix cover $74.50 1 usually ships 1-5 days
019 174-2659 Rec tank drain hose $59.00 1 usually ships 1-5 days
020 174-2660 Discharge tube Call for price 1 usually ships 1-5 days
021 174-1845 Plug assembly $85.11 1 usually ships 1-5 days
022 174-2661 Hose clamp Call for price 1 usually ships 1-5 days
