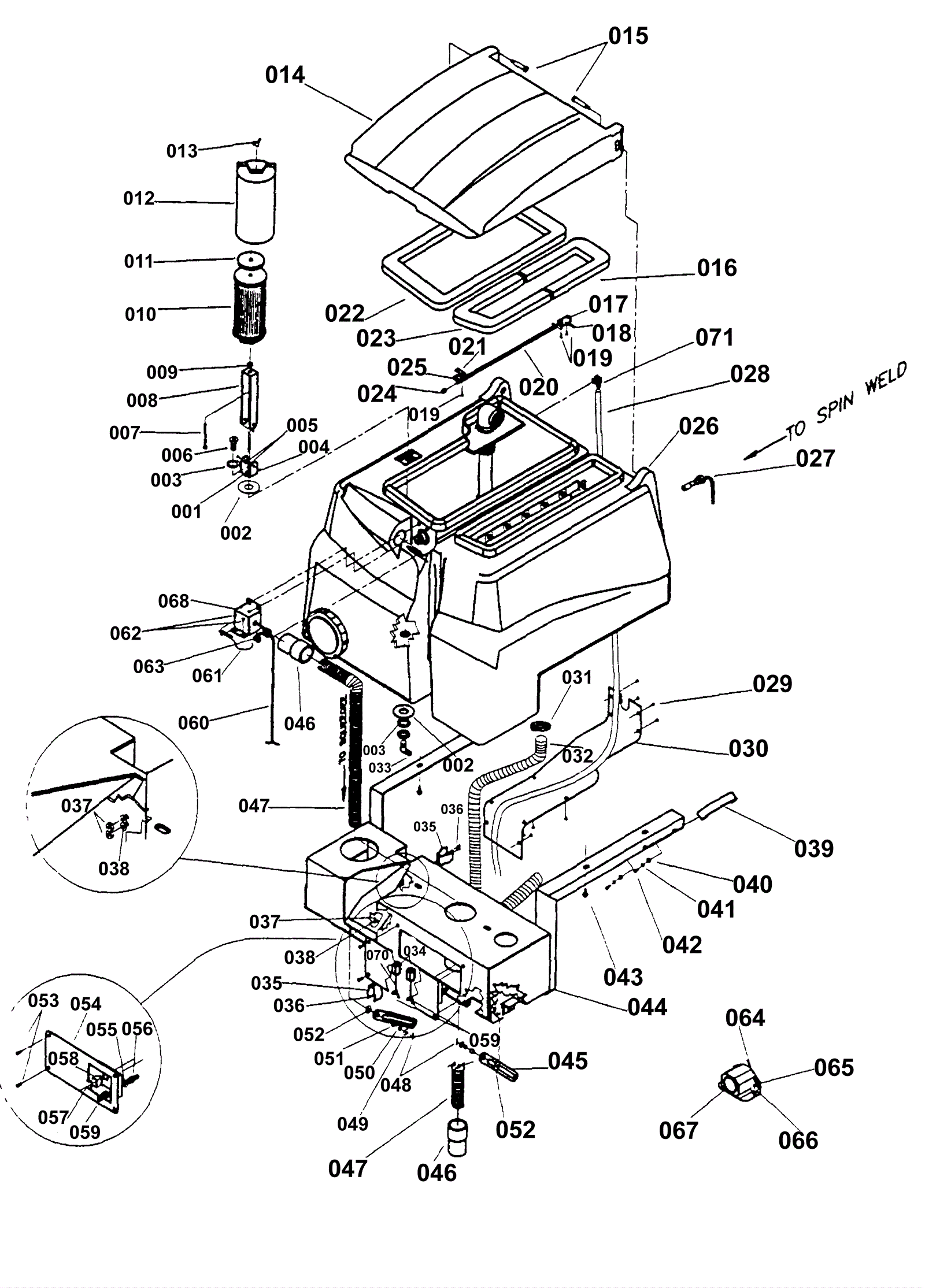

3800 Main Assembly (Part 5)

#PartDescriptionPriceReqNotesAvailability
001 174-3260 Left mounting bracket $22.83 1 Included with model #MC380001 & MC380003 usually ships 4-14 days
002 174-2620 Gasket 1 1/8 x 2 3/4 x 1/8 Call for price 2 Included with model #MC380001 & MC380003 usually ships 1-5 days
003 174-2621 Spacer 1 1/8 x 1 5/8 x 1/8 Call for price 2 Included with model #MC380001 & MC380003 usually ships 1-5 days
004 174-2622 Rivet tube 3/16 x 9/32 Call for price 2 Included with model #MC380001 & MC380003 usually ships 1-5 days
005 999-0998 Washer #10 flat stainless steel $0.99 2 Included with model #MC380001 & MC380003 ships same day
006 174-2623 Anchor coupling Call for price 1 Included with model #MC380001 & MC380003 usually ships 1-5 days
007 174-2624 Machined bolt Call for price 1 Included with model #MC380001 & MC380003 usually ships 1-5 days
008 174-2625 Upper filter bracket $8.78 1 Included with model #MC380001 & MC380003 usually ships 1-5 days
009 999-0593 Nut 5/16-18 hex stainless steel $0.99 1 Included with model #MC380001 & MC380003 ships same day
010 174-1663 Retaining ring Call for price 1 Included with model #MC380001 & MC380003 usually ships 1-5 days
011 174-1712 Gasket recycle filter zinc plated Call for price 1 Included with model #MC380001 & MC380003 usually ships 1-5 days
012 174-2626 Recycle filter cover Call for price 1 Included with model #MC380001 & MC380003 usually ships 1-5 days
013 174-2627 Wing nut 5/16 x 18 nylon Call for price 1 Included with model #MC380001 & MC380003 usually ships 1-5 days
014 174-2628 Lid $30.51 1 usually ships 1-5 days
015 174-5828 Bolt 1/2 x 2 shoulder $3.48 2 usually ships 1-5 days
016 174-2629 Solution gasket $21.65 1 usually ships 1-5 days
017 174-2630 U channel $14.40 1 usually ships 1-5 days
018 174-2631 Roll pin 1/8 x 1 Call for price 1 usually ships 1-5 days
019 174-2289 Screw 10 x 5/8 hi/lo $1.90 3 usually ships 4-14 days
020 174-2632 Prop rod $8.69 1 usually ships 1-5 days
021 174-0062 Foam tape (sold by the foot) $2.89 1 usually ships 4-14 days
022 174-2633 Recovery gasket $120.12 1 usually ships 1-5 days
023 174-2634 Solution gasket $21.65 1 usually ships 1-5 days
024 174-1319 Threaded cover cap $0.95 1 usually ships 4-14 days
025 174-2635 Screw down clip $1.85 1 usually ships 1-5 days
026 174-2636 Solution / recovery tank Call for price 1 With recovery usually ships 1-5 days
027 174-8760 Float switch $104.36 1 Included with model #MC380001 & MC380003 usually ships 1-5 days
028 174-2638 Vacuum equalizing tube 9.41 ft Call for price 1 usually ships 1-5 days
029 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 10 ships same day
030 174-2639 Tank bottom cover Call for price 1 usually ships 1-5 days
031 997-2000 Hose clamp $2.37 1 ships same day
032 174-2640 Vacuum hose 1 1/5 x 52 inch Call for price 1 usually ships 1-5 days
033 174-2641 Fitting brass 90 degree 1/2 x 1/2 $20.36 1 usually ships 1-5 days
034 174-0156 Insulated standoff $5.77 2 usually ships 1-5 days
035 174-2476 Spring clip $4.66 2 usually ships 1-5 days
036 174-2592 Screw 8 x 32 x 5/8 $0.97 4 usually ships 1-5 days
037 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 4 ships same day
038 999-0266 Washer #8 SAE flat stainless steel $0.99 4 ships same day
039 174-3839 Handle (gray) $53.60 2 usually ships 4-14 days
040 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
041 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
042 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
043 174-2642 Bolt flane wizz loc 3/8 - 16 Call for price 6 usually ships 1-5 days
044 174-2643 Tank frame wedment Call for price 1 usually ships 1-5 days
045 174-2644 Hinge $3.97 2 usually ships 1-5 days
046 174-2645 Hose cuff 2 inch $6.52 2 usually ships 1-5 days
047 174-2646 2 Inch wireloc hose $79.90 74 in usually ships 4-14 days
048 997-2506 Cotter pin $0.99 2 ships same day
049 999-1363 Washer 7/8 flat stainless steel $3.48 2 ships same day
050 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
051 174-0138 Bushing $2.96 2 usually ships 1-5 days
052 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
053 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
054 174-2647 Back door weldment $33.43 1 usually ships 1-5 days
055 174-3093 Washer .56 x 1 flat $0.97 1 usually ships 4-14 days
056 174-1648 Fan vacuum 36 vold motor Call for price 1 usually ships 1-5 days
057 174-0503 Switch boot ce $3.33 1 usually ships 1-5 days
058 174-0408 Momentary rocker switch CE model $16.80 1 usually ships 4-14 days
059 174-0218 Male quick coupler $26.78 1 usually ships 1-5 days
060 174-2648 Cable assembly $10.68 1 usually ships 1-5 days
061 174-2649 Hose hook $13.36 1 usually ships 1-5 days
062 174-8020 Screw 10-24 x 1/2 machine stainless steel $1.20 4 usually ships 1-5 days
063 174-5268 Round Strain Relief $1.10 1 usually ships 1-5 days
064 999-0013 Screw 10 x 5/8 pan head phillips sheet metal $0.99 2 Optional ships same day
065 174-5259 Washer #10 helical $0.97 2 Optional usually ships 4-14 days
066 174-2224 Washer flat $1.66 2 Optional usually ships 1-5 days
067 174-2651 Backup alarm Call for price 1 Optional usually ships 1-5 days
068 174-2652 Switch cover $58.21 1 usually ships 1-5 days
069 174-0248 Nut 1/4-20 wing nylon $1.20 1 usually ships 1-5 days
070 174-0165 Brass stud $5.78 2 usually ships 1-5 days
071 174-5384 Hose barb 3/8 x 1/4 MPT $4.49 1 usually ships 1-5 days
