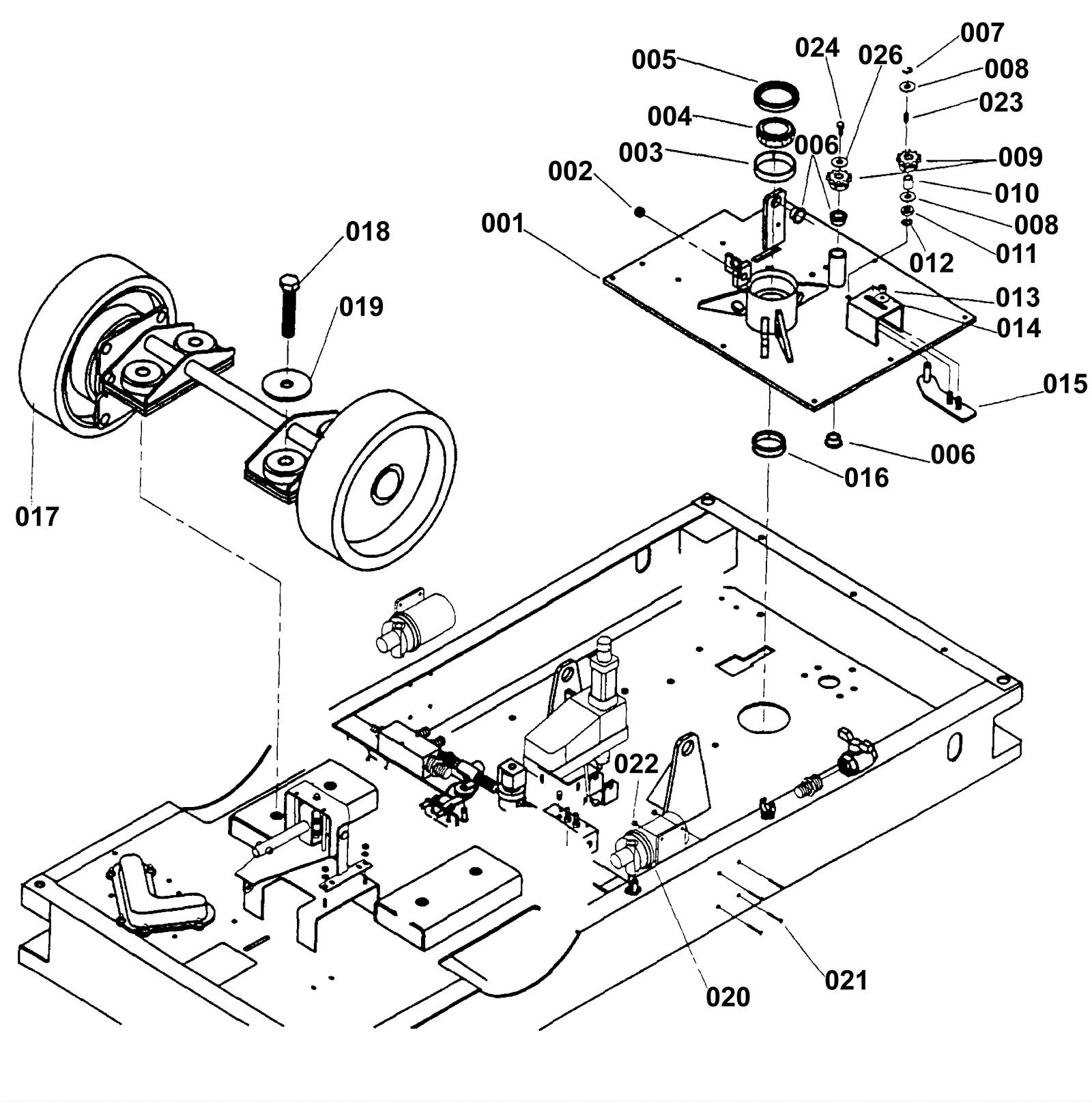

3800 Main Assembly (Part 4)

#PartDescriptionPriceReqNotesAvailability
001 174-2569 Steeering mount assembly Call for price 1 usually ships 1-5 days
002 174-0124 Bushing $2.03 1 usually ships 1-5 days
003 174-2607 Race $11.03 1 usually ships 1-5 days
004 174-2608 Roller bearing $26.97 1 usually ships 1-5 days
005 174-2609 Lip seal $16.27 1 usually ships 1-5 days
006 174-1265 Flanged bushing $5.03 3 usually ships 1-5 days
007 174-0178 1/2 inch external retaining ring $0.99 1 usually ships 4-14 days
008 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
009 174-0329 Sprocket $43.76 2 usually ships 1-5 days
010 174-2610 Spacer 3/4 Call for price 1 usually ships 1-5 days
011 174-0737 S S bushing $8.24 1 usually ships 1-5 days
012 174-5159 Washer 33/64 x 1/64 wave $0.99 1 usually ships 4-14 days
013 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
014 999-1363 Washer 7/8 flat stainless steel $3.48 2 ships same day
015 174-2611 Idler arm weldment $27.85 1 usually ships 1-5 days
016 174-2612 Race $12.03 1 usually ships 1-5 days
017 174-2613 Rear axle weldment $254.58 1 usually ships 1-5 days
018 174-2614 Bold hex head 7/8 x 9 x 4 1/2 inch long $2.03 4 usually ships 1-5 days
019 174-2615 Snubbing washers $3.19 4 usually ships 1-5 days
020 174-2616 Water pump 36 volt $393.80 1 usually ships 1-5 days
021 174-2617 Screw 10 x 32 x 1 1/2 $0.95 4 usually ships 1-5 days
022 174-5234 Nut 8-32 flange wizz $0.97 4 usually ships 1-5 days
023 174-2618 Key 1/4 x 1/4 x 3/4 Call for price 1 usually ships 1-5 days
024 999-0426 Screw 5/16-18 x 3/4 round head slotted zinc plated $0.99 1 ships same day
025 174-2619 Washer fender 5/16 $1.20 1 usually ships 1-5 days
