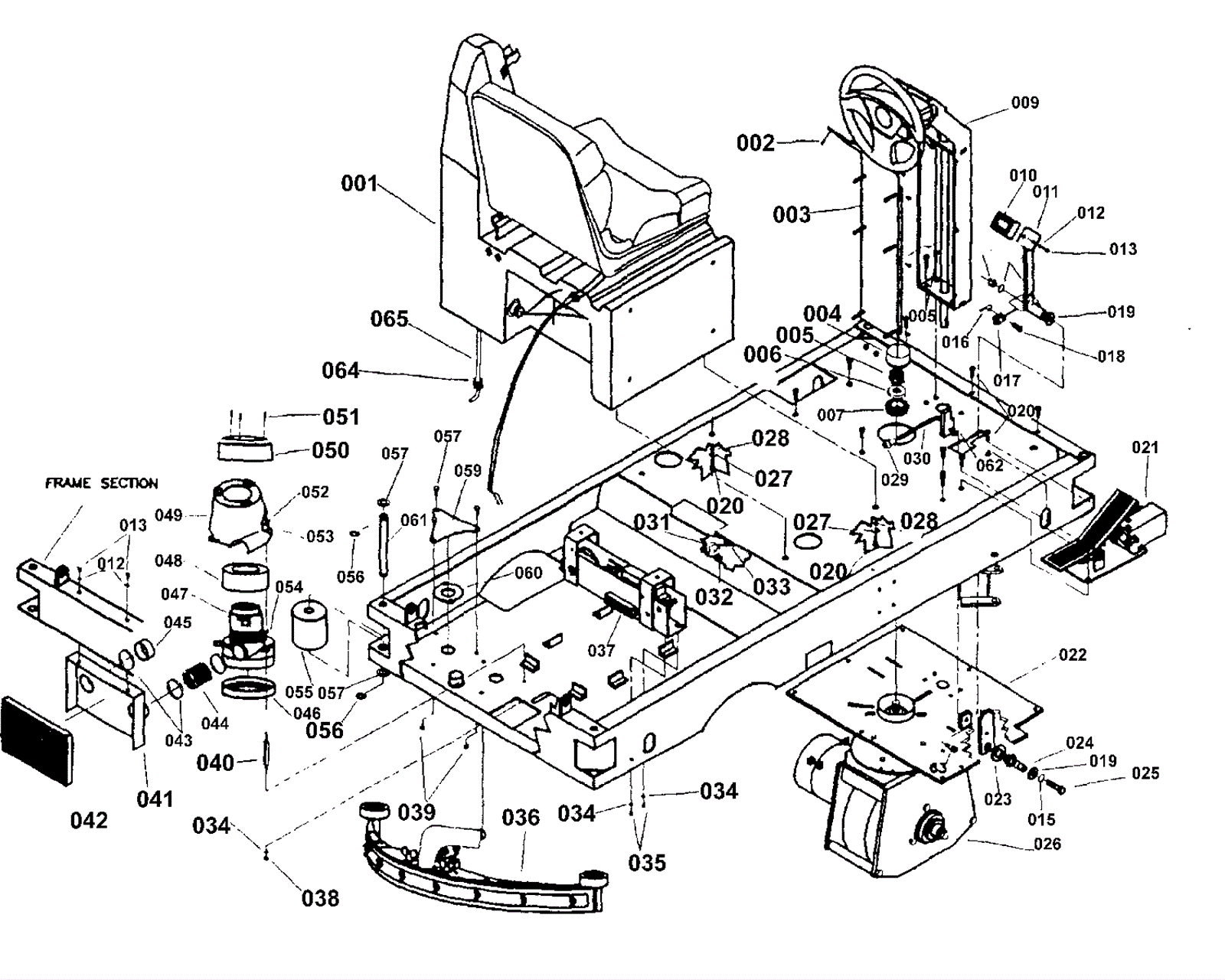

3800 Main Assembly (Part 2)

#PartDescriptionPriceReqNotesAvailability
001 174-2562 Auxiliary tank assembly $288.52 1 usually ships 1-5 days
002 174-6143 Screw 8 - 32 x 1/2 $0.97 10 usually ships 1-5 days
003 174-2754 Steering weldment cover $62.09 1 usually ships 1-5 days
004 174-2564 Grease cap $12.02 1 usually ships 1-5 days
005 174-2565 Slotted nut $4.96 1 usually ships 1-5 days
006 174-2566 Front drive spacer $29.04 1 usually ships 1-5 days
007 174-2567 Roller bearing $22.00 1 usually ships 1-5 days
008 174-1378 Bolt 3/8-16 x 1 1/4 hex head #5 $0.97 4 usually ships 1-5 days
009 174-2526 Steering $916.58 1 usually ships 1-5 days
010 174-0102 Pedal pad $5.86 1 usually ships 4-14 days
011 174-1646 Pedal break $30.18 1 usually ships 1-5 days
012 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
013 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 4 ships same day
014 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 1 ships same day
015 174-5159 Washer 33/64 x 1/64 wave $0.99 5 usually ships 4-14 days
016 997-2506 Cotter pin $0.99 1 ships same day
017 174-1647 Break pedal cable $49.93 1 usually ships 1-5 days
018 174-0195 Clevis pin $0.86 1 usually ships 4-14 days
019 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
020 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 14 ships same day
021 174-2568 Accelerator assembly $446.52 1 usually ships 1-5 days
022 174-2569 Steeering mount assembly Call for price 1 usually ships 1-5 days
023 174-1641 Flat washer 1 1/16 x 2 x 5/32 $0.97 1 usually ships 1-5 days
024 174-2570 Spacer 1/2 x 3/4 x 5/8 Call for price 1 usually ships 1-5 days
025 174-6091 Bolt 1/2-13 hex head $1.23 1 usually ships 1-5 days
026 174-2571 Front drive assembly $1,325.05 1 usually ships 1-5 days
027 999-1363 Washer 7/8 flat stainless steel $3.48 4 ships same day
028 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
029 174-0387 Knob $9.31 1 usually ships 4-14 days
030 174-1645 Emergency break weldment $60.48 1 usually ships 1-5 days
031 174-0156 Insulated standoff $5.77 2 usually ships 1-5 days
032 174-0165 Brass stud $5.78 2 usually ships 1-5 days
033 174-0248 Nut 1/4-20 wing nylon $1.20 2 usually ships 1-5 days
034 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 7 ships same day
035 999-0276 Screw 10-24 x 1/2 hex washer head slotted zinc $0.99 4 ships same day
036 174-2572 Squeegee assembly Call for price 1 usually ships 1-5 days
037 174-2573 Squeegee actuator assembly Call for price 1 usually ships 1-5 days
038 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
039 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 3 ships same day
040 174-2550 Vacuum motor stand-off $21.54 3 usually ships 1-5 days
041 174-2574 Motor muffler (OBSOLETE) Call for price 1 usually ships 1-5 days
042 174-2575 Dampener exhaust sound $3.04 1 usually ships 1-5 days
043 997-2003 Hose clamp $2.66 3 ships same day
044 174-2551 Short vacuum motor hose $2.93 1 usually ships 1-5 days
045 174-2576 Cap plug $0.90 1 usually ships 1-5 days
046a 164-0881 Vacuum motor gasket $13.42 1 ships same day
046b 991-3029 Vacuum motor gasket $2.36 1 (NON-OEM) ships same day
047 174-2577 Vacuum motor assembly $396.92 1 usually ships 1-5 days
048 174-0171 Foam ring $2.57 1 usually ships 4-14 days
049 174-0161 Vacuum motor bottom cover $89.35 1 usually ships 4-14 days
050 174-0159 Vacuum motor top cover $27.14 1 usually ships 4-14 days
051 174-5991 Screw #10 x 5/8 plated hi/low $0.99 3 usually ships 4-14 days
052 999-0190 Nut 1/4-20 hex plain finish $0.99 3 ships same day
053 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
054 174-0262 Spacer $7.63 3 usually ships 4-14 days
055 174-2578 Corner roller $19.13 4 usually ships 1-5 days
056 174-5728 Retaining ring $1.33 8 usually ships 4-14 days
057 999-9114 Washer 3/4 flat stainless steel $1.58 8 ships same day
058 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 3 ships same day
059 174-2579 Vacuum cover plate $74.50 1 usually ships 1-5 days
060 174-2580 Air manifold gasket $2.56 1 usually ships 1-5 days
061 174-2581 Roller pin $4.60 4 usually ships 1-5 days
062 174-1170 Washer oilite (OBSOLETE) Call for price 1 usually ships 4-14 days
063 174-5325 Bolt 1/2 x 1/2 shoulder $2.77 1 usually ships 4-14 days
064 174-2582 Compression fitting 3/8 Call for price 1 usually ships 1-5 days
065 174-2583 Copper tubing Call for price 1 usually ships 1-5 days
