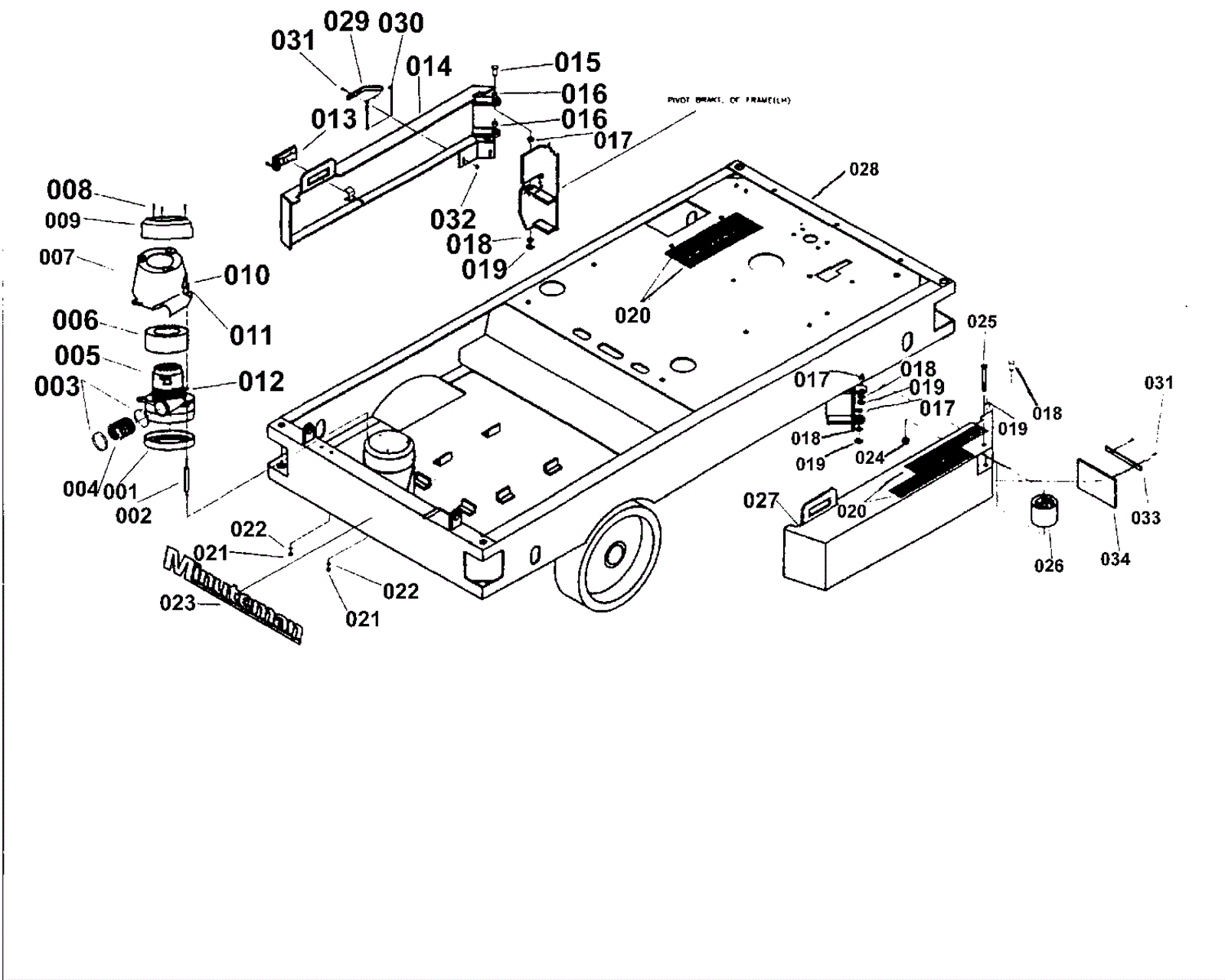

3800 Main Assembly (Part 1)

#PartDescriptionPriceReqNotesAvailability
001a 164-0881 Vacuum motor gasket $13.42 1 ships same day
001b 991-3029 Vacuum motor gasket $2.36 1 (NON-OEM) ships same day
002 174-2550 Vacuum motor stand-off $21.54 3 usually ships 1-5 days
003 997-2003 Hose clamp $2.66 2 ships same day
004 174-2551 Short vacuum motor hose $2.93 1 usually ships 1-5 days
005 174-2577 Vacuum motor assembly $396.92 1 usually ships 1-5 days
006 174-0171 Foam ring $2.57 1 usually ships 4-14 days
007 174-0161 Vacuum motor bottom cover $89.35 1 usually ships 4-14 days
008 174-5991 Screw #10 x 5/8 plated hi/low $0.99 3 usually ships 4-14 days
009 174-0159 Vacuum motor top cover $27.14 1 usually ships 4-14 days
010 999-0190 Nut 1/4-20 hex plain finish $0.99 3 ships same day
011 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
012 174-0262 Spacer $7.63 3 usually ships 4-14 days
013 174-2552 Latch $23.35 2 usually ships 1-5 days
014 N/A Not available Call for price 1 Left hand skirt support weldment usually ships 3-26 days
015 174-0132 Cotter pin $4.38 4 usually ships 4-14 days
016 174-0124 Bushing $2.03 4 usually ships 1-5 days
017 174-0120 Bushing $2.63 4 usually ships 4-14 days
018 999-0855 Washer 9/16 SAE flat $0.99 4 ships same day
019 174-0178 1/2 inch external retaining ring $0.99 4 usually ships 4-14 days
020 174-1825 Anti-skid strip Call for price 4 usually ships 1-5 days
021 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
022 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
023 174-2554 Decal Call for price 1 usually ships 1-5 days
024 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
025 999-0848 Bolt 3/8-16 x 3 1/2 hex head grade 5 plain finish $0.99 1 ships same day
026 174-2555 Roller Call for price 1 usually ships 1-5 days
027 174-2556 Right hand skirt support weldment $197.17 1 usually ships 1-5 days
028 174-2557 Mainframe Call for price 1 usually ships 1-5 days
029 174-2558 Left hand skirt retainer Call for price 1 usually ships 1-5 days
030 174-2559 Left hand skirt $1.20 1 usually ships 1-5 days
031 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 4 ships same day
032a 174-0442 Squeegee blade 43 1/4 inch gum rubber rear (tan) $32.28 4 (OEM) usually ships 4-14 days
032b 994-0034 Squeegee blade 43 inch gum rubber rear (tan) $37.00 4 (NON-OEM) usually ships 3-14 days
033 174-2560 Right hand skirt retainer $1.90 1 usually ships 1-5 days
034 174-2561 Right hand skirt Call for price 1 usually ships 1-5 days
