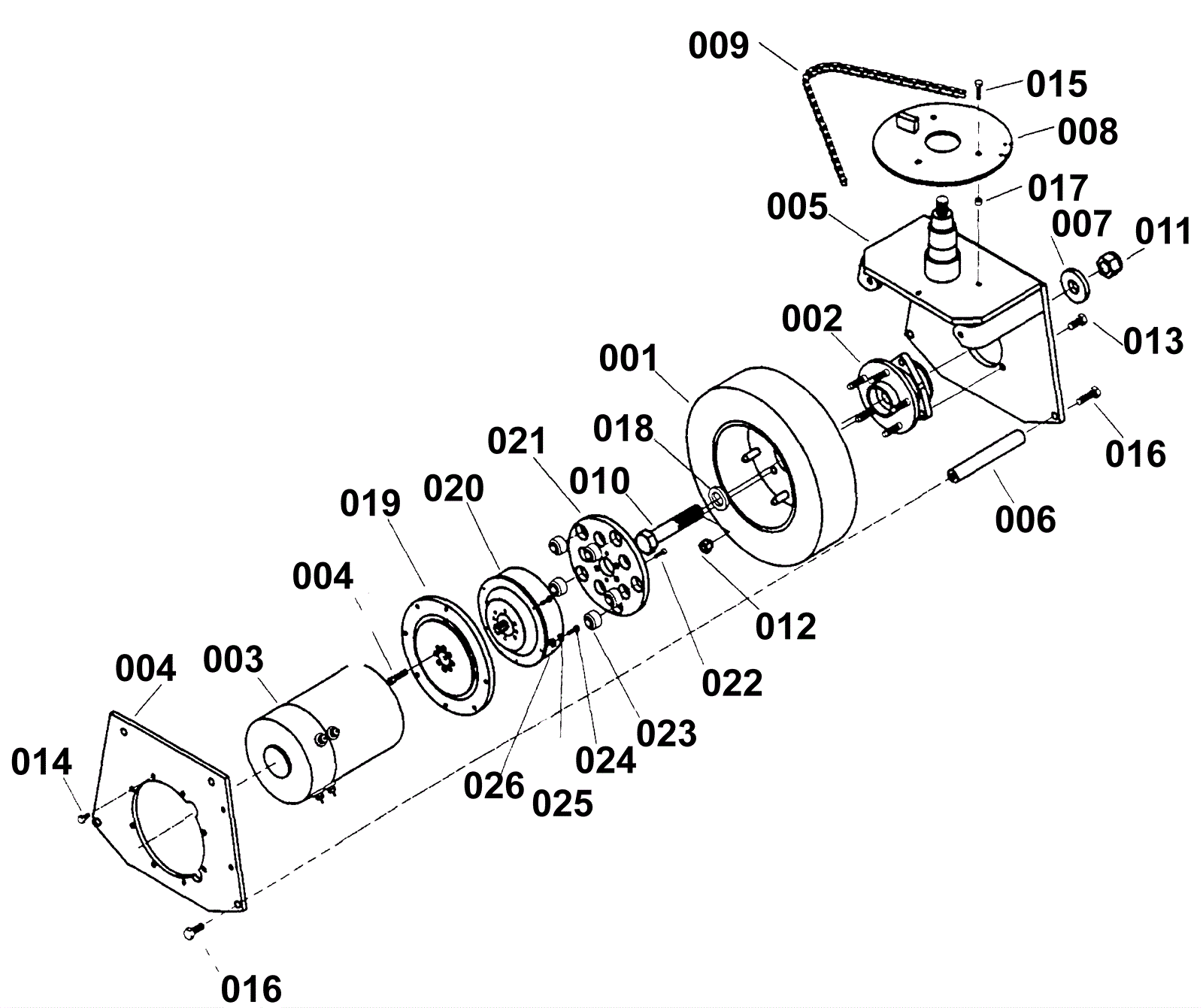

3800 Front Drive Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-2528 Drive wheel $953.12 1 usually ships 1-5 days
002 174-2529 Drive wheel hub (OBSOLETE) Call for price 1 usually ships 1-5 days
003 174-2530 Front drive motor assembly Call for price 1 usually ships 1-5 days
004 174-2531 Screw 5/16 x 24 socket head cap Call for price 6 usually ships 1-5 days
005 174-2532 Front drive wheel weldment $370.57 1 usually ships 1-5 days
006 174-2533 Spacer 1 x 6 13/16 (OBSOLETE) Call for price 2 usually ships 4-14 days
007 174-2534 Spraver 2 1/2 x 1 x 3/8 Call for price 1 usually ships 1-5 days
008 174-2535 Chain disc weldment $146.25 1 usually ships 1-5 days
009 174-2536 Steering chain $25.24 1 usually ships 1-5 days
010 174-2537 Bolt 1 x 5 $12.74 1 usually ships 1-5 days
011 174-2538 Nut 1 nyloc $5.71 1 usually ships 1-5 days
012 174-2539 Lug nut 1/2 x 20 $0.90 5 usually ships 1-5 days
013 174-2540 Bolt M12 x 1 3/4 x 25 mm $1.23 3 usually ships 1-5 days
014 174-2408 Bolt 5/16-18 x 1 #5 hex head $0.95 8 usually ships 1-5 days
015 174-2541 Bolt 5/16 x 18 x 1 1/4 Call for price 3 usually ships 1-5 days
016 999-0116 Bolt 1/2-13 x 1 1/2 hex head grade 5 $1.36 6 ships same day
017 174-0103 Spacer $9.31 3 usually ships 1-5 days
018 174-2543 Spacer 1 3/4 x 1 39/64 $2.39 1 usually ships 1-5 days
019 174-2544 End plate $92.27 1 usually ships 1-5 days
020 174-2545 Gear box $535.35 1 usually ships 1-5 days
021 174-2546 Drive plate Call for price 1 usually ships 1-5 days
022 174-2547 Screw 5/16 x 24 socket head cap Call for price 6 usually ships 1-5 days
023 174-2548 Isolator $19.53 5 usually ships 1-5 days
024 174-2549 Bolt helical 1/4 stainless steel Call for price 4 usually ships 1-5 days
025 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
026 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
