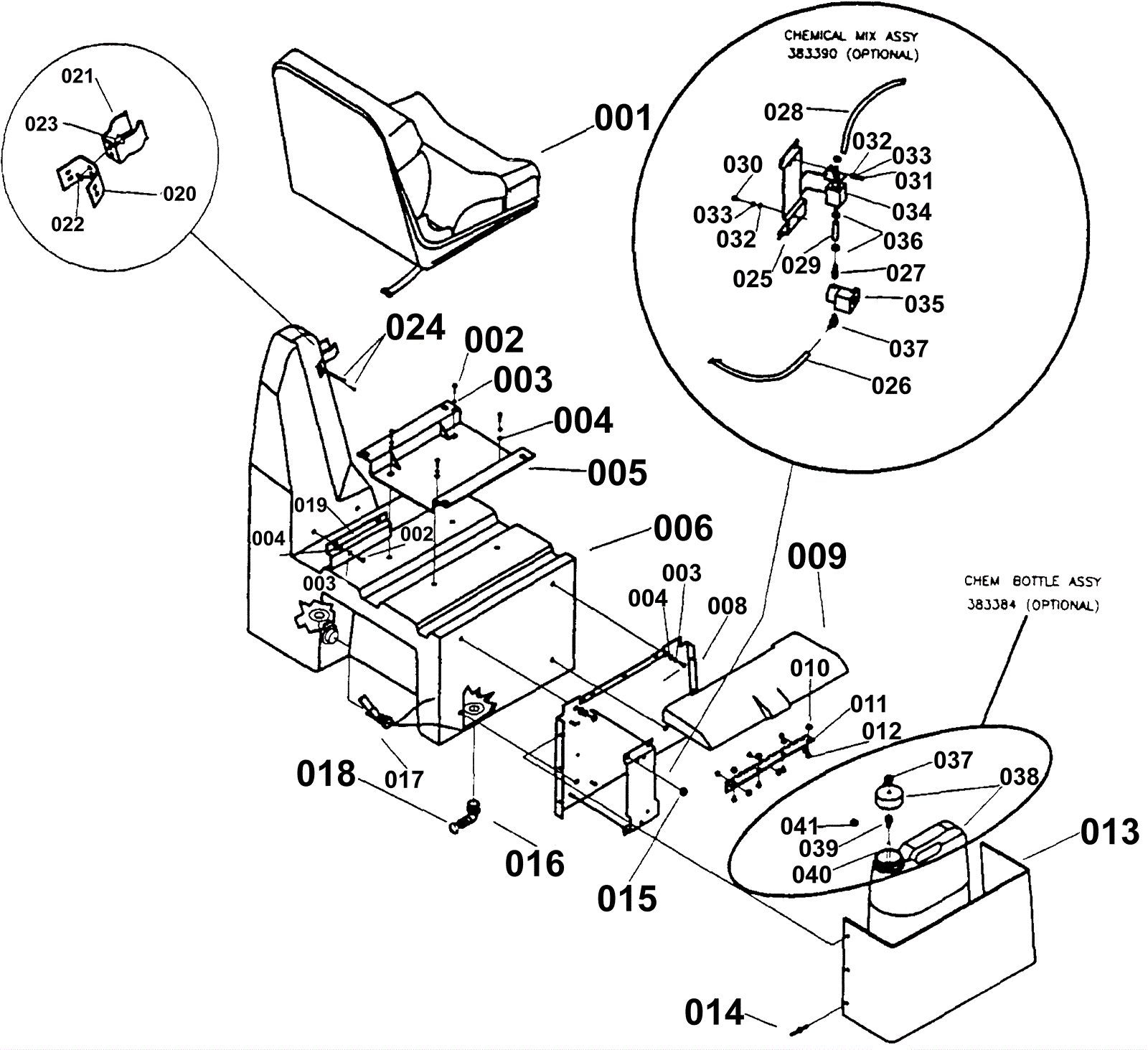

3800 Auxiliary Tank And Components

#PartDescriptionPriceReqNotesAvailability
0.9835 174-2490 Chemical mix assembly Call for price 1 Optional; included with models Mc380002 & MC380003 usually ships 1-5 days
0.9835 174-2851 Chemical bottle assembly Call for price 1 Optional; included with models Mc380002 & MC380003 usually ships 1-5 days
001 174-2467 Seat $426.47 1 usually ships 1-5 days
002 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
003 999-0060 Washer 1/4 split lock plain finish $0.99 8 ships same day
004 999-0016 Washer 1/4 flat plain finish $0.99 8 ships same day
005 174-2468 Seat mount $51.82 1 usually ships 1-5 days
006 174-2469 Auxiliary tank $194.56 1 usually ships 1-5 days
007 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 4 usually ships 1-5 days
009 174-2470 Chemical mix cover $74.50 1 usually ships 1-5 days
010 174-3171 Nut 10-24 flange wizz $1.20 7 usually ships 4-14 days
011 174-0067 Hinge $25.30 1 usually ships 1-5 days
012 174-6202 Screw 10-24 x .37 $0.97 7 usually ships 1-5 days
013 174-2471 Chemical mix enclosure Call for price 1 usually ships 1-5 days
014 174-2209 Pop rivet $0.97 6 usually ships 4-14 days
015 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 2 ships same day
016 174-5891 Elbow 3/4 x 3/4 barb pp $2.66 1 usually ships 1-5 days
017 174-2472 Float switch $106.51 1 usually ships 1-5 days
018 174-2473 Clamp crimp 3/4 $0.90 1 usually ships 1-5 days
019 174-2474 Battery cable cover Call for price 1 usually ships 1-5 days
020 174-2475 Off-aisle bracket $2.32 1 usually ships 1-5 days
021 174-2476 Spring clip $4.66 1 usually ships 1-5 days
022 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
023 174-0824 Rivet $0.97 2 usually ships 1-5 days
024 174-5991 Screw #10 x 5/8 plated hi/low $0.99 4 usually ships 4-14 days
025 174-2477 Chemical pump bracket $22.50 1 usually ships 1-5 days
026 174-2478 Hose 1/4 x 6 3/4 long $2.39 1 usually ships 1-5 days
027 174-2479 Brass 1/4 barb x 1/8 mpt $1.60 1 usually ships 1-5 days
028 174-2480 Hose 1/4 x 6 3/4 inch long Call for price 1 usually ships 1-5 days
029 174-2481 Hose 1/4 x 2 inch long Call for price 1 usually ships 1-5 days
030 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
031 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 2 ships same day
032 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
033 174-5259 Washer #10 helical $0.97 4 usually ships 4-14 days
034 174-2482 Chemical meter pump $483.59 1 usually ships 1-5 days
035 174-2483 Solenoid 36 volt $64.49 1 usually ships 1-5 days
036 997-2001 Hose clamp $2.42 3 ships same day
037 174-2484 Fitting brass 90 1/8 mpt x 1/4 barb $1.02 2 usually ships 1-5 days
038 174-2485 Chemical bottle Call for price 1 usually ships 1-5 days
039 174-2479 Brass 1/4 barb x 1/8 mpt $1.60 1 usually ships 1-5 days
040 174-2487 Tube 1/4 id x 10 1/4 pp $0.90 1 usually ships 1-5 days
041 174-2488 Worm clamp $1.61 1 usually ships 1-5 days
