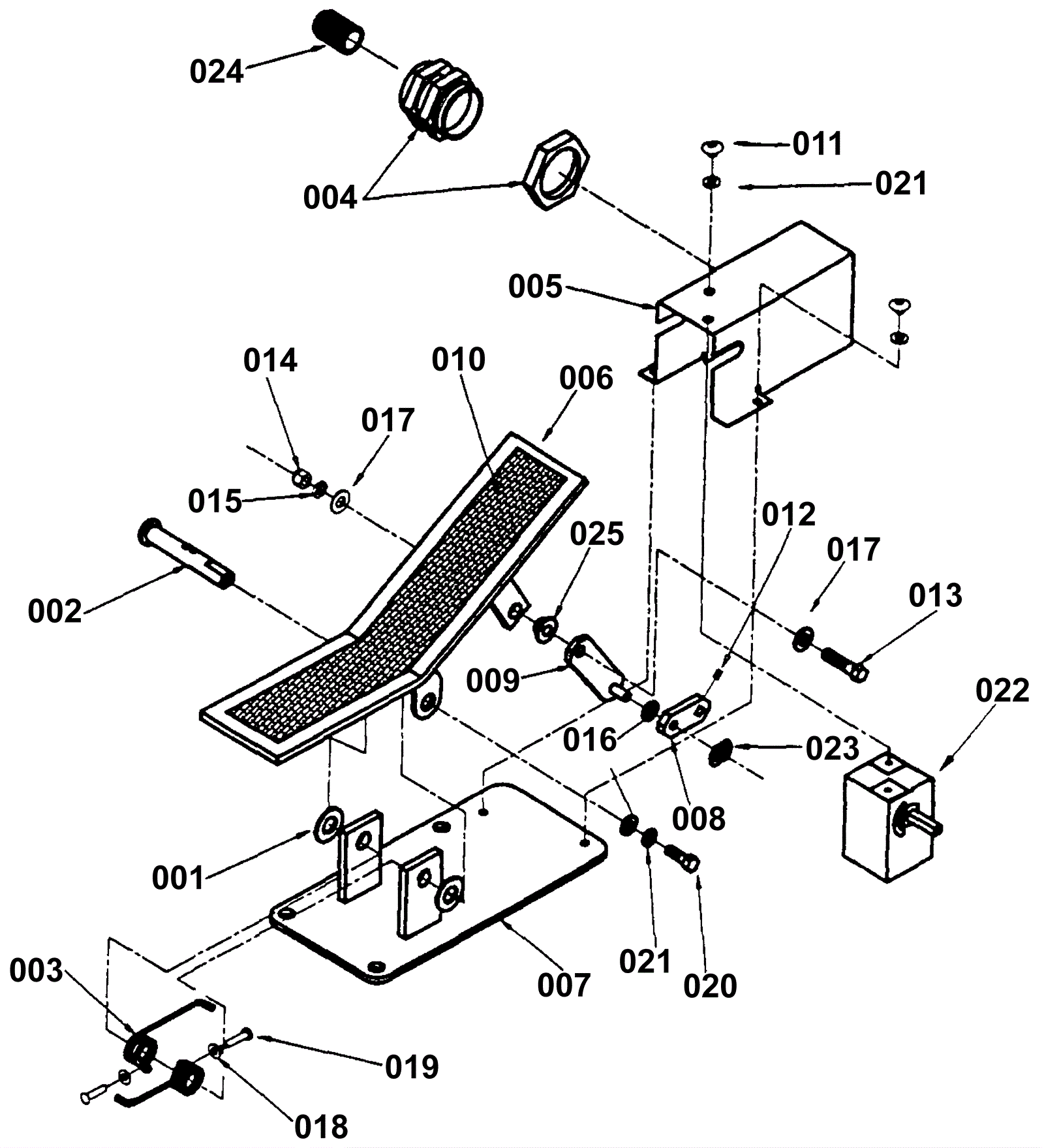

3800 Accelerator Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-1170 Washer oilite (OBSOLETE) Call for price 2 usually ships 4-14 days
002 174-0279 Swivel pin $51.79 1 usually ships 4-14 days
003 174-0280 Torsion spring stainless steel $6.35 2 ships same day
004 174-0429 Liquid tight fitting $5.69 1 usually ships 1-5 days
005 174-1820 Switch cover $14.99 1 usually ships 4-14 days
006 174-1821 Pedal weldment $30.72 1 usually ships 1-5 days
007 174-1822 Mounting plate $39.31 1 usually ships 1-5 days
008 174-1823 Throttle bar $10.33 1 usually ships 1-5 days
009 174-1824 Accelerator bar weldment $13.90 1 usually ships 1-5 days
010 174-1825 Anti-skid strip Call for price 1 usually ships 1-5 days
011 999-0068 Screw 10-32 x 1/4 round head slotted zinc plated $0.99 4 ships same day
012 174-6426 Screw10-32 x 1/4 set knurled point $1.20 1 usually ships 1-5 days
013 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 1 ships same day
014 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
015 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
016 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
017 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
018 174-0532 Washer 7/32 x 3/64 nylon $0.97 2 usually ships 4-14 days
019 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 2 ships same day
020 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 ships same day
021 999-0632 Washer 1/4 split lock stainless steel $0.99 5 ships same day
022 174-0645 Throttle assembly (electronic part) $611.67 1 usually ships 1-5 days
023 174-1584 Speed nut $0.97 1 usually ships 1-5 days
024 174-1826 Heycoflex conduit $169.88 1 usually ships 1-5 days
025 174-3040 Nylon flanged bushing $4.23 1 usually ships 4-14 days
