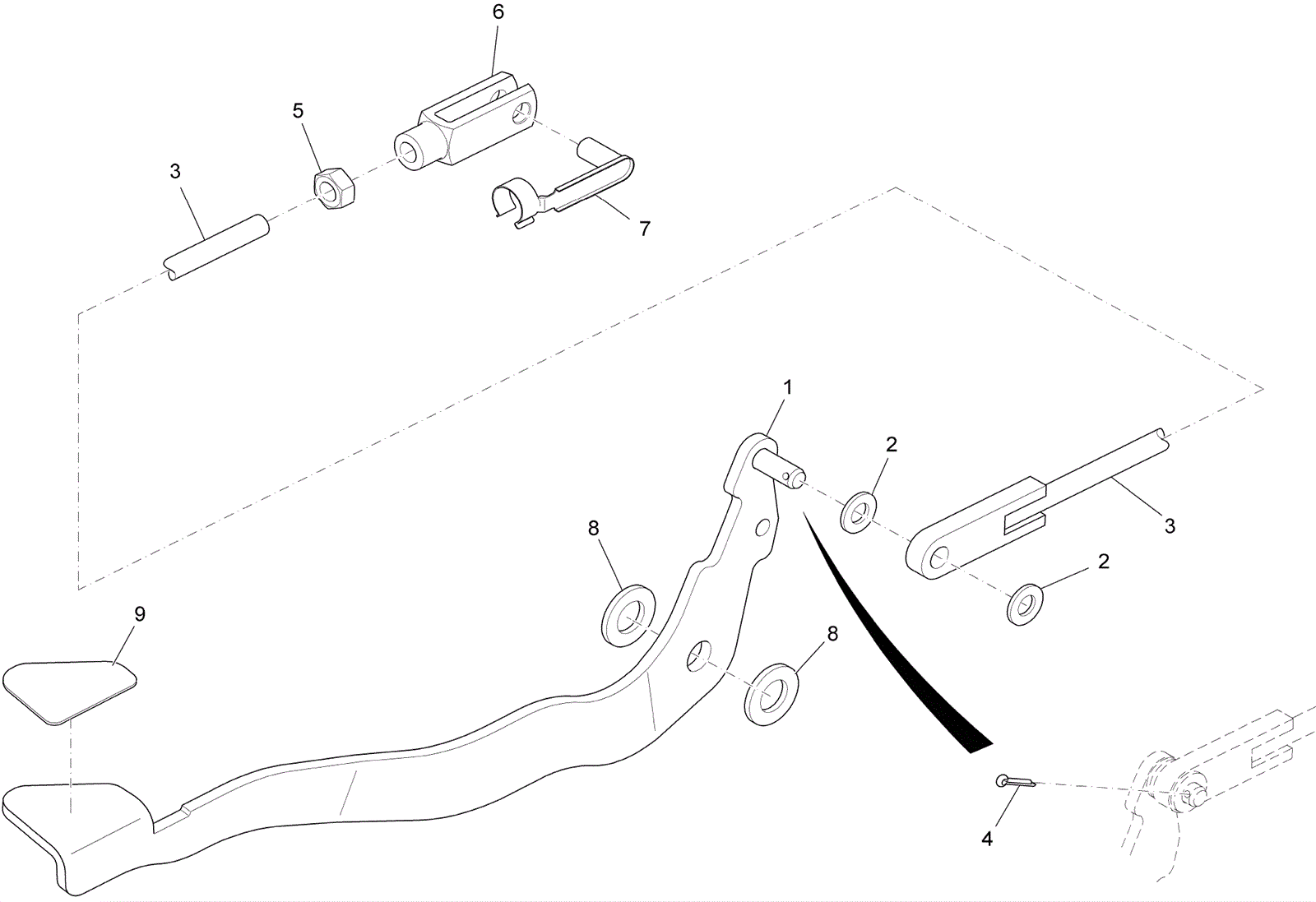

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-8887
|
Lifting pedal |
1 |
|
|
2 |
174-8888
|
Washer |
2 |
|
|
3 |
174-8889
|
Rod weldment |
1 |
|
|
4 |
174-8890
|
Cotter pin |
1 |
|
|
5 |
999-1428
|
Nut M10-1.5 hex zinc finish |
1 |
|
|
6 |
174-9653
|
Clevis yoke |
1 |
|
|
7 |
174-9663
|
S-bolt |
1 |
|
|
8 |
174-9619
|
Rubber washer |
2 |
|
|
9 |
174-9654
|
Anti-slip pedal decal |
1 |
|
|
