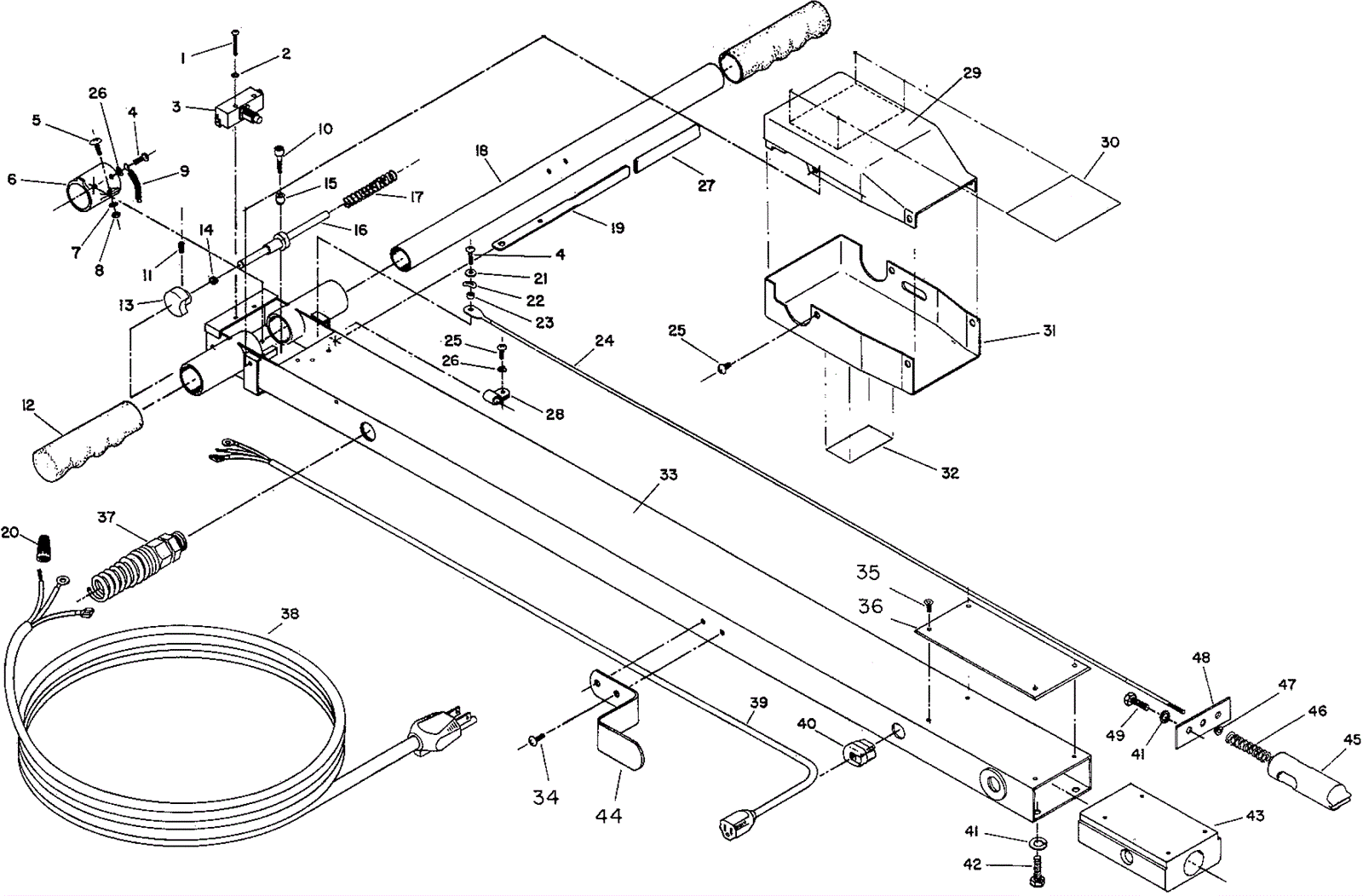

M-20140-00 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 2 ships same day
2 174-5232 Washer #6 internal tooth locking $0.97 2 usually ships 4-14 days
3 174-4024 Switch $24.53 1 usually ships 4-14 days
4 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated $0.99 3 ships same day
5 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated $0.99 1 ships same day
6 274-4755 CSTG-HANDLE LOCK TAPPED $12.54 1 usually ships 1-5 days
7 999-0089 Washer #10 internal star lock zinc plated $0.99 1 ships same day
8 999-0460 Nut 10-32 hex $0.99 1 ships same day
9 174-5235 Spring $3.63 1 usually ships 4-14 days
10 174-5160 Bolt 1/4-20 x .44 x 3/8 shoulder $0.86 1 ships same day
11 999-1038 Screw 8-32 x 1/8 cup point socket set $0.99 1 usually ships 1-5 days
12 174-5206 Handle Grip $3.26 2 usually ships 1-5 days
13 274-1559 BUTTON $7.61 1 usually ships 1-5 days
14 374-1884 BUSHING-SNAPIN NYLINER $1.27 1 usually ships 1-5 days
15 174-0790 Spacer $2.53 1 usually ships 1-5 days
16 174-3812 Switch pin Call for price 1 usually ships 4-14 days
17 174-3813 Spring Call for price 1 usually ships 4-14 days
18 274-4621 TUBE,HANDLE $18.75 1 usually ships 1-5 days
19 174-3814 Handle release lever Call for price 1 usually ships 4-14 days
20 174-4023 Wire cap $1.55 2 usually ships 4-14 days
21 999-0006 Washer 3/16 flat zinc plated $0.99 1 ships same day
22 174-3815 Wave washer 1/4 Call for price 1 usually ships 4-14 days
23 174-3816 Bushing Call for price 1 usually ships 4-14 days
24 274-3321 CABLE $7.45 1 usually ships 1-5 days
26 174-5259 Washer #10 helical $0.97 2 usually ships 4-14 days
27 174-3817 Lever grip Call for price 1 usually ships 4-14 days
28 174-3055 3/8 inch plastic clamp $0.81 1 usually ships 4-14 days
29 174-3818 Rear box cover Call for price 1 usually ships 4-14 days
30 274-0291 DECAL-VAC LEAD $3.35 1 usually ships 1-5 days
31 274-4169 COVER, SW BOX FRONT $25.84 1 usually ships 1-5 days
32 N/A Not available Call for price 1 (logo decal) usually ships 3-26 days
33 174-3819 Handle tube weldment Call for price 1 usually ships 4-14 days
34 174-2286 Screw 10 x 1/2 $0.97 2 usually ships 1-5 days
35 999-0569 Screw 10 x 1/2 pan head phillips sheet metal $0.99 4 ships same day
36 174-3820 Stair glide Call for price 1 usually ships 4-14 days
37 174-4012 Strain relief $37.88 1 usually ships 4-14 days
38a 174-4020 14/3 power cord 50 foot $153.95 1 (OEM) usually ships 4-14 days
38b 991-5005 14/3 replacement power cord 50 foot (yellow) $86.81 1 (NON-OEM) ships same day
38c 991-5001 14/3 extension cord 50 foot (yellow) $82.58 1 (NON-OEM) ships same day
39 174-4060 Interconnect cord $43.72 1 usually ships 1-5 days
40 174-5242 Heyco Bushing $1.18 1 usually ships 1-5 days
41 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
42 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 4 usually ships 1-5 days
43 174-3821 Handle lock guide Call for price 1 usually ships 4-14 days
44 174-3822 Cord hook Call for price 1 usually ships 4-14 days
45 274-5982 LOCK,HANDLE $56.77 1 usually ships 1-5 days
46 374-1874 SPRING-COMP $1.23 1 usually ships 1-5 days
47 374-1873 BUSHING-FLG .251 X .438 X .078 $0.90 1 usually ships 1-5 days
48 174-3823 Retainer Call for price 1 usually ships 4-14 days
49 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
