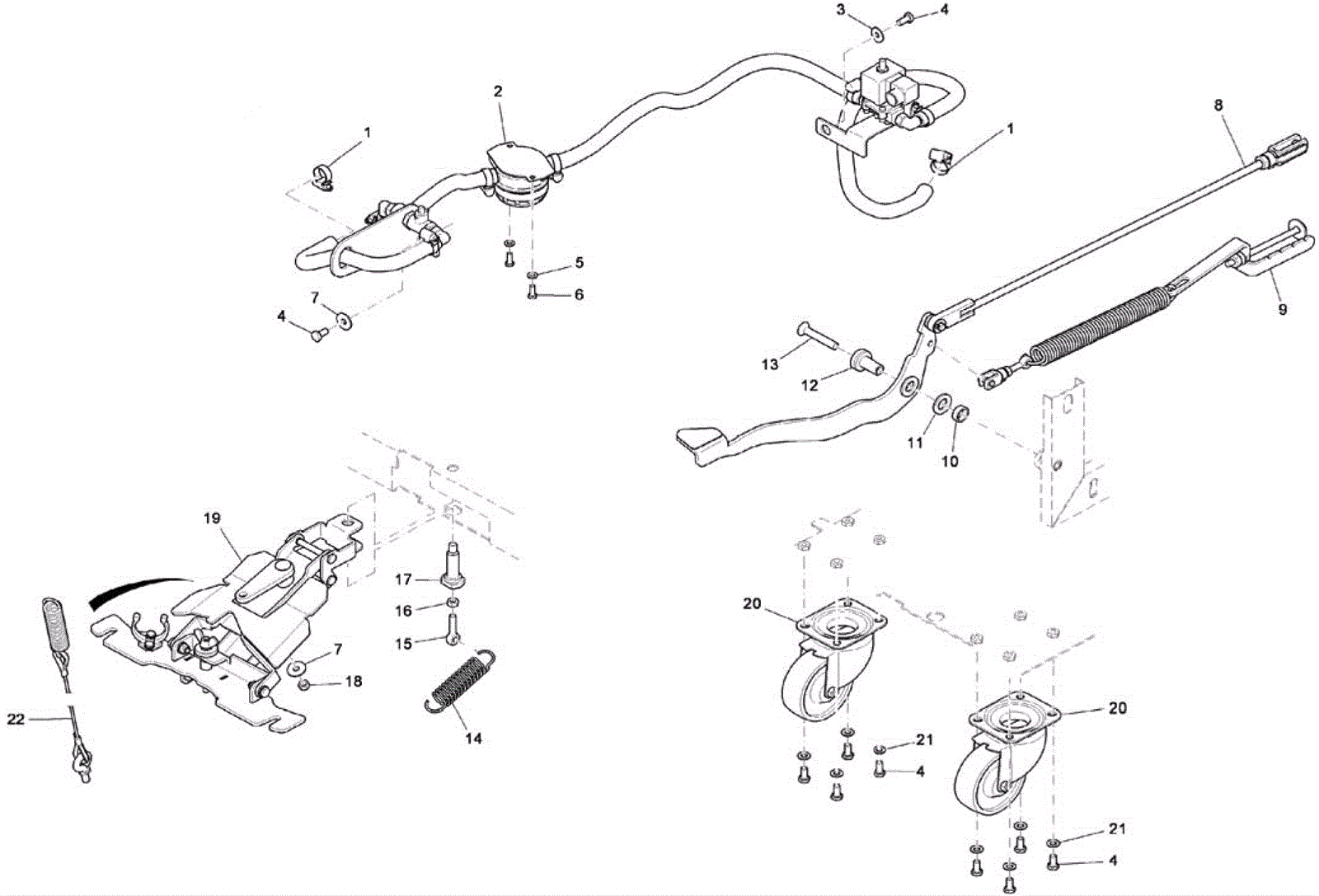

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-1628
|
Hose clamp |
2 |
|
|
2 |
174-9436
|
Water supply |
1 |
|
|
3 |
999-9097
|
Washer M8 flat stainless steel |
1 |
|
|
4 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
2 |
|
|
5 |
999-1261
|
Washer M6 flat stainless steel |
2 |
|
|
6 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
7 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
8 |
274-4240
|
LIFTING PEDAL, COMPL. |
1 |
|
|
9 |
274-5494
|
PRESSURE ADJUSTMENT ASSY |
1 |
|
|
10 |
174-9657
|
Spacer |
1 |
|
|
11 |
174-9621
|
Washer M17 flat |
1 |
|
|
12 |
174-9658
|
Pedal pivot bushing |
1 |
|
|
13 |
174-9641
|
Screw M10-1.5 x 60mm flat head |
1 |
|
|
14 |
174-9659
|
Tension spring |
1 |
|
|
15 |
174-9664
|
Eye bolt |
1 |
|
|
16 |
999-1424
|
Nut M8-1.25 hex stainless steel |
1 |
|
|
17 |
174-9660
|
Pivot |
1 |
|
|
18 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
19 |
174-3504
|
Connection bracket |
1 |
|
|
20 |
174-9661
|
Caster |
2 |
|
|
21 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
22 |
174-9669
|
Squeegee lift cable |
1 |
|
|
