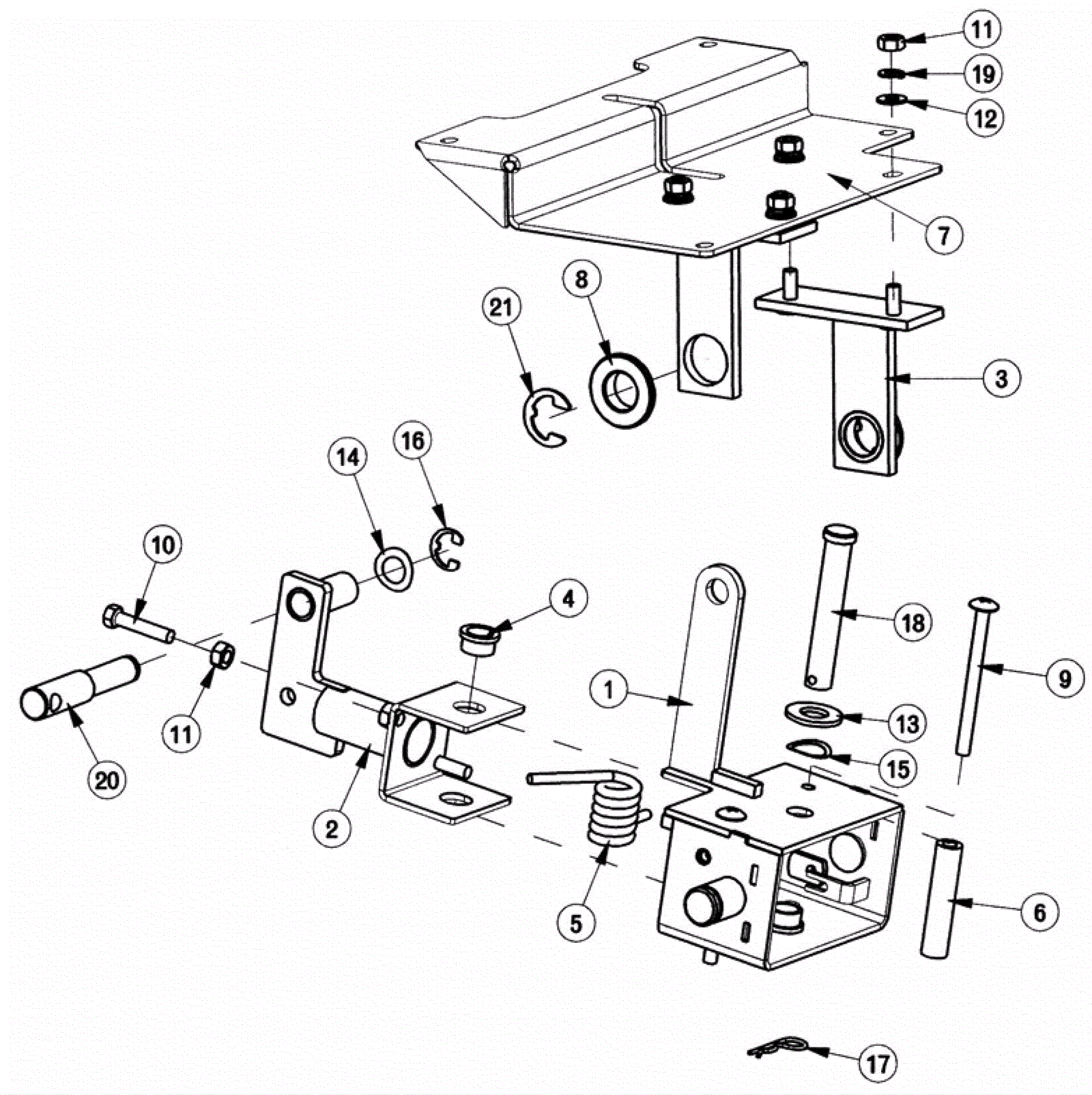

# | Part | Description | Price | Req | Notes | Availability |
1 |
174-8815
|
Squeegee yoke bracket assembly |
$227.75
|
1 |
|
usually ships 1-5 days |
2 |
174-8816
|
Rear squeegee yoke |
$90.66
|
1 |
|
usually ships 1-5 days |
3 |
274-3682
|
BRACKET ASSY-SQUEEGEE MECH ATTACHMENT |
$58.75
|
2 |
|
usually ships 1-5 days |
4 |
174-0120
|
Bushing |
$2.63
|
2 |
|
usually ships 4-14 days |
5 |
174-9025
|
Torsion spring |
$9.31
|
1 |
|
usually ships 1-5 days |
6 |
174-8818
|
Mechanism stop tube |
$5.52
|
2 |
|
usually ships 1-5 days |
7 |
174-8819
|
Squeegee attachment plate |
$58.32
|
1 |
|
usually ships 1-5 days |
8 |
174-5950
|
Oilite flanged bearing |
$3.61
|
2 |
|
usually ships 1-5 days |
9 |
999-0621
|
Screw 1/4-20 x 3 truss head slotted stainless steel |
$5.79
|
2 |
|
ships same day |
10 |
999-0136
|
Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated |
$0.99
|
2 |
|
ships same day |
11 |
999-0190
|
Nut 1/4-20 hex plain finish |
$0.99
|
6 |
|
ships same day |
12 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
4 |
|
ships same day |
13 |
999-0187
|
Washer 1/2 flat plain finish |
$0.99
|
1 |
|
ships same day |
14 |
174-5159
|
Washer 33/64 x 1/64 wave |
$0.99
|
1 |
|
usually ships 4-14 days |
15 |
174-5229
|
Washer 5/8 .65 x .86 x .01 wave |
$0.97
|
1 |
|
usually ships 1-5 days |
16 |
174-0178
|
1/2 inch external retaining ring |
$0.99
|
1 |
|
usually ships 4-14 days |
17 |
174-0201
|
Cotter pin |
$1.20
|
1 |
|
usually ships 4-14 days |
18 |
174-9027
|
Clevis pin |
$3.53
|
1 |
|
usually ships 1-5 days |
19 |
999-0632
|
Washer 1/4 split lock stainless steel |
$0.99
|
4 |
|
ships same day |
20 |
174-8820
|
Adjusting pin |
$35.19
|
1 |
|
usually ships 1-5 days |
21 |
174-5728
|
Retaining ring |
$1.06
|
2 |
|
usually ships 4-14 days |
