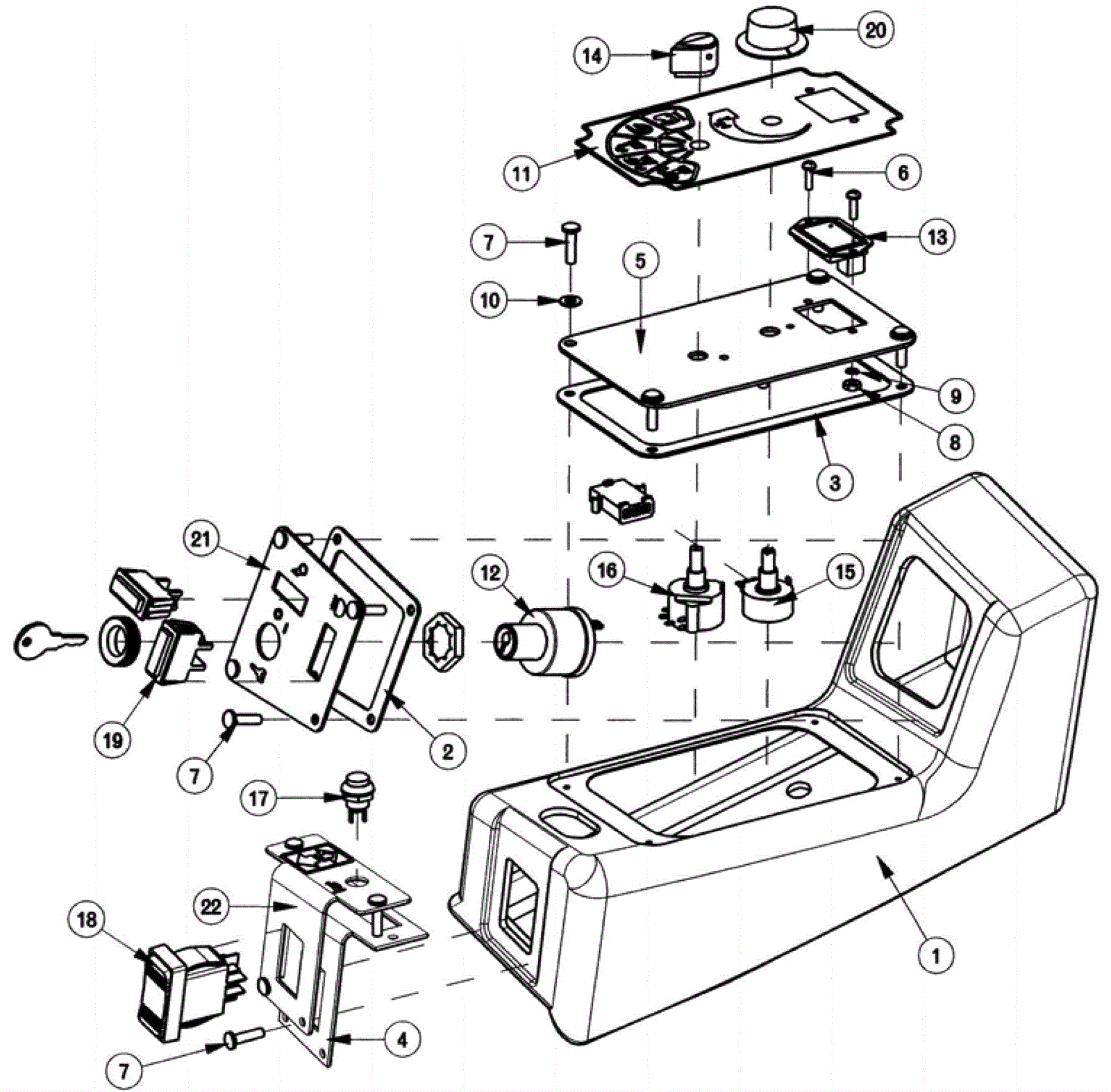

POWERBOSS SCV28 Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8749 Console $148.84 1 usually ships 1-5 days
2 174-8772 Gasket $4.96 1 usually ships 1-5 days
3 174-8773 Gasket $5.34 1 usually ships 1-5 days
4 174-8774 Gasket $5.25 1 usually ships 1-5 days
5 174-8775 Switch bracket $19.19 1 usually ships 1-5 days
6 999-0382 Screw 6-32 x 1/2 pan head slotted zinc plated $0.99 2 ships same day
7 174-2289 Screw 10 x 5/8 hi/lo $2.11 12 usually ships 9-13 days
8 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
9 174-6331 Washer #6 helical steel plated $1.08 2 usually ships 1-5 days
10 174-0532 Washer 7/32 x 3/64 nylon $1.08 4 usually ships 9-13 days
11 174-8776 Controls label $14.30 1 usually ships 1-5 days
12 174-8086 2 pole key switch $95.92 1 usually ships 9-13 days
13 174-6332 True charge 36v battery gauge assembly $80.99 1 usually ships 9-13 days
14 174-6333 Knob-mode selector $20.39 1 usually ships 1-5 days
15 174-6334 Water low potentiometer assembly $71.44 1 usually ships 1-5 days
16 174-6336 Mode selector switch assembly $131.61 1 usually ships 9-13 days
17 174-8777 Horn switch $37.72 1 usually ships 1-5 days
18 174-8778 Forward/reverse switch $35.61 1 usually ships 9-13 days
19 174-8779 Blank switch $3.70 2 usually ships 1-5 days
20 174-0259 Knob $8.88 1 usually ships 9-13 days
21 174-8780 Ignition switch panel Call for price 1 usually ships 1-5 days
22 174-8781 Direction control panel $24.27 1 usually ships 1-5 days
