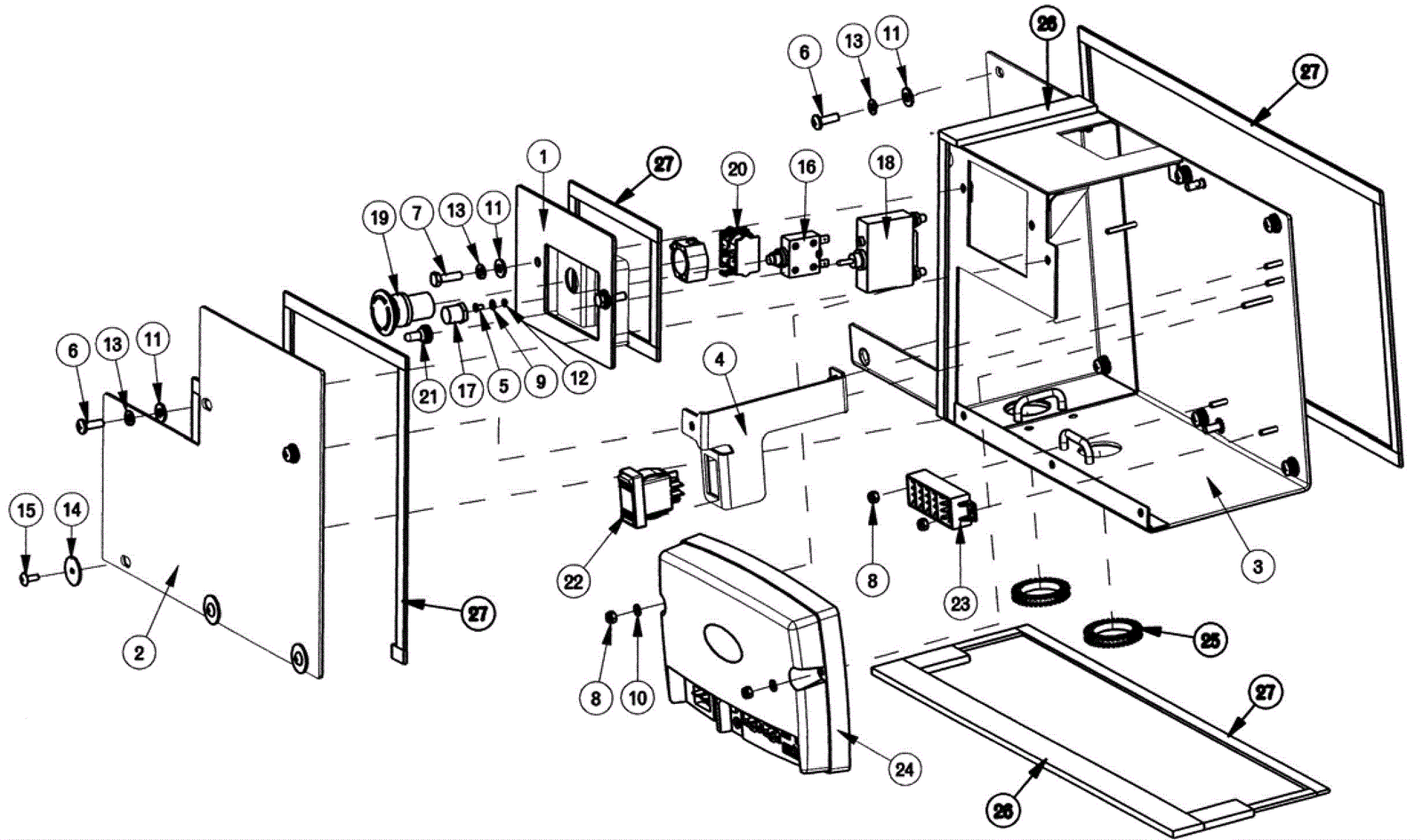

POWERBOSS SCV28 Electrical Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8762 E-stop weldment $36.77 1 usually ships 1-5 days
2 174-8763 Electrical cover panel $34.27 1 usually ships 1-5 days
3 174-8764 Electrical panel weldment Call for price 1 usually ships 1-5 days
4 174-8765 Support bracket $22.01 1 usually ships 1-5 days
5 999-0418 Screw 6-32 x 1/4 pan head slotted zinc plated $0.99 1 ships same day
6 999-0415 Screw 1/4-20 x 3/4 pan head slotted zinc plated $0.99 10 ships same day
7 174-6289 Bolt 1/4-20 x 7/8 hex head steel plated $0.97 2 usually ships 1-5 days
8 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 6 ships same day
9 174-5230 Washer #6 flat $1.20 1 usually ships 4-14 days
10 999-0412 Washer #8 SAE flat $0.99 4 ships same day
11 999-0016 Washer 1/4 flat plain finish $0.99 12 ships same day
12 174-6331 Washer #6 helical steel plated $0.97 1 usually ships 1-5 days
13 999-0060 Washer 1/4 split lock plain finish $0.99 12 ships same day
14 174-2224 Washer flat $1.66 3 usually ships 1-5 days
15 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 3 ships same day
16 174-8766 6amp circuit breaker $24.31 1 usually ships 1-5 days
17 174-5824 Circuit breaker boot $4.76 1 usually ships 4-14 days
18 174-6302 100amp circuit breaker $89.56 1 usually ships 4-14 days
19 174-8767 Emergency button actuator $70.39 1 usually ships 4-14 days
20 174-8768 Contact block $39.56 1 usually ships 4-14 days
21 174-6310 Circuit breaker boot $9.04 1 usually ships 1-5 days
22 174-8769 On/off switch $37.94 1 usually ships 4-14 days
23 174-8770 Terminal block $22.28 1 usually ships 1-5 days
24 174-8125 36V Trio plus controller $1,215.63 1 usually ships 1-5 days
25 174-8771 Serrated grommet strip $2.05 2 usually ships 1-5 days
26 174-1495 Gasket $23.19 3 usually ships 4-14 days
27 174-6330 Dortite 1/2 $1.24 12 usually ships 1-5 days
