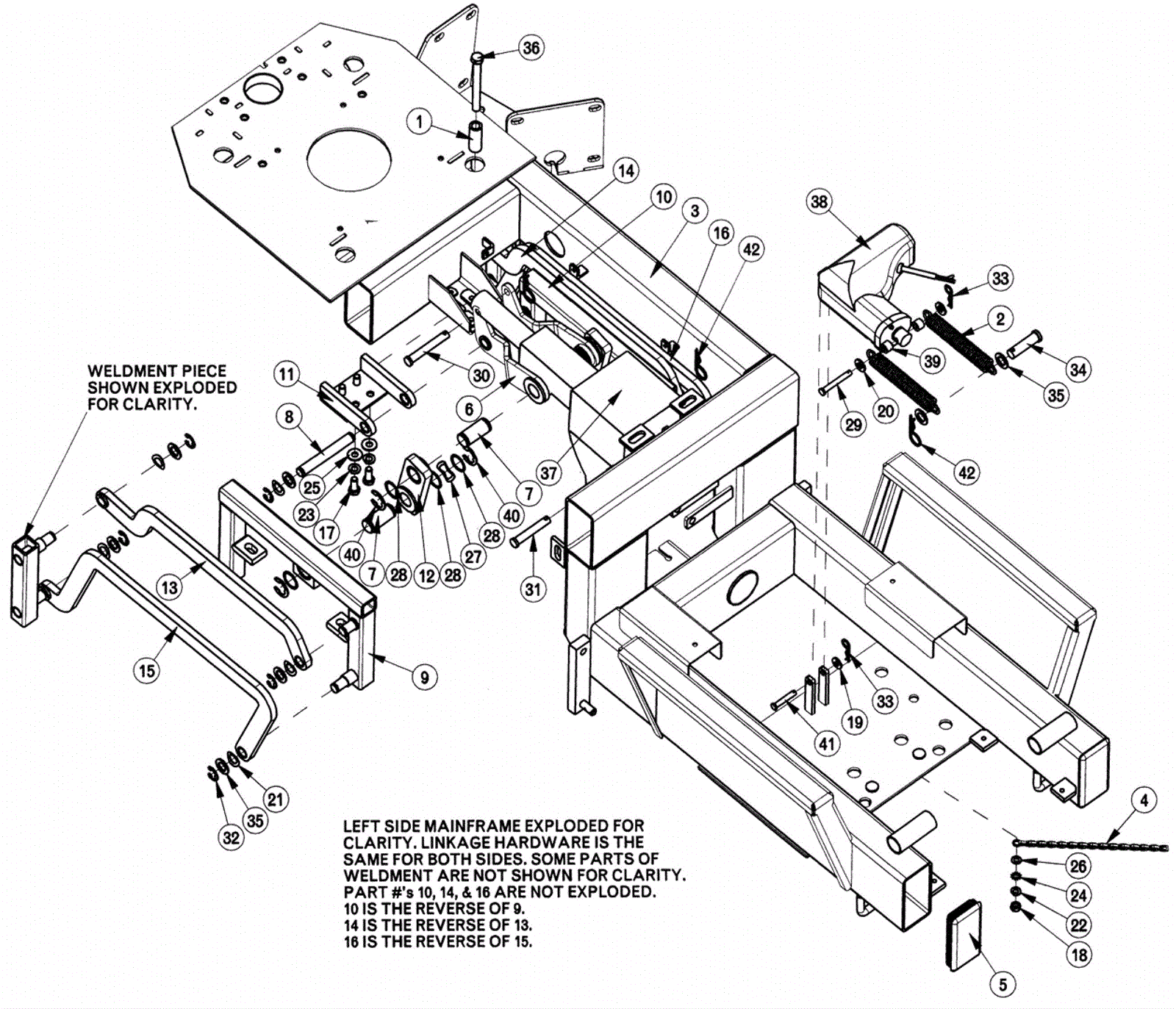

POWERBOSS SCV28 Main Frame Assembly 2

#PartDescriptionPriceReqNotesAvailability
1 174-1405 Yoke bushing $2.69 1 usually ships 1-5 days
2 174-8152 Spring $11.80 2 usually ships 12-16 days
3 174-8694 Mainframe weldment Call for price 1 usually ships 1-5 days
4 174-8708 Frame drag chain assembly $13.67 1 usually ships 1-5 days
5 174-8709 Endcap $5.46 2 usually ships 1-5 days
6 174-8710 Crank weldment with bushing assembly $76.74 1 usually ships 1-5 days
7 174-8711 Link attachment shaft $6.67 4 usually ships 1-5 days
8 174-8712 Crank pivot shaft $15.59 1 usually ships 1-5 days
9 174-8713 Left lift weldment with bushing assembly $115.05 1 usually ships 1-5 days
10 174-8714 Right lift weldment with bushing assembly $120.77 1 usually ships 1-5 days
11 174-8873 Actuator weldment assembly $61.45 1 usually ships 1-5 days
12 174-8716 Lift link assembly $54.22 2 usually ships 1-5 days
13 174-8717 Left upper link assembly $91.56 1 usually ships 1-5 days
14 174-8718 Right upper link assembly $62.53 1 usually ships 1-5 days
15 274-5947 LOWER LINK ASSY., LEFT $125.00 1 usually ships 1-5 days
16 274-5948 LOWER LINK ASSY., RIGHT $65.45 1 usually ships 1-5 days
17 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 4 usually ships 1-5 days
18 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
19 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
20 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
21 174-5159 Washer 33/64 x 1/64 wave $0.99 10 usually ships 12-16 days
22 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
23 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
24 999-0017 Washer 1/4 external star lock $0.99 1 ships same day
25 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
26 174-2129 Washer .50 x .30 flat $1.33 2 usually ships 1-5 days
27 174-8577 Wave washer $2.63 4 usually ships 1-5 days
28 999-9114 Washer 3/4 flat stainless steel $1.58 12 ships same day
29 174-8151 Clevis pin $2.18 1 usually ships 1-5 days
30 174-8721 Clevis pin $15.94 1 usually ships 1-5 days
31 174-8345 Clevis pin 3/8 x 2 1/4 $1.04 1 usually ships 12-16 days
32 174-0178 1/2 inch external retaining ring $1.10 10 usually ships 12-16 days
33 174-0201 Cotter pin $1.20 2 usually ships 12-16 days
34 174-0347 Clevis pin 1/2 x 1.75 $1.11 1 usually ships 1-5 days
35 174-0528 Washer 33/64 x 7/8 x 1/16 pleated flat $0.97 12 usually ships 12-16 days
36 999-0796 Bolt 3/8-16 x 3 3/4 hex head stainless steel $2.32 1 ships same day
37 174-8874 Deck lift kit $1,981.34 1 usually ships 12-16 days
38 174-7053 Squeegee actuator with weather pack $853.91 1 usually ships 1-5 days
39 174-5184 Bushing .260 x 1/2 x 3/8 $7.46 2 usually ships 1-5 days
40 174-5728 Retaining ring $1.33 8 ships same day
41 174-0792 Clevis pin $0.97 1 usually ships 12-16 days
42 174-0200 Cotter pin $1.20 3 usually ships 12-16 days
